Owner's manual

WXF 118 / WXF 124
Incline/Decline Wave Exit Conveyor
People and Products You Can Rely On
Module: WXF-118 (18W) WXF-124 (24”) Flat Belt Incline/Decline Wave Exit Conveyor
Frame Style:
Combination precision welded steel framing and extruded metal with painted panels
Description:
The incline /decline wave exit conveyor is designed to accept product exiting from a
wave (at a specific height) and deliver the product to the next downstream machine
(at a specific lower height). The flat belt design offers support to the full product.
Standard Features:
 Continuous running belt design
 Stainless Steel Bed
 EDS safe / high temperature belt utilized
 Variable speed (1 - 12 fpm) (.30 – 3.66 mpm) others available
 Belt design offers support of full product
 2” round entrance and exit roller
 Operator controls (E-stop, Reset)
 Left to right travel
 Designed for longevity with minimal maintenance
 Wave exit (product entrance) height onto belt is TBD
 Product exit (entrance into downstream machine) is TBD
 Painted sheet metal panels, “Dynapace White”
 Conforms to NFPA 79
 Available with optional cooling hood (as shown)
Product Handling Capability:

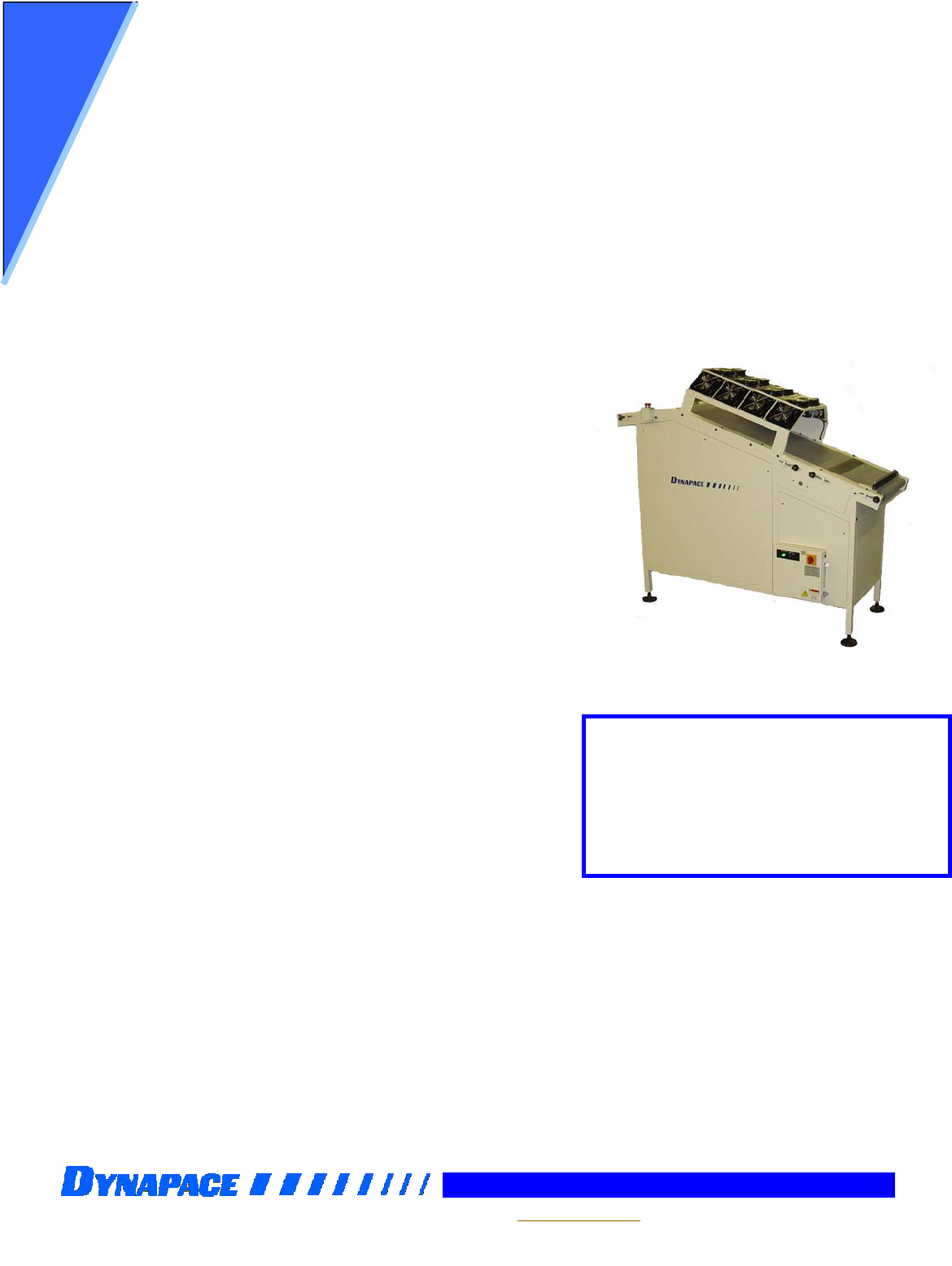

Shown with Optional CFH-16 Cool Hood & Hard Stop
Edge Contact:
N/A
Length:
3” – 20” (76 – 508mm)
Width:
2” – 16” or 22” (51 – 406 or 559mm)
Thickness:
N/A
Options
5/8
th
nose-bar at in feed or out feed
Removable Hard Stop
9, 12, 16, or 18 Cooling Fan Hood
Storage Cabinet w / shelf & 2 drawers
PLC Control
Weight:
Up to 9 lbs (4.08kg) per foot
Above board clearance:
N/A
Below board clearance:
N/A
Facilities Requirements:
Electrical:
115 VAC/60Hz 15 amp
Air:
N/A
Footprint:
Approx. 26-27”W x 60”L
(660 – 685mm W x 1524mm L)
Note: Available in 24-inch (606mm) width belt (22” (559mm) product width capable)
Available in 18-inch (457mm) width belt (16” (406mm) product width capable)
Length may vary in relation to entry and exit height requirements
