Products LCD/DVD ComboTV Quick Setup Guide

Back of TV
Back of TV
Back of TV

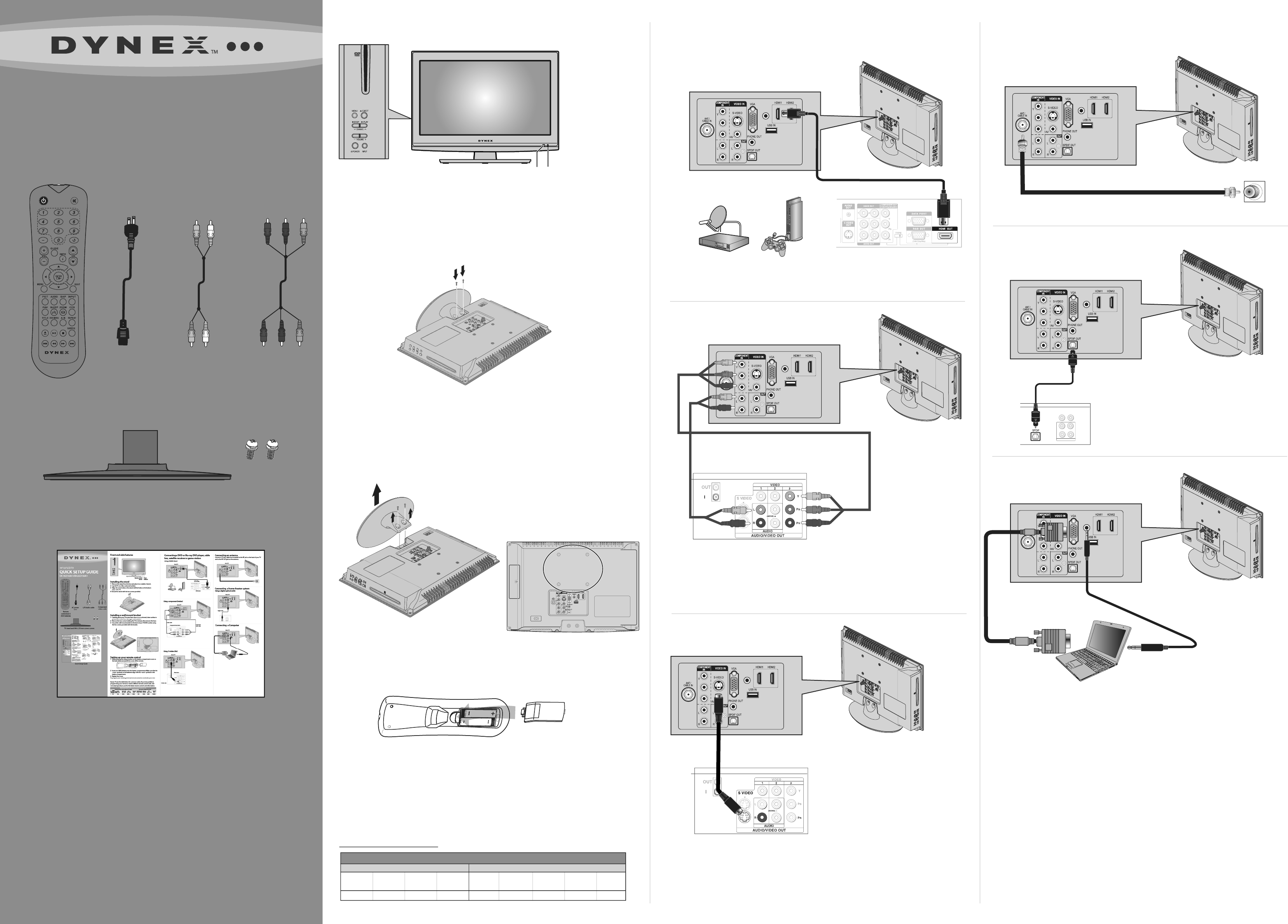

19“/22” LCD/DVD Combo TV
QUICK SETUP GUIDE
DX-19LD150A11/DX-22LD150A11
HDMI cable
(not included)
HDMI device
A
U
DI
O
I
N
Component video device
Component
video cable
Video device
S-video cable
Remote control
and 2 AAA
batteries
Component
video cable
AC power
cord
TV stand and M4 x L18 mm screws
Quick Setup Guide
Back of TV
Back of TV
Back of TV
PB
PR
PB
PR
PB
PR
PB
PR
PB
PR
PC/DVI
AUDIO IN
PB
PR
PC/DVI
AUDIO IN
PC/DVI
AUDIO IN
PC/DVI
AUDIO IN
PC/DVI
AUDIO IN
PC/DVI
AUDIO IN
Front and side features
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Lay the TV on a at, cushioned surface.
3 Align the screw holes on the stand with the holes on the bottom
edge of the TV.
4 Secure the stand with the two screws provided.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the two screws holding the TV to its base, then remove the base.
3 Secure the wall-mount bracket to the back of your TV/DVD combo using
the four screws provided with the bracket.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3 Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a dierent remote control code, visit
www.dynexproducts.com for the latest remote control code information.
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver or game station
Using HDMI (best)
Connecting an antenna
Connect a 75 ohm cable (not included) to the RF jack on the back of your TV
and to the RF OUT jack on the antenna.
Connecting a home theater system
Using a digital optical cable:
Connecting a Computer
Philips
PHDVD5, PH5DSS,
PMDVR8, PDVR8
115
DirectTV
RC23
10463
RCA
RCU807
135
One for All
URC-6690
0464
Sony
RM-VL600
8043
Comcast
M1057
0463
Dish Network
VIP508, VIP622
720
Motorola
DRC800
0463
TIVO
Series 3, HD
0091
Universal remote control makers and models Set-top box makers and models
Using S-video (fair)
Using component (better)
Audio Cable
Digital cable
Remote control
sensor
Power
indicator
L/R Audio cable
Universal remote control TV codes (for all Dynex TVs manufactured after Jan. 1, 2007)
