Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
AIR BRAKE AND EEC KIT
EEC Finger Guards—200i/250i
20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EEC FINGER GUARDS—200I/250I
The EEC finger guards are secured to the drum module hood and provide extra
protection from the drum by regulating the distance between the drum and the
chassis. The placement of the finger guards can be manually adjusted.
Refer to “EEC Finger Guards—200iP/250iP” on page 23 for model 200iP/250iP dynos.
Refer to “Air Brake” on page 3 for air brake installation instructions.
INSTALLING THE EEC FINGER GUARDS
If you are not installing the EEC finger guards skip this section and refer to “Door
Safety Switch” on page 29 for door safety switch installation instructions.
1 Remove the drum module hood. Refer to “Removing the Drum Module Hood,
Side Drum Cover, Center Panel, and Tire Carriage” on page 3.
2 Secure each EEC finger guard to the drum module hood using two
1/4-20 x 5/8-inch pan head screws.

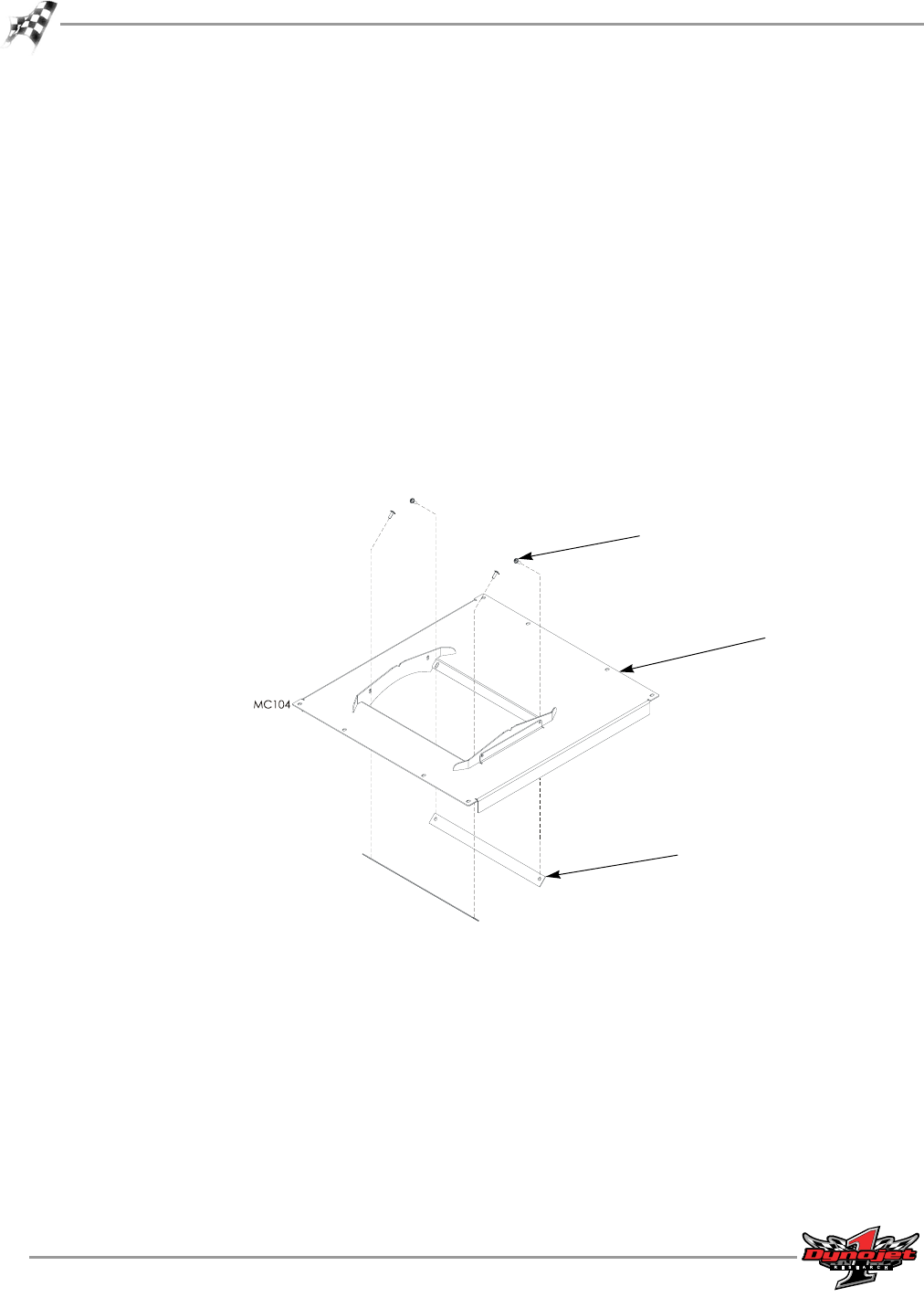

Figure 20: Securing the EEC Finger Guards to the Drum Module Hood
drum module hood
screw
finger guard
