INSTALLATION GUIDE
Air Brake
Version 1 Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
9
6 Remove the two 1/4-20 x 5/8-inch pan head screws securing the upright brace to
the drum module and set aside.
7 Remove the brace and set aside.
Note: For clarity, the pit is not shown.

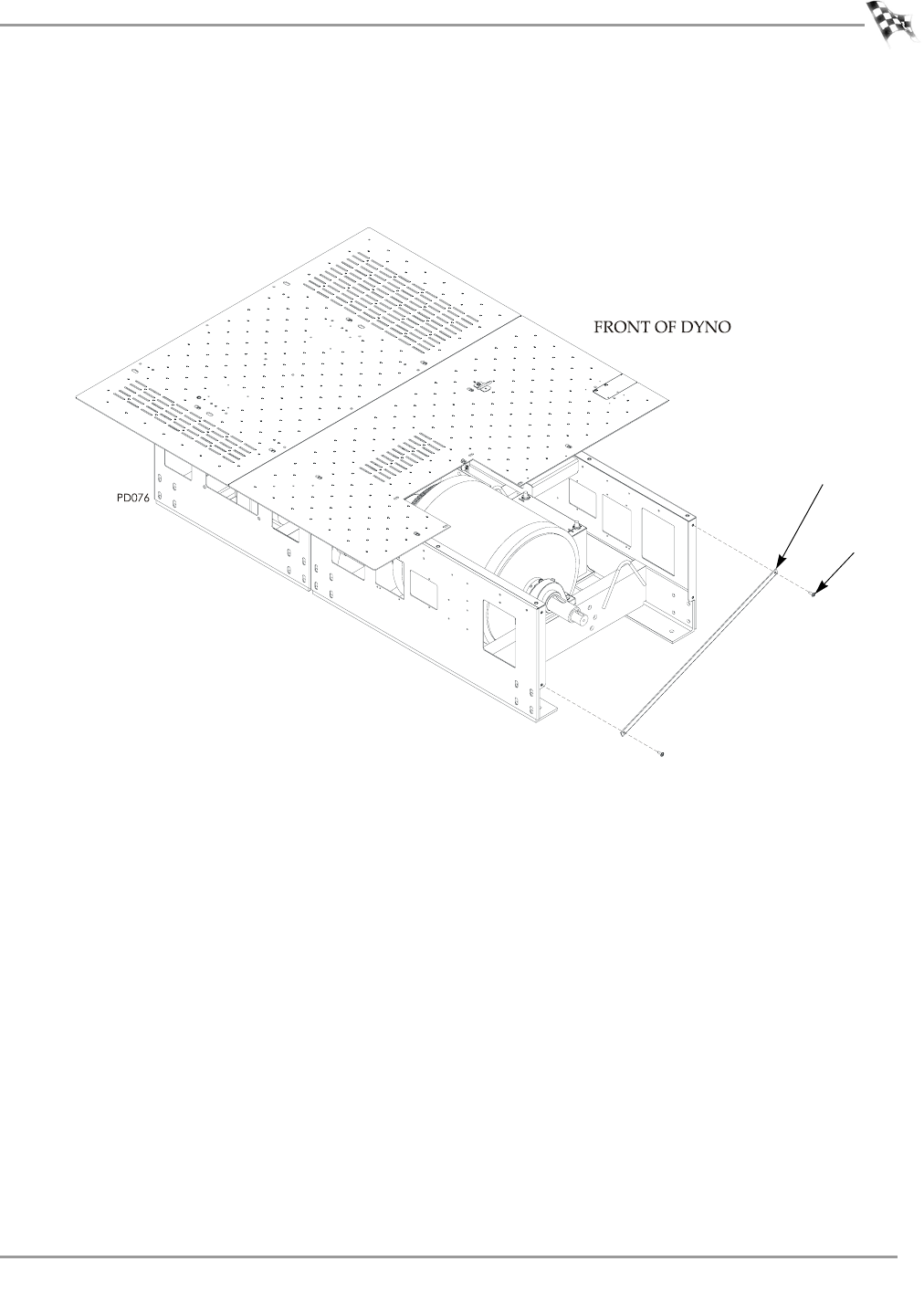

Figure 7: Removing the Upright Brace
upright brace
screw
