Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
AIR BRAKE AND EEC KIT
Air Brake
12
8 Secure the brake assembly with two clevis pins.
8a Push the top clevis pin through the front of the assembly.

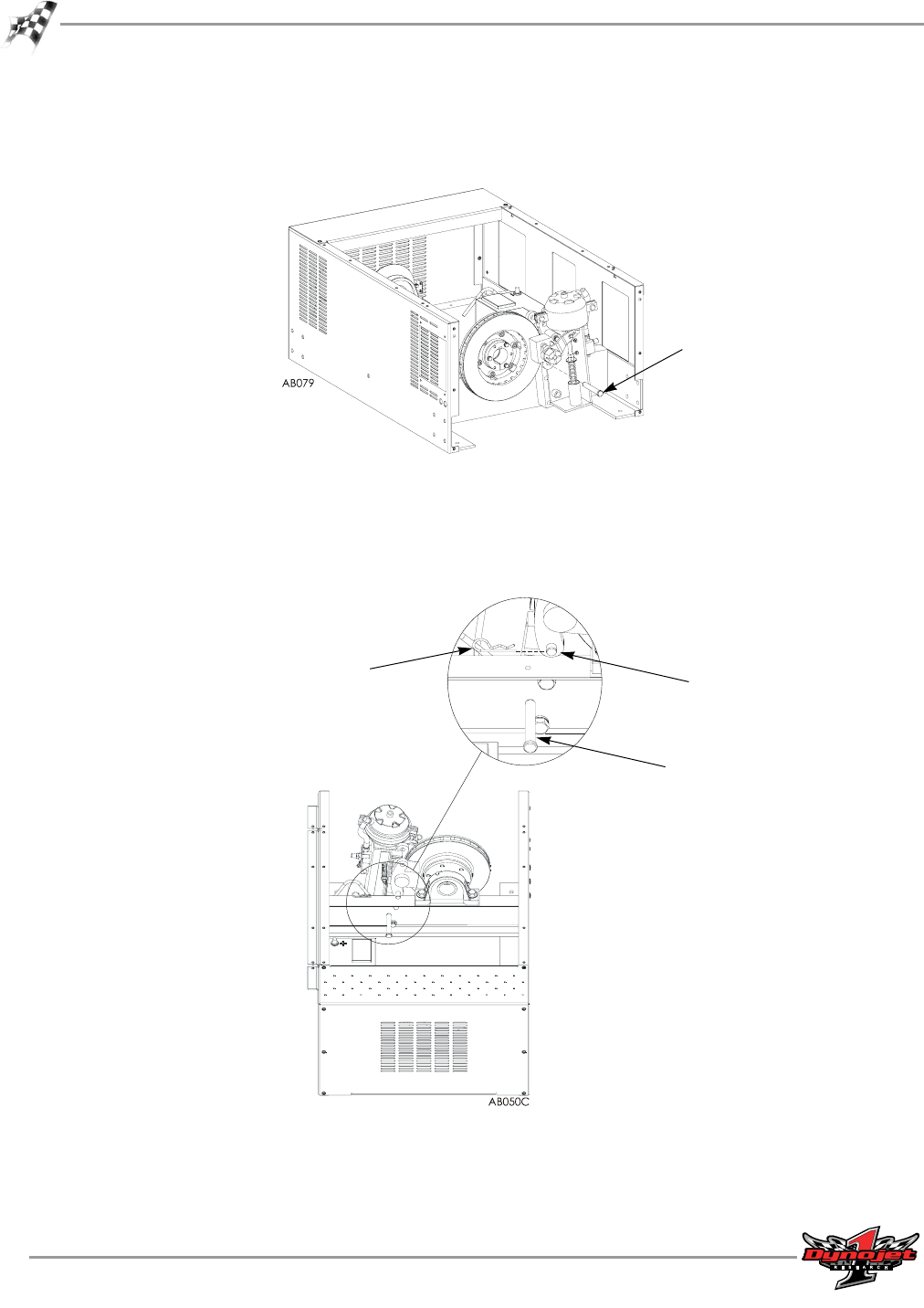

Figure 11: Inserting the Top Clevis Pin
8b Push the bottom clevis pin through the back of the drum module frame and
the air brake assembly (drum side).
8c Secure the top clevis pin with a hair pin cotter.
Figure 12: Inserting the Bottom Clevis Pin and Top Hairpin Cotter
top clevis pin
bottom clevis pin
top hairpin cotter
top clevis pin
