Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
AIR BRAKE AND EEC KIT
EEC Finger Guards—200iP/250iP
26
6 Secure the upright brace to the drum module using the two screws removed
earlier. Refer to Figure 7 on page 9.
7 Secure the right pit cover plate to the dyno using the four 1/4-20 x 5/8-inch pan
head screws and the four 3/8-16 x 1/2-inch screws removed earlier.

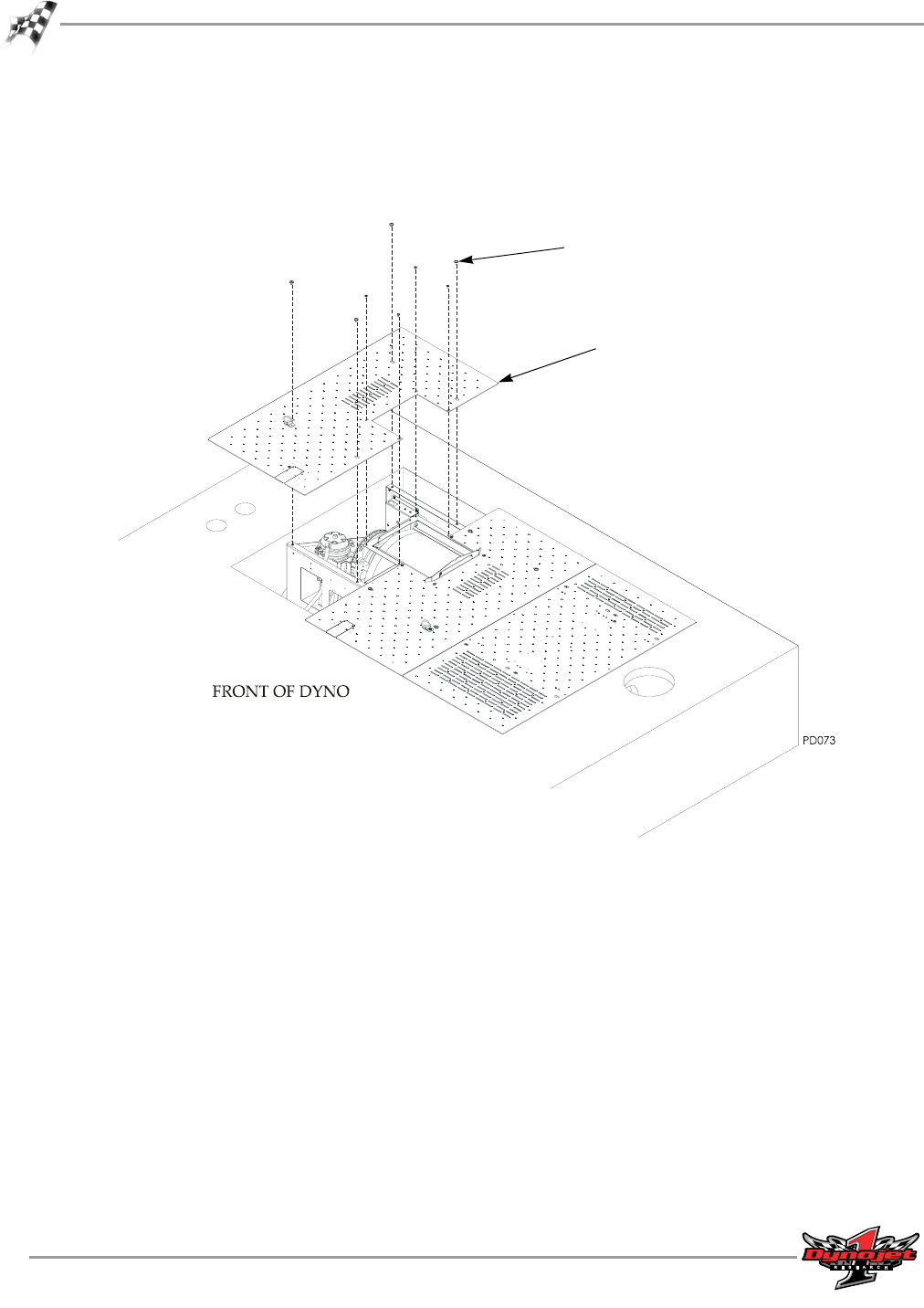

Figure 26: Securing the Right Pit Cover Plate to the Dyno
right pit cover plate
screw
