Automotive Dynamometer Installation Guide
CHAPTER 4
Eddy Current Brake Installation
4-14
INSTALLING THE FRONT AND REAR BRAKE COVERS AND THETA CONTROLLER
You will need the following parts:
66411004 Theta Controller
36540647 Screw, 8-32 x 3/8”, PH, Sems, Phil (4)
1 Install the front and rear covers to the frame using five 1/4-20 x 3/4-inch button-
head flange screws and five nuts removed earlier for each cover.

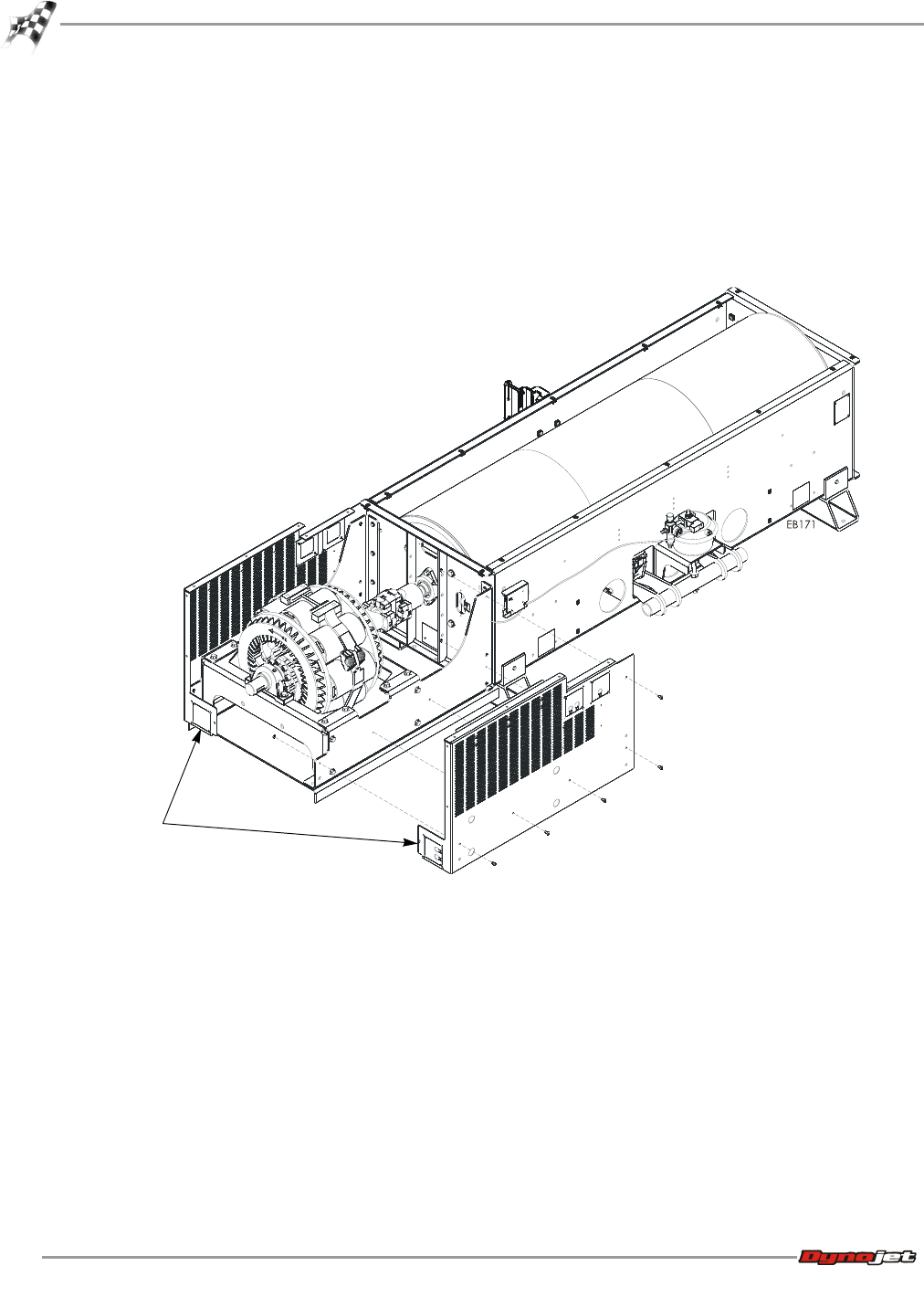

Figure 4-15: Install the Front and Rear Covers
front and rear covers
