EDDY CURRENT BRAKE INSTALLATION
Torque Module Installation
Version 8 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
4-19
CONNECTING THE LOAD CELL CABLE
The load cell cable was routed from the dyno to the dyno electronics on page 3-12
and page 3-19.
1 Attach the 9-pin connector on the load cell cable to the front of the Torque
Module and tighten down the screws.
Note: When there are two Torque Modules, connect the load cell cable from the
4WD dyno to the top Torque Module.
2 Attach the power cord to the CPU Module and turn the power switch on.
3 The green LED light on the Torque Module(s) should now be on.

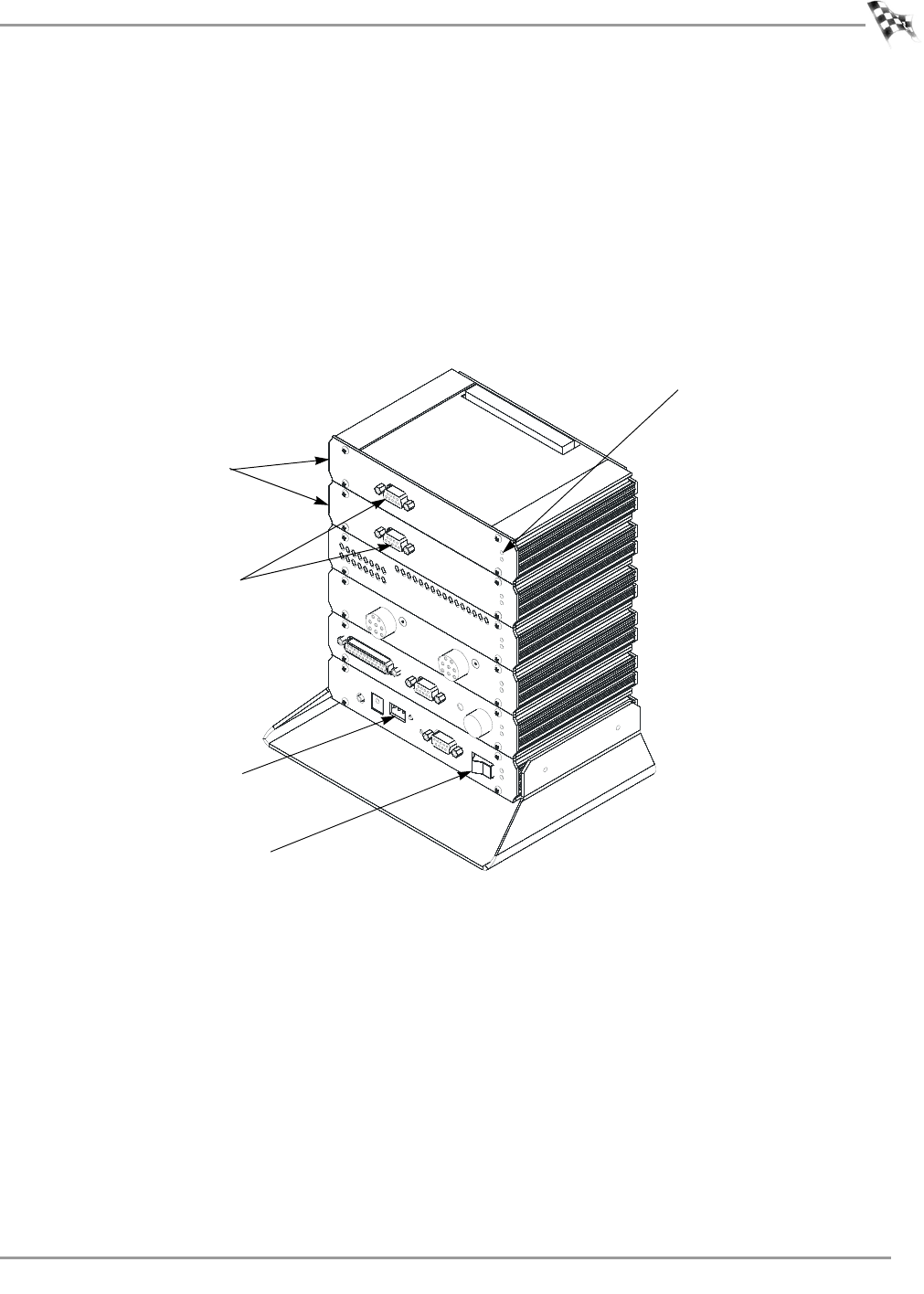

Figure 4-21: Connect the Cell Cable
TM055
attach load cell cable
green LED light
torque modules
attach power cord
turn on power
