BRIDGE EXTENSION ASSEMBLY
Bridge Extension Installation
Version 8 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
D-5

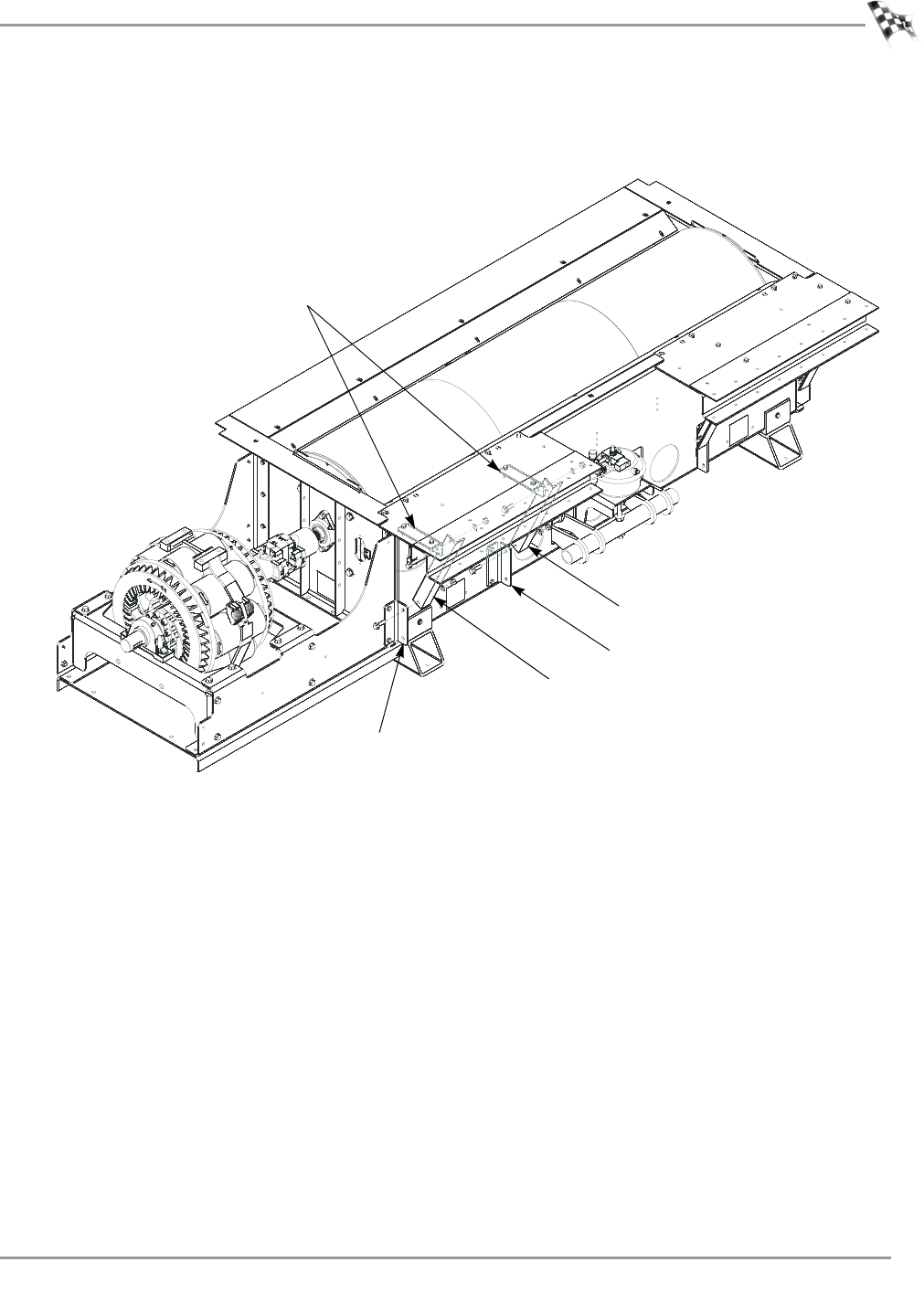

7 Secure the two support arms to the brackets using two 1/2 x 1.5-inch bolts,
two 1/2-inch lock washers, and two 1/2-inch nuts each.
Figure D-4: Secure the Support Arms
AD161
brackets
support arm
bracket
bracket
support arm
