Automotive Dynamometer Installation Guide
CHAPTER 2
Unpacking and Inspecting the Dyno
2-6

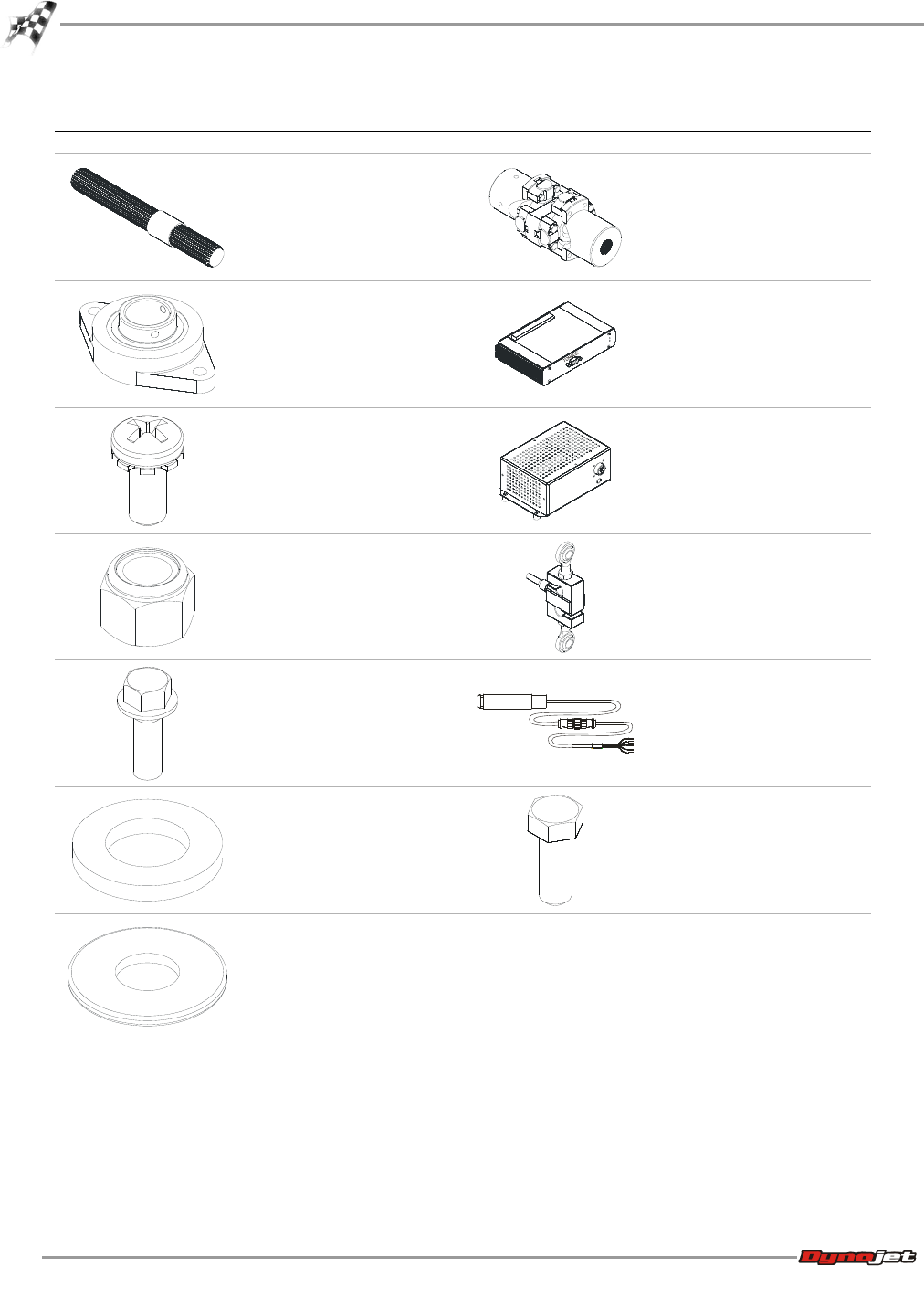

The following parts are included in the Retarder Upgrade P/N 77010003:
splined shaft
P/N 22117130
driveline assembly
P/N 62240130
bearing, flange
P/N 32355056
torque module
P/N 66104001
screw, 8-32 x 3/8", pan-head,
sems, phil (4)
P/N 36540647
theta controller
P/N 66411004
nut, 1/2-13, nylock, hex (4)
P/N 36708100
load cell assembly
P/N 76950505
bolt, 1/2-13 x 1.5", flange
hex (6)
P/N 36801080
temperature sensor
P/N 76955001
washer, 3/8", flat (8)
P/N 36923100
bolt, 3/8-16 x 1", hex (8)
P/N DM150-019-012
washer, 1/2", flat (4)
P/N 36943102
part description part description
