4WD DYNO INSTALLATION
Track Assembly
Version 8 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
3-5

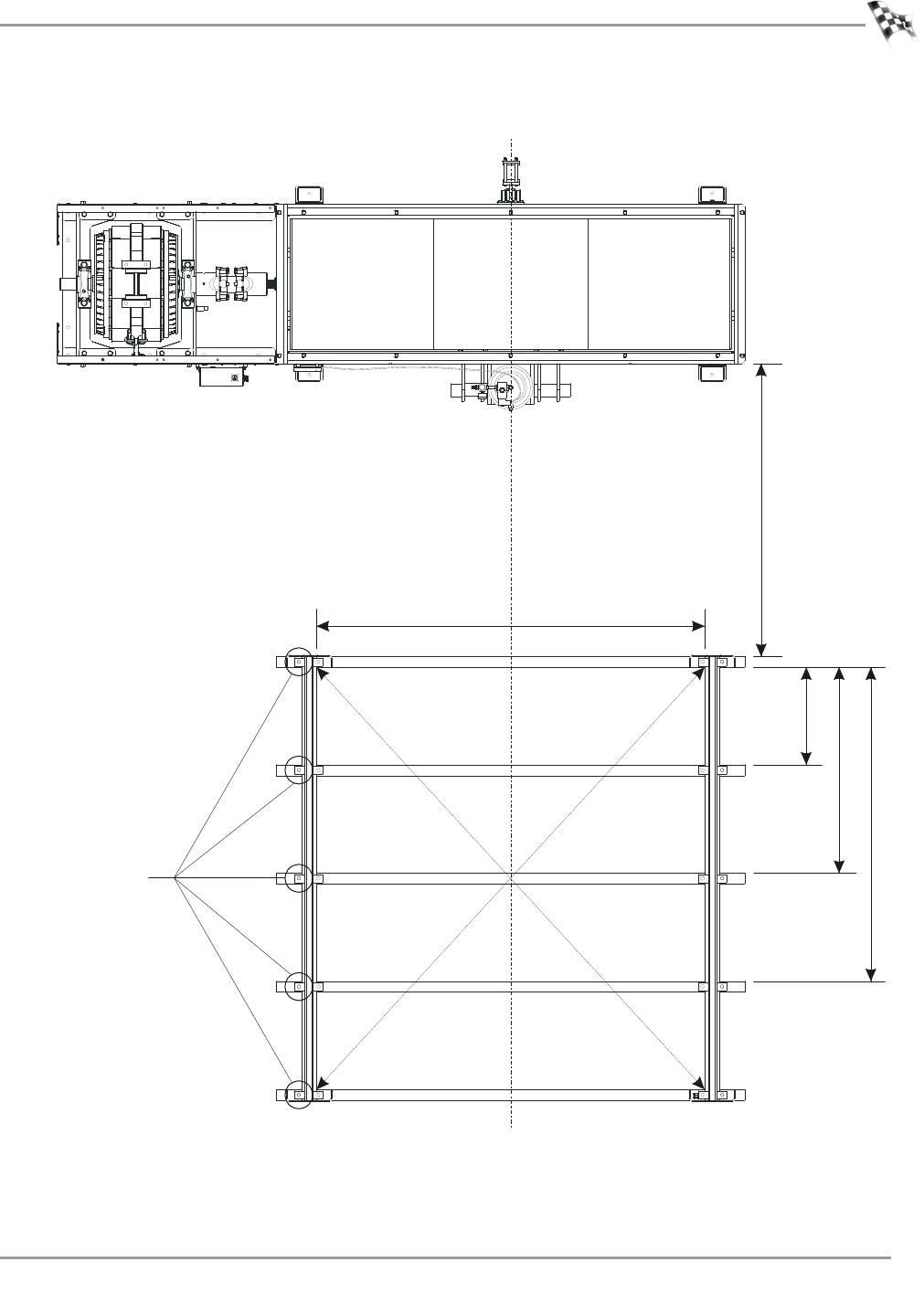

Figure 3-1: Mark and Drill Holes for the Track Assembly
AD044
128.27 cm
(50.50 in.)
without extension
153.67 cm
(60.50 in.)
with extension
(requires extension
parts, inquire with
Dynojet sales)
49.37 cm
(19.438 in.)
103.82 cm
(40.875 in.)
158.28 cm
(62.313 in.)
184.15 cm
(72.5 in.)
center line for
stationary dyno and
track assembly
stationary dyno
track layout
mark and
drill holes
first rail tie assembly
first rail tie
second rail tie
third rail tie
last rail tie assembly
