Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
CHAPTER 3
Hydraulic Movement Installation
3-28
ROTATING THE HYDRAULIC MOTOR
Before rotating the hydraulic motor, verify the motor is wired for your needs. The
motor is wired for 110v but can be changed to 220v.
1 Remove the wiring box cover.
2 Follow the instructions on the cover to wire the motor for 220v.
3 Remove the four bolts and washers securing the motor.

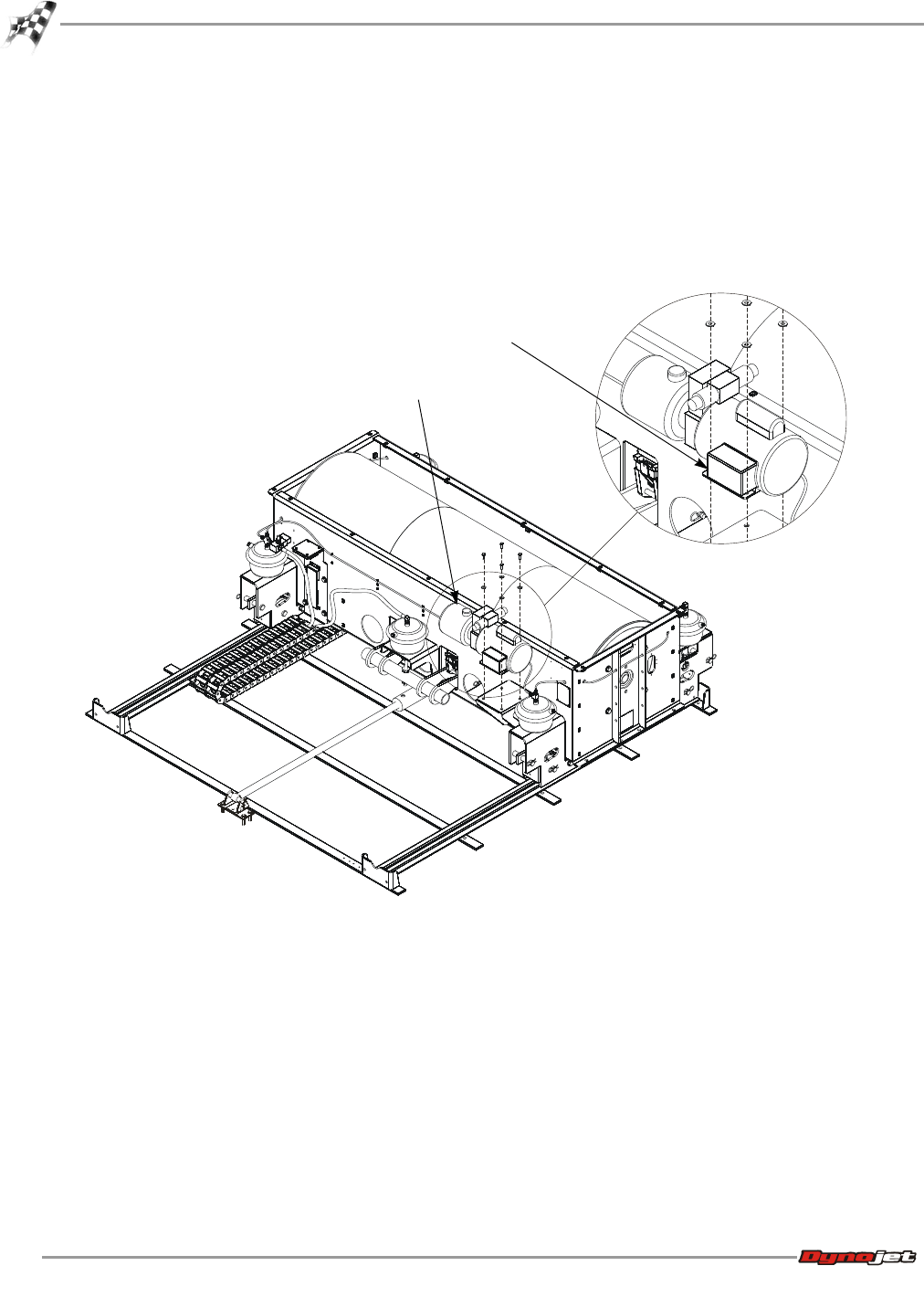

Figure 3-18: Removing the Hydraulic Motor
AD486
motor
wiring box cover
