Automotive Dynamometer Installation Guide
CHAPTER 3
Bridge Installation—Stationary Dyno
3-38
5 Square up the runner assemblies.
5a Place a square along the edge of the stationary dyno and along one of the
runner assemblies. Move the runner assemblies until they are square with
they dyno.
5b Tighten the bolts securing the runner assemblies to the runner mounts.
5c Tighten the bolts securing the runner mounts to the dyno.
6 Dynojet recommends you anchor the support pillars to the dyno room floor,
however this step is optional.
6a Using the support pillars as a template, mark and drill each hole needed to
secure the four pillars to the floor.
6b Install eight Red Head anchors. Refer to Appendix A for installation
instructions.
6c Secure each pillar to the floor using two 3/8-16 x 1.25-inch hex-head bolts,
two 3/8-inch lock washers, and two 3/8-inch flat washers.

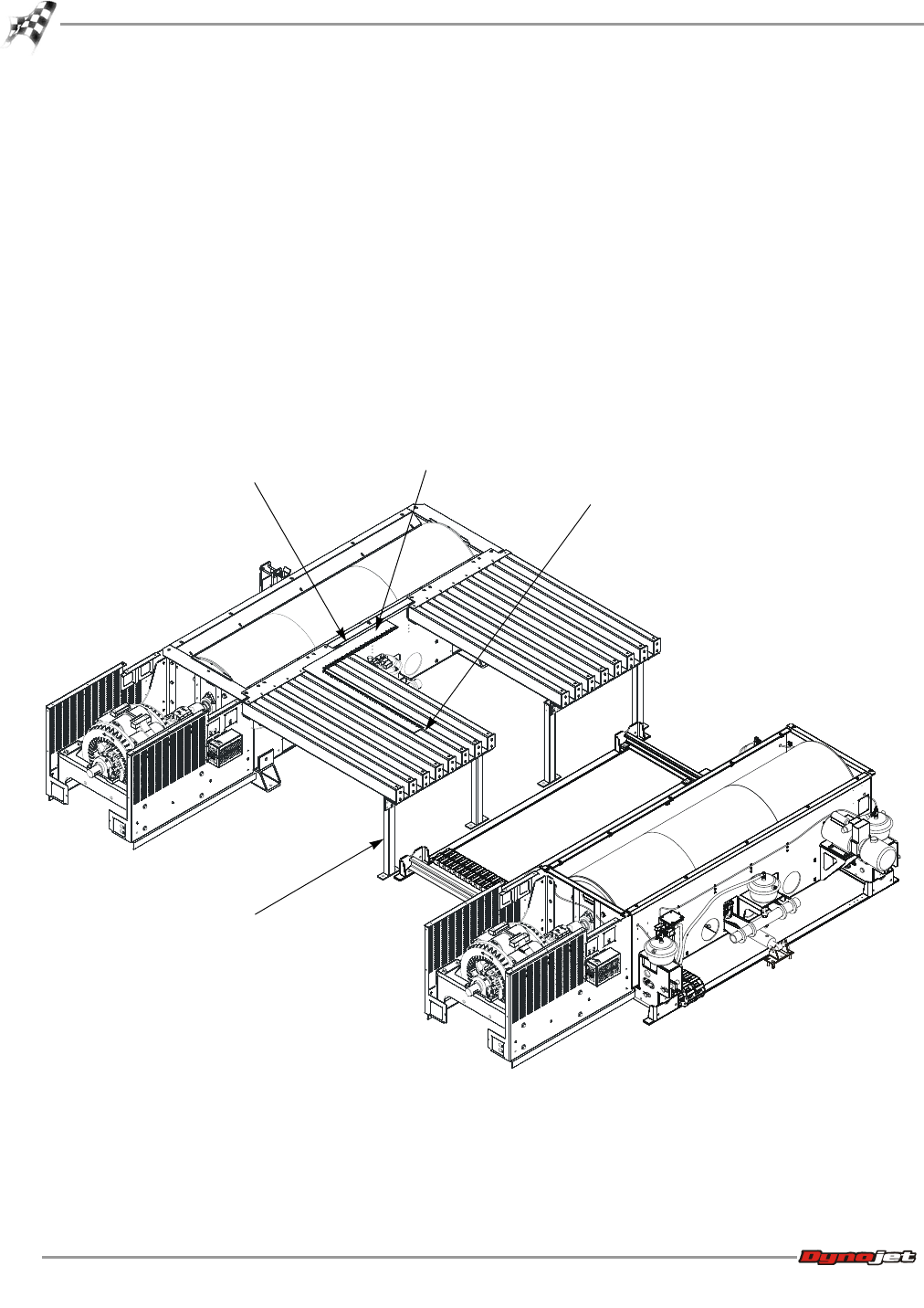

Figure 3-26: Square up the Runner Assemblies
AD493
edge of dyno
square ruler
runner assembly
support pillar
