4WD DYNO INSTALLATION
Bridge Installation—4WD Dyno
Version 8 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
3-43
INSTALLING THE RUNNER ASSEMBLIES
1 Slide each runner assembly into the runner mount.Verify the plastic end faces
away from the 4WD dyno.
2 Loosely secure the six outside runner assemblies to the runner mount using one
3/8 x 5-inch bolt, flat washer, lock washer, and nut each.
Note: Leave the seventh inner bolt out. This bolt will be used to secure the center
cover.
Each runner assembly will lay on the runner supports between the stationary
dyno runner assemblies.
3 Verify the existing bolt in each runner assembly is on the bottom. There are
fourteen runner assemblies, seven on each runner mount.

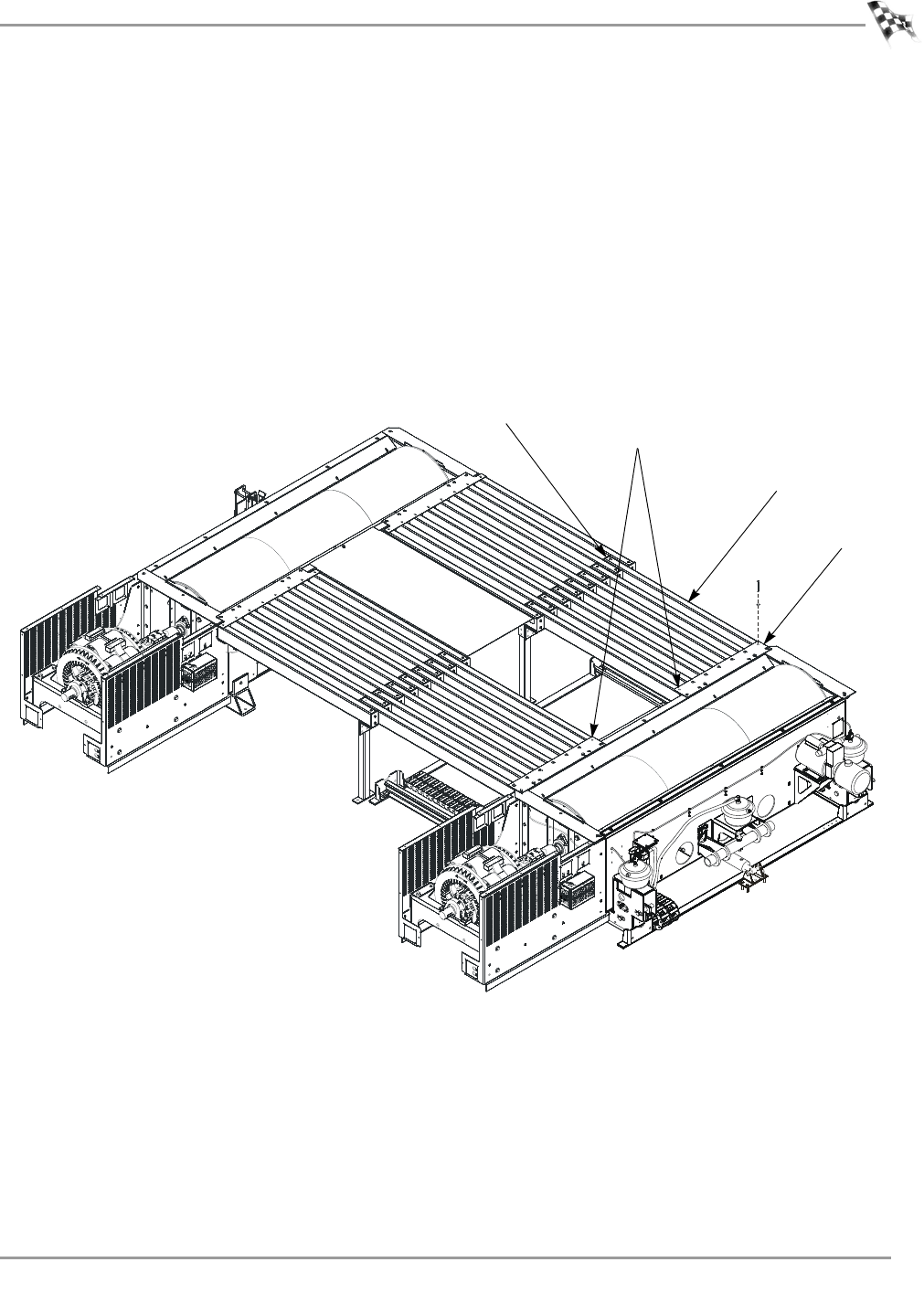

Figure 3-30: Install the Runner Assemblies
AD497
runner mount
runner
assembly
leave inner bolt out
plastic end
