Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
CHAPTER 3
Deck Installation
3-46
1 Verify the drum guards are installed. Refer to page 3-41 for installation
instructions.
2 Verify the front and rear eddy current brake covers are installed. Refer to page 4-
14 for installation instructions.
3 Install the deck brace mounting bracket using two 3/8-16 x 1.5-inch flange hex
bolts.
Note: If you do not have an eddy current brake, you will need to install one deck
mounting bracket on each side of the dyno.

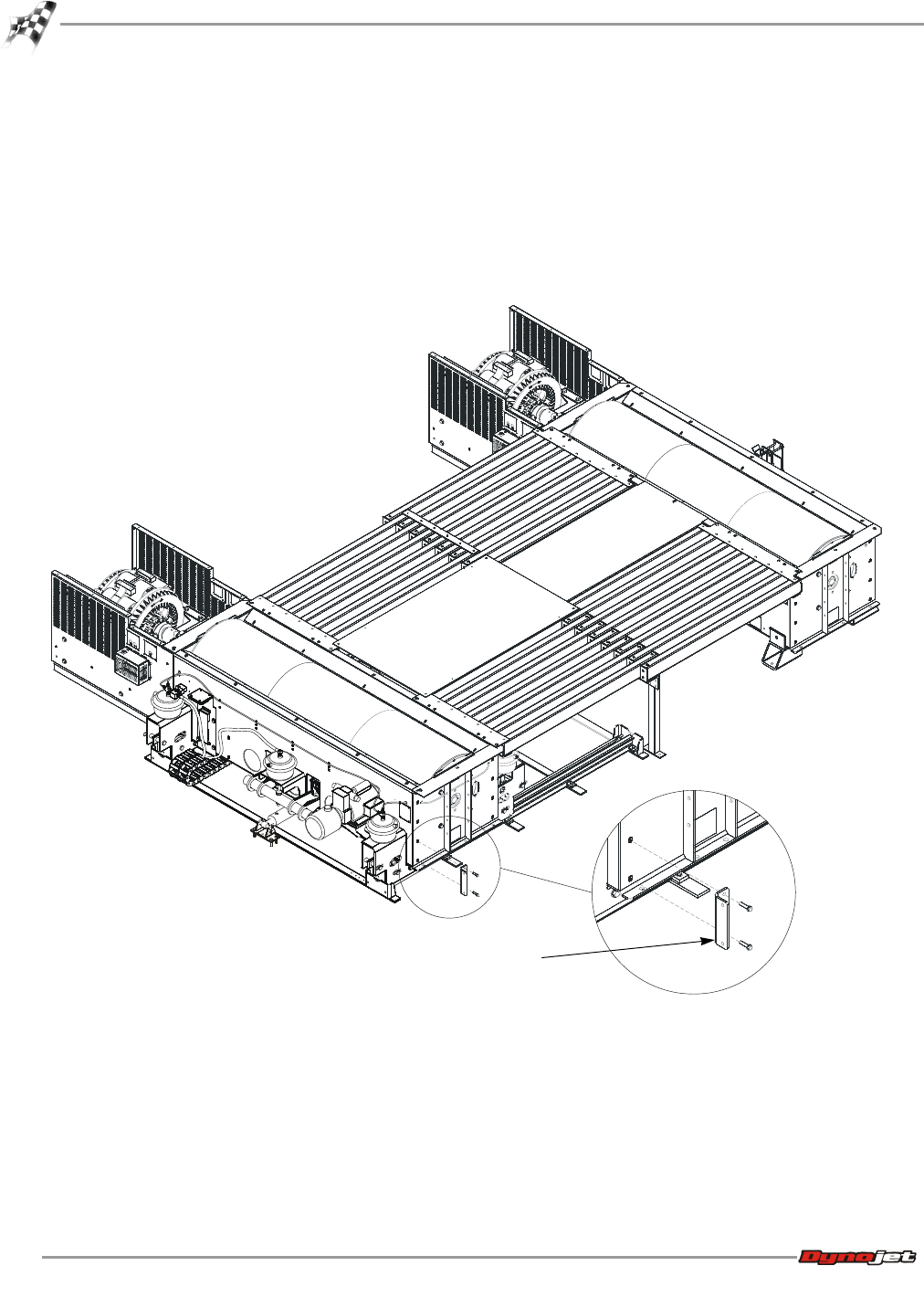

Figure 3-32: Install the Deck Brace Mounting Bracket
AD499
mounting bracket
