EDDY CURRENT BRAKE INSTALLATION
Eddy Current Brake Installation
Version 8 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
4-7
8 Remove the four lag bolts securing the brake to the crate.
9 Place the nylon loop strap around the shaft on either side of the brake.
Dynojet recommends using single loop style straps.
10 Using a forklift, lift the eddy current brake from the crate and place the brake near
the dyno.

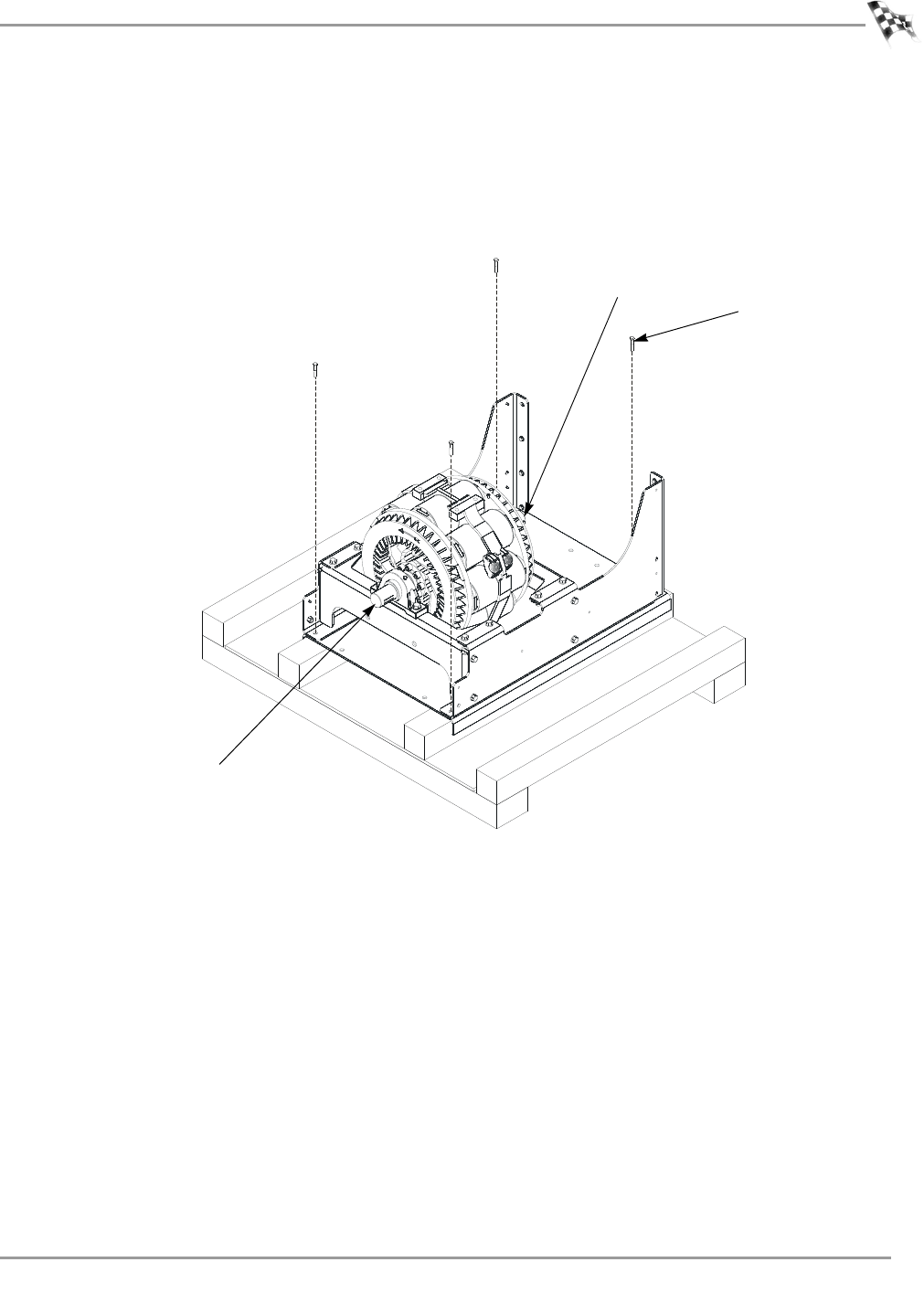

Figure 4-6: Remove the Brake from the Crate
EB125
shaft
bolt
shaft
