Installation
Eaton Advanced ePDU User’s Guide P-164000042—Rev 2 www.eaton.com/ePDU 14
Installing the ePDU in a Rack Cabinet
There are three methods available for installing the ePDU in a rack cabinet. Review the installation methods
described in this section and choose the method appropriate for your environment.
Using Cage Nuts with Mounting Clip Feet
To install the ePDU with mounting clip feet secured by cage nuts:
1. Locate the two cage nuts (supplied). Position and lock the two cage nuts far enough apart to stabilize the
top and bottom of the ePDU when mounted on the rail. Attach the cage nuts with a flat-blade screwdriver.
2. Locate the two mounting clip feet and two screws (supplied). Position one mounting clip foot at a cage
nut and secure the mounting clip foot to the rail with a screw, as shown in Figure 10. Repeat for the
second mounting clip. Tighten both screws.

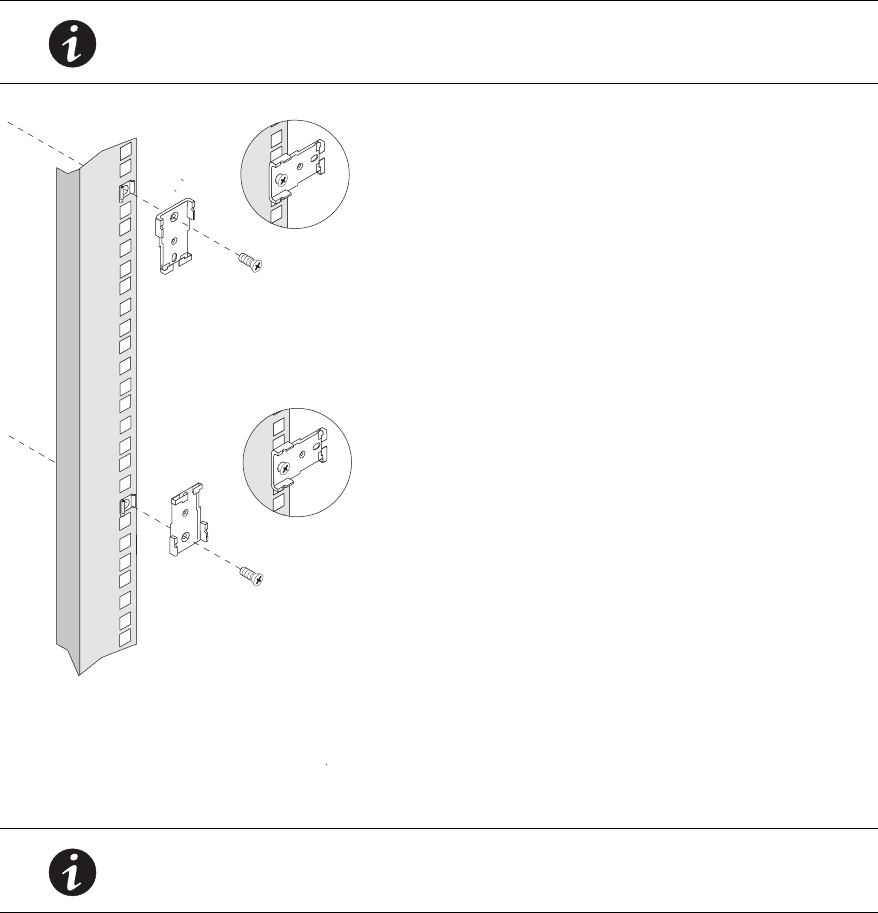

Figure 10. Attaching the Mounting Clip Feet
NOTE You can install the mounting clip feet vertically or horizontally.
NOTE Use great care in handling the ePDU in the following steps. Avoid contact
between the
ePDU and the rack.
