Description

Single-pole & 3-way

300W Dimmable LED, Dimmable Compact Fluorescent (CFL)

600W/VA Incandescent (INC)/Halogen (HAL), Dimmable Fluorescent

(FLR), Magnetic Low-Voltage (MLV), Electronic Low-Voltage (ELV)

Design features

•

Preset feature allows user to return to previous light level

when turning lights ON

•

Integrated full-slide control for easy, precise operation

•

Device can be wired into either 3-way location (load side

or line side)

•

Neutral is not required for installation of device

•

Adjustable low-level trim setting for optimal lamp compatibility

•

Faceplate is removable to allow for color changes

•

Each package includes 3 colors

•

Radio frequency interference filtering is standard on all models

•

Electrostatic discharge protection

•

Compatible with any traditional toggle wallplate or screwless

toggle wallplate

•

Compatible with most dimmable LED and CFL lamps

•

Adjustable rapid start feature ensures lamp start-up even

at low dim levels

•

Compatible with most common dimmable lighting loads

(phase-cut)

•

Color change kits are available with packout of 3 different colors

for increased flexibility and convenience

TAL06P2

Table 1. Toggle AL Series Dimmer, Back & Side Wire

Catalog No. Description

Compatible

Lamp Types

Rating

Watt V/AC Color Suffix

TAL06P2-__ Toggle dimmer, AL series,

single pole/3-way

preset, all-load rated

Dimmable

LED/CFL

300 120 C1, C2,

C4, C5

INC, HAL,

FLR, MLV, ELV

600 120 C1, C2,

C4, C5

TCK3-__ Color change faceplate for

TAL06P2

__ __ __ A, B, BK, GY,

LA, V, W

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

Toggle AL series dimmer

Compliances, specifications and availability are subject to change without notice.

Technical Data

Effective March 2017

Summary of content (6 pages)

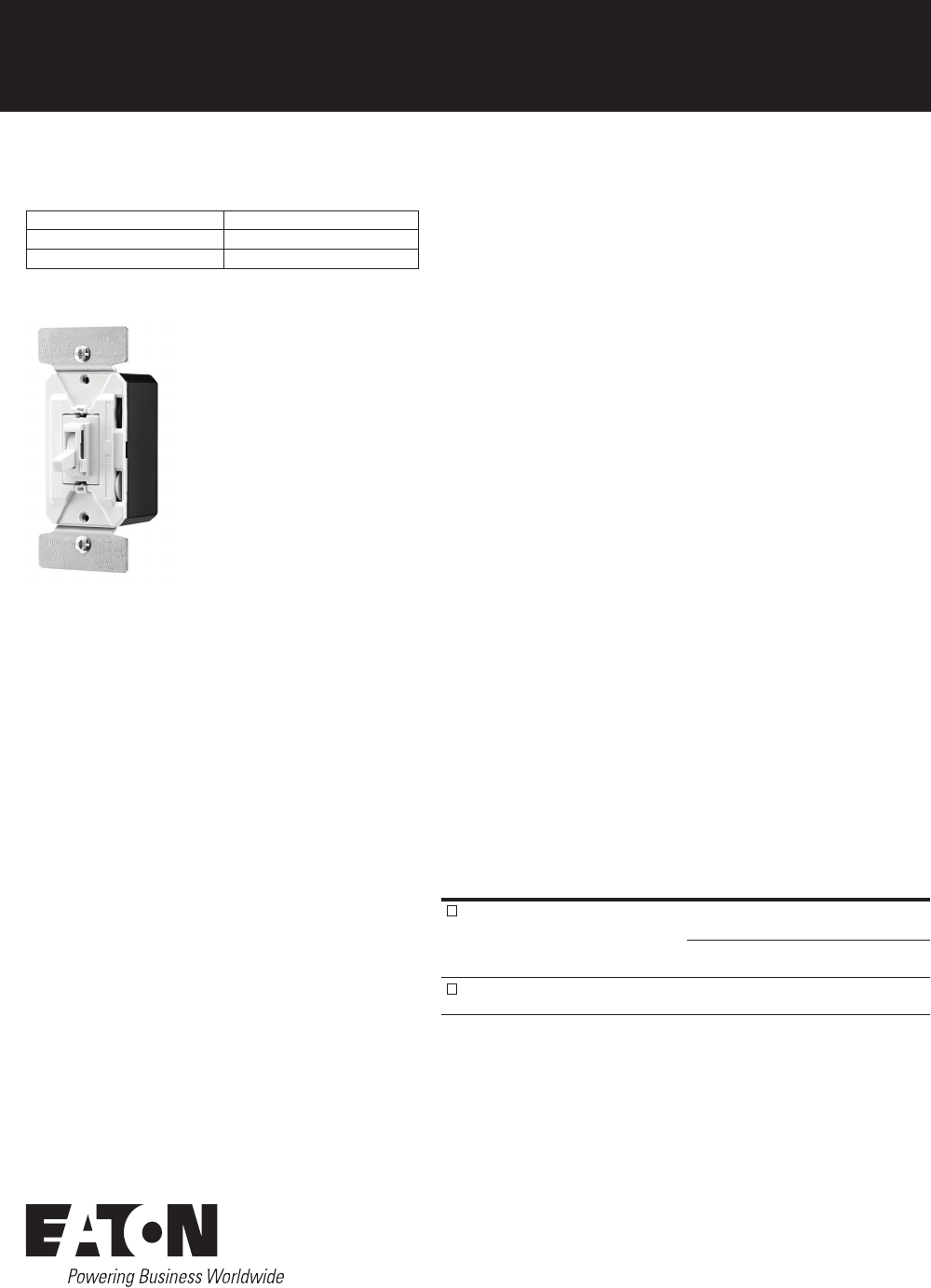

PAGE 1
Technical Data Effective March 2017 Toggle AL series dimmer Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Description Single-pole & 3-way 300W Dimmable LED, Dimmable Compact Fluorescent (CFL) 600W/VA Incandescent (INC)/Halogen (HAL), Dimmable Fluorescent (FLR), Magnetic Low-Voltage (MLV), Electronic Low-Voltage (ELV) Design features TAL06P2 • Preset feature allows user to return to previous light level when turning lights ON • Integrated full-slide control for easy, pr
PAGE 2
Technical Data Toggle AL series dimmer Effective March 2017 Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Applications The AL series toggle dimmer offers a traditional toggle look with integrated full-range dimming for 300W dimmable LED and CFL as well as 600W incandescent, halogen, dimmable fluorescent, electronic low-voltage & magnetic low-voltage light sources.
PAGE 3
Technical Data Toggle AL series dimmer Effective March 2017 Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Product Dimensions 1.80" (45.7 mm) 4.19" (106.5 mm) 3.28" (83.4 mm) 1.30" (33.0 mm) MATERIAL: DIMENSIONS ARE IN INCHES TOGGLE DIMMER DIMENSIONS IN [ ] ARE INArt MM Figure 1. TAL06P2 Line WithFINISH:Dimensions ENGLISH (IN) METRIC (MM) ANGLES .0 .00 .000 ` 0.03 ` 0.01 ` 0.005 .0 .00 ` 0.3 ` 0.13 ALL ` 0.
PAGE 4
Technical Data Toggle AL series dimmer Effective March 2017 Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Table 6.
PAGE 5
Technical Data Toggle AL series dimmer Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Effective March 2017 Table 7.
PAGE 6
Technical Data Toggle AL series dimmer Effective March 2017 Project Name: Prepared By: Project Number: Date: Catalog Number: Type: Table 8. Maximum Fluorescent Lamp Wattage The following table lists the maximum number of Mark 10® or AmbiStar® ballasts that can be connected to a dimmer for single and multidevice installations in a wallbox.
