Installation Guide

Dimming motion sensors
Rating
W/VA V/AC Description Color suffix Catalog no.
600 120 Incandescent/halogen, magnetic low-voltage occupancy sensor
& dimmer, single-pole with LED
A, BK, GY, LA, V, W OS106D1-__
600 120 Incandescent/halogen, magnetic low-voltage vacancy sensor
& dimmer, single-pole with LED
A, BK, GY, LA, V, W VS106D1-__
cULus Listed to UL244A & UL1472, file no. E325082; NOM certified
Dimmer color change kits
Description Color suffix Catalog no.
Color change kit for dimmer sensor A, BK, GY, LA, V, W SCKD-__-BP
Product description
Single-pole
600W/VA; 120V/AC
Incandescent/halogen, magnetic low-voltage
Design features
Dimming motion sensors
Occupancy & vacancy sensors
•
Full-range Preset dimming control provided with
horizontal dim/bright bar
•
Digital circuitry provides aesthetically pleasing
soft ON/fade OFF that extends bulb life
•
Preset and light level change is easily shown with
horizontal row of green LEDs
•
Works with popular load types: halogen,
incandescent and magnetic low-voltage
•
Single green LED indicates load status, provides
locator light in dark and blinks to indicate
motion detection
•
LED serves as air-gap switch disconnecting
power from load, forcing an OFF condition
•
Push pad design provides minimal travel and
crisp actuation
•
Replaces a standard light switch
•
Provides 180 degree field of view and 1000 sq. ft.
of major motion coverage
•
Selectable time delay of 5 seconds (test),
5 minutes, 15 minutes and 30 minutes for lights
to remain on after room is vacated
•
Reverse mode allows light to stay off in a room
when motion is detected
•
Occupancy sensor provides a selectable ambient
light override preventing lights from switching ON
when there is acceptable natural light
•
Occupancy sensor version allows toggling
between Auto-ON/Auto-OFF or Manual
ON/Auto-OFF mode with a simple press and
hold of switch
•
Occupancy sensor provides for a bypass feature
to allow the sensor to perform as a traditional
switch (Manual ON/Manual OFF)
•
Vacancy sensor meets California 2008 Title 24
•
Electrostatic discharge protection
•
No leakage to load in off mode
•
Uniform color matched PIR lens to
device housing
•
Color change faceplate kits provide for a simple
in field change
•
Neutral required for installation of device
•
Mid-size decorator wallplate included
with product

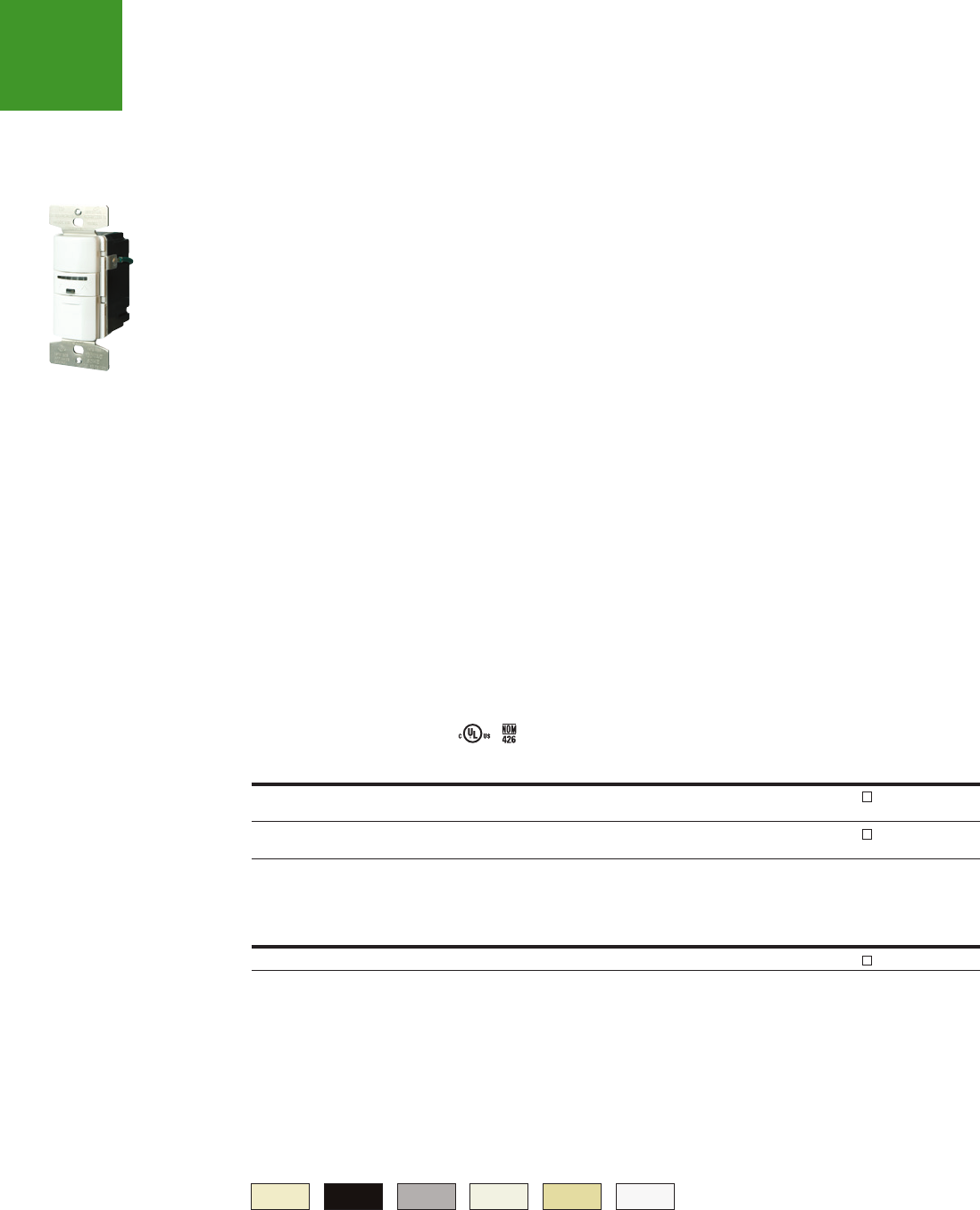

OS106D1
Derating Information: F-19 Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
A BK GY LA V W
(Almond) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
