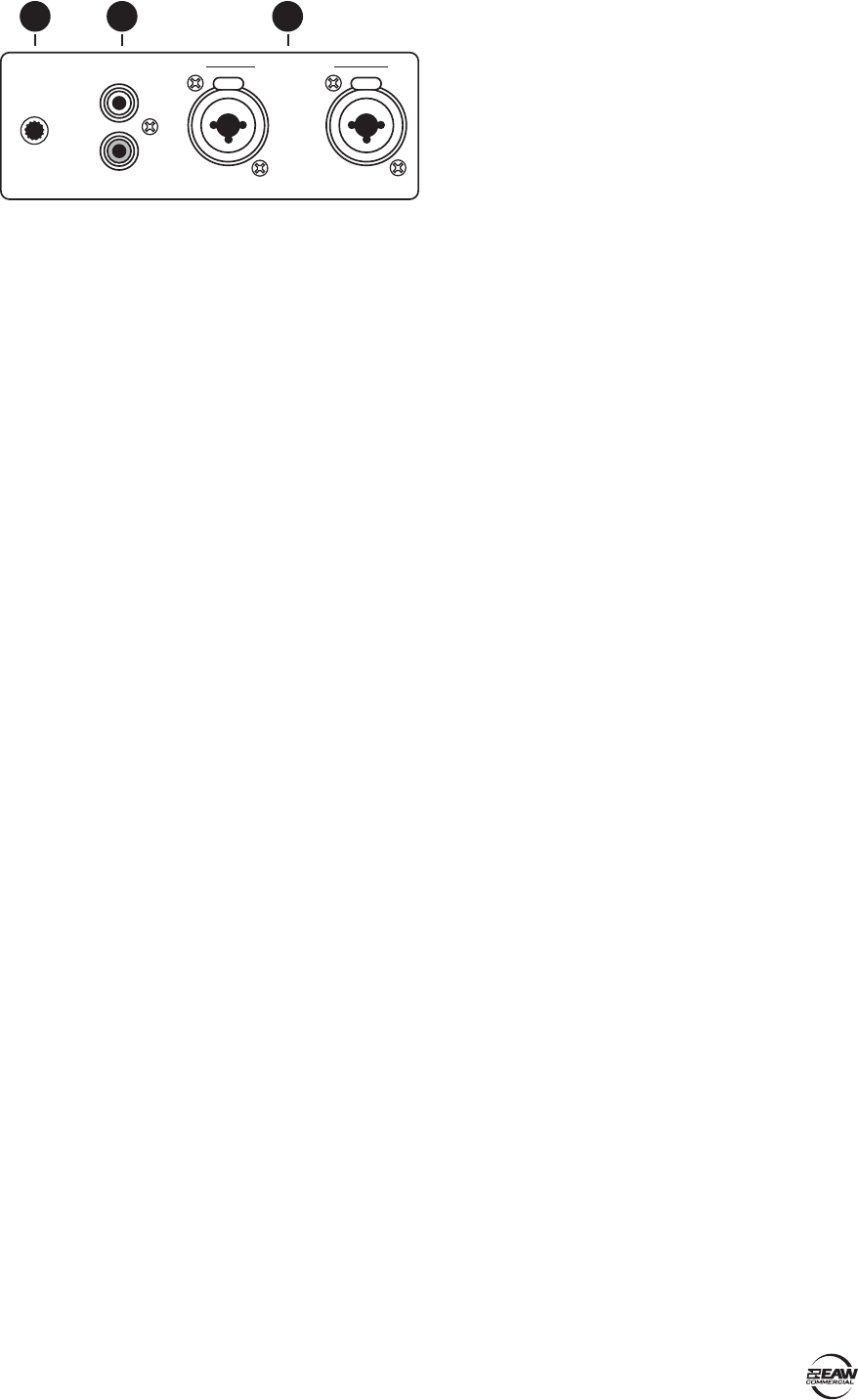

14. LEVEL ADJUSTMENT
This control allows you to adjust the input signal level.
15. RCA INPUTS
These unbalanced RCA inputs allow you to connect audio
sources, such as tuner, CD player, DVD audio, tape deck
etc. They accept line-level input signals, and are summed
to mono. This input is suitable for connecting most common
line-level sources. Use high-quality, two-conductor shielded
cable for the connections.
16. COMBINATION INPUTS
These inputs allow you to connect balanced XLR plugs
or 1/4" TRS or TS plugs from line-level sources. The two
inputs are summed to mono.
Use balanced connections where possible (instead of RCA
unbalanced connections), as these offer better rejection of
noise.
Use high-quality, three-conductor shielded cable for
balanced connections. The better the shield, the better the
audio signal is protected from induced EMI and RFI.
