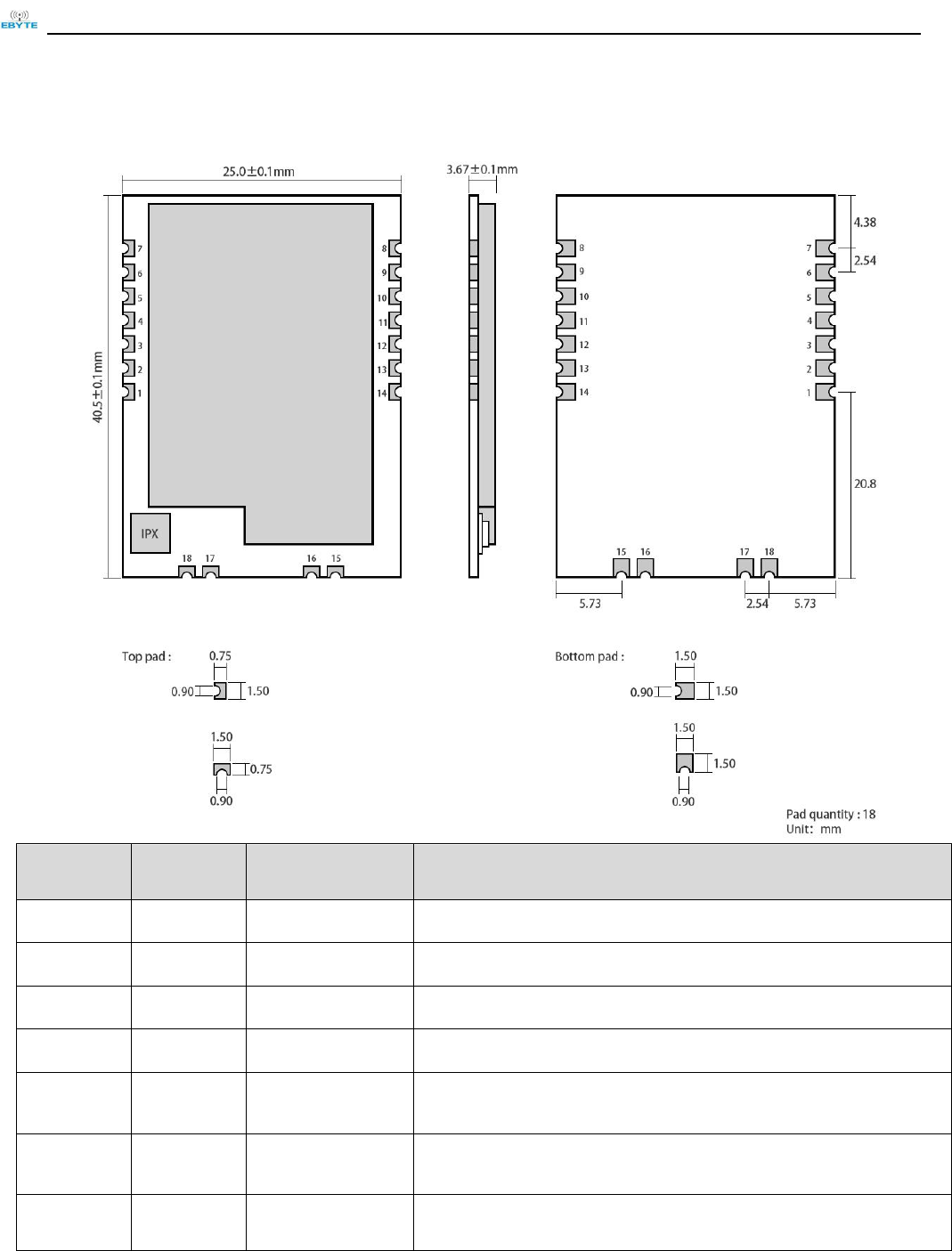

3 Size and pin definition
No.
Name
Direction
Function
1
GND
-
Ground
2
GND
-
Ground
3
GND
-
Ground
4
GND
-
Ground
5
M0
Input
（weak pull-up）
Work with M1 to decide 4 working modes of module (not suspended, if not
used, could be grounded).
6
M1
Input
（weak pull-up）
Work with M0 to decide 4 working modes of module (not suspended, if not
used, could be grounded).
7
RXD
Input
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be
configured as open-drain or pull-up input. Ground
