Specifications

11

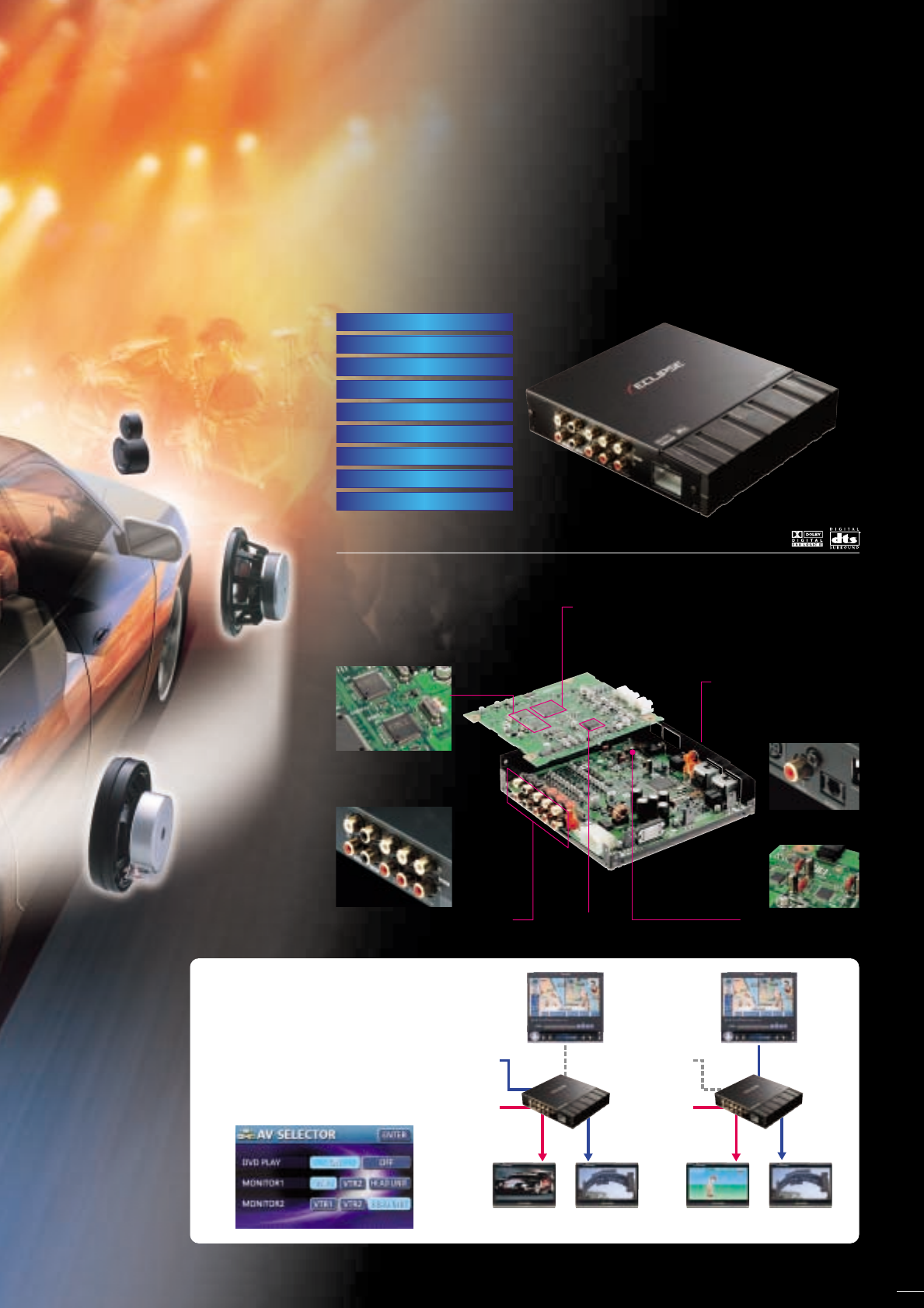

DCU105
5.1 ch. Decoder/AV Matrix Unit
ECLIPSE designed the powerful Audio Video Matrix unit that can be used with various ECLIPSE
products. Because it is a dedicated unit, the addition of the DCU105 elevates the performance
of unit it is connected to significantly for audio as well as video. It offers system control and
response that would ordinarily require technicians and test equipment to achieve. It also offers
many advanced system expansion choices for audio as well as video.
DCU105 Audio Video Matrix
Multi-function 24-bit Dolby decoder
The multi-function 24-bit Dolby decoder
incorporates Dolby Digital 5.1ch. and dts
5.1ch. functions as well as Dolby Pro Logic II.
24-bit DSP for audio processing (Parametric EQ,
Time Alignment, Crossover, etc.) handles all audio
tasks and offers comprehensive parameters for
customising audio to user preferences.
Digital inputs
for coaxial and optical signals
allow easy interfacing.
Gold-plated RCA pin connectors
Advanced 24-bit DAC
AV Matrix IC
Dolby Digital 5.1 ch.
dts 5.1 ch.
Dolby Pro Logic II
Time Alignment Pro
Parametric EQ Pro
Crossover Pro
5V preamp output
MOSFET 50W
×
4
AV Matrix Selector
Dimensions (W × H × D)
175 × 36.5 × 160mm
When the AVN8826 is used with the DCU105,
different program sources can be viewed
simultaneously for dual zone operation. With
navigation on in front, DVD-Video can be playing
for one rear passenger while another can watch
video playback from a video camera or play a
game. The same DVD-Video can be enjoyed in the
front and rear with the other passenger enjoying
another program source.
Versatility increases entertainment value.
GAME
(VTR2)
OutputOutput
DVD
Player
(VTR1)
Monitor 1 Monitor 2
Video
Camera
(VTR2)
Input
Input
Input
Input
OutputOutput
DVD
Player
(VTR1)
Monitor 1 Monitor 2
DCU105 DCU105
