Data Sheet

L10.7 SERIES
CERAMIC FILTER
The L10.7 Series ceramic filter is for FM use.
1105 South Ridgeview Road z Olathe, KS 66062 z Phone: [phone] z Fax: [phone] z www.ecsxtal.com
PART NUMBER *
PIN CONNECTIONS
3 dB
BANDWIDTH
(KHz) MIN.
20 dB
BANDWIDTH
(KHz) MAX.
INSERTION
LOSS
(dB) MAX.
SPURIOUS
(dB) MIN.
(9-12 MHz)
SPECIFICATION (Fo) MHz
INDICATOR
10.64 10.67 10.70 10.73 10.76
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS (Operating Temp -20 ~ +80°C)
L10.7 MA20□
L10.7 MA5□
L10.7 MA5A10□
L10.7 MS2□
L10.7 MS2A10□
L10.7 MS3□
L10.7 MS3A10□
L10.7 MJ□
L10.7 MJA10□
L10.7 MHY□
330 ±50
280 ±50
280 ±50
230 ±50
230 ±50
180 ±40
180 ±40
150 ±40
150 ±40
110 ±30
680
650
590
600
520
520
520
400
360
350
4 ±2
6 ±2
2.5 ±2
6 ±2
3 ±2
7 ±2
3 ±2
10 ±2
4.5 ±2
7 ±2
30
30
30
40
35
40
35
38
35
30
D B A C E
#1
#2
#3
In/Out
Out/In
Ground

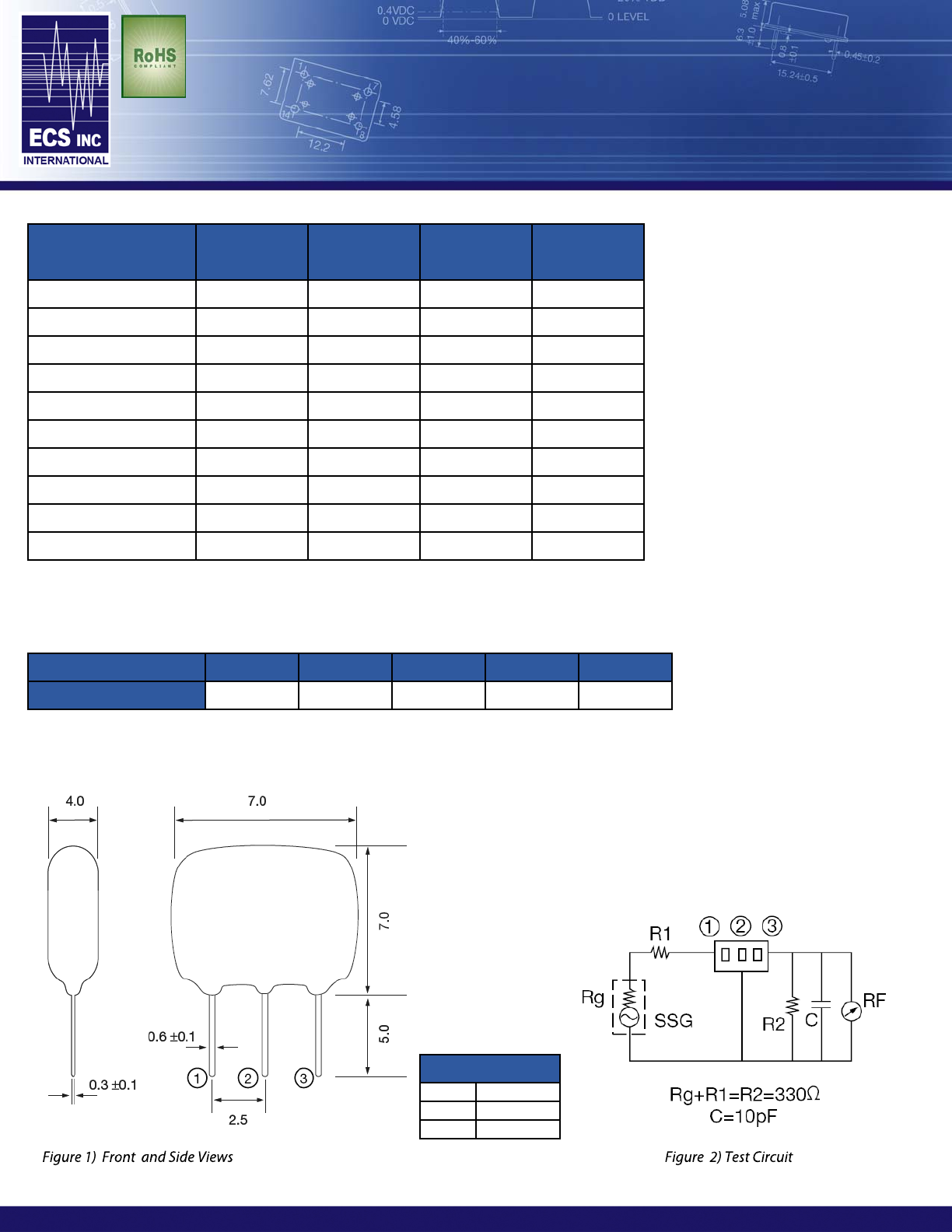

PACKAGE DIMENSIONS (mm)
CENTER FREQUENCY INDICATORS
 FM/Communication applications
 RoHS Compliant (Note 7 exemption)
Input/Output impedance 330 Ohms, Fo tolerance ±30 KHz
□ = Indicator (Fo), Complete part number to include indicator i.e. L10.7MA5C (C=10.73 MHz)
