Patient Monitor User Manual Monitoring CO

- 105 -

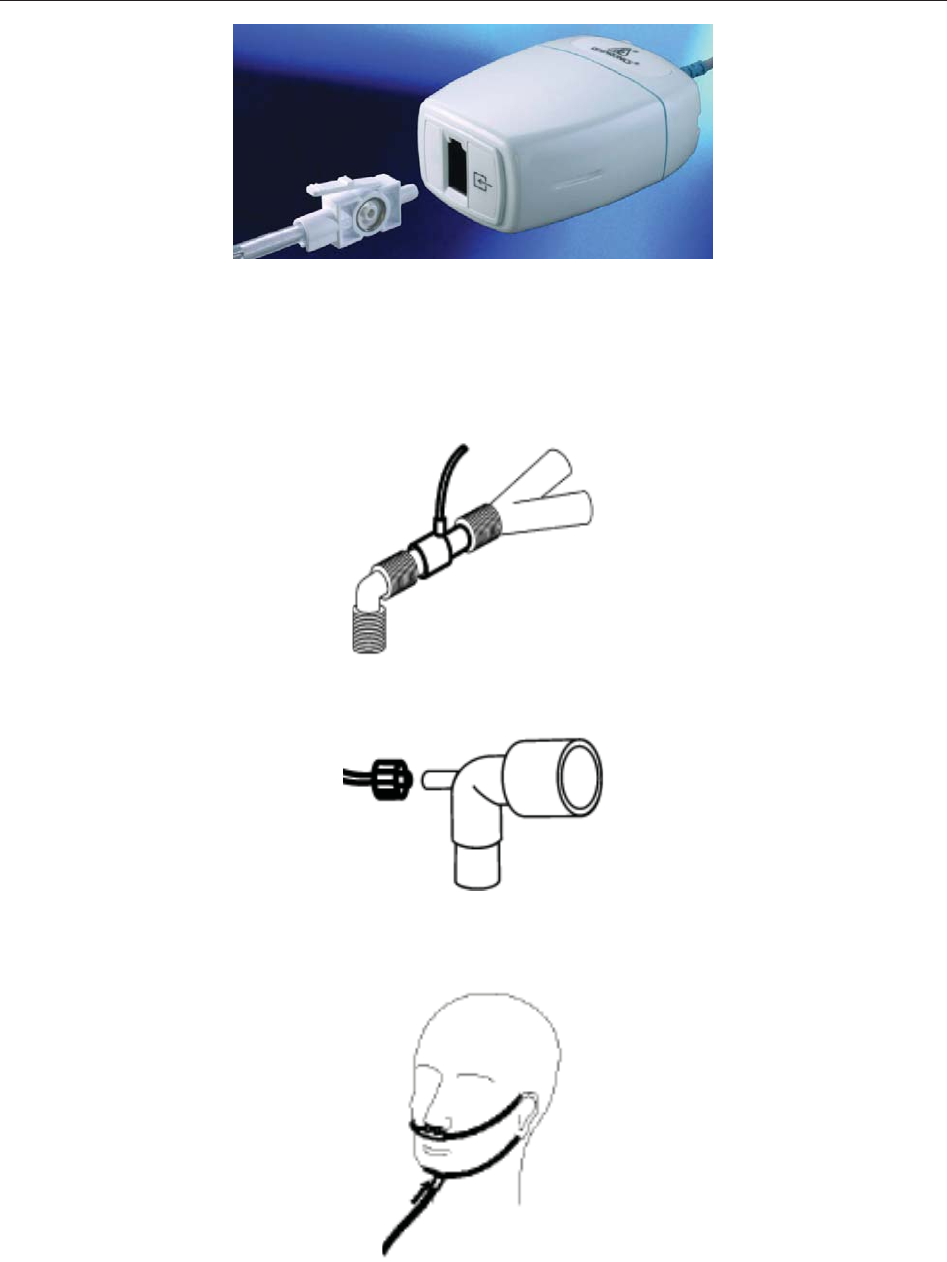

Connecting Respironics Sidestream Module

3 To zero the sensor, please refer to zeroing the sensor.

4 For intubated patients, an airway adapter is required;

Air adapter

For non-intubated patients: Place the nasal cannula onto the patient.

Place the nasal cannula

NOTE:

1 You must perform a zero calibration as described in this procedure each time the

ambient temperature changes more than 10°C (for example during transport).
