7 VGA Interface

8 Network interface, this port is used to connect to the central monitoring

system through the standard network wire.

9 Defibrillator synchronization / analog output. When the user selects

Analog Output, the monitor outputs the waveform through the

auxiliary output port. When the user selects Defibrillation the monitor

outputs the defibrillator synchronization signal through the auxiliary

output port.

10 Speaker

11 SD Card

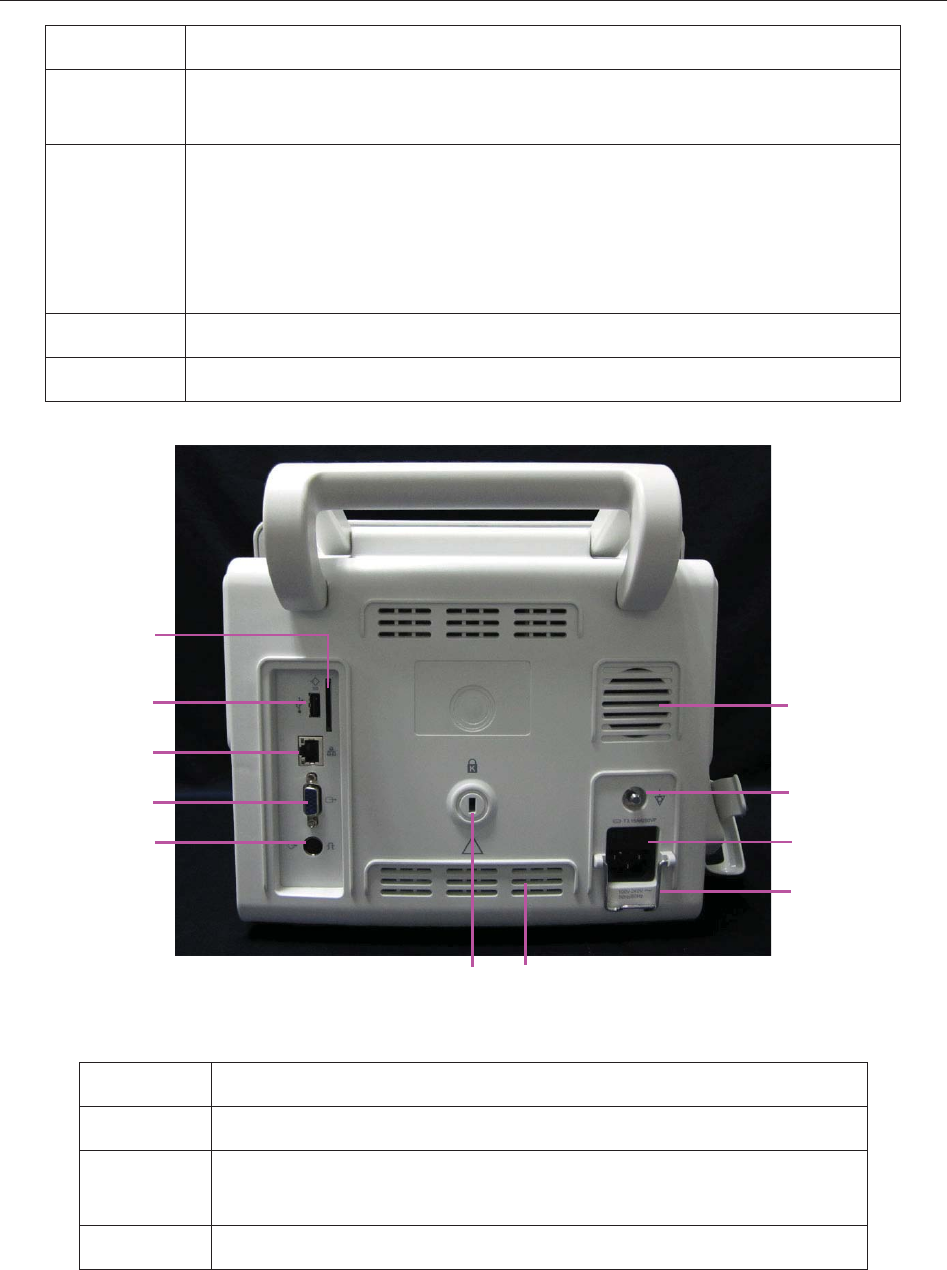

iM60/iM70

1 SD Card

2 USB interface, this port is used to connect the USB device.

3 Network interface, this port is used to connect to the central

monitoring system through the standard network wire.

4 VGA output

6 7
