5 Defibrillator synchronization/ analog output/ nurse call port:
When the user selects Analog Output, the monitor outputs the
waveform through the auxiliary output port. When the user
selects Defibrillation, the monitor outputs the defibrillator
synchronization signal through the auxiliary output port. When
the port is used as nurse call port, it is connected to the call
system. When there is an alarm, the monitor outputs nurse call
signal to notify the nurse.
6 Anti-theft lock interface
7 Heat sink
8 Speaker
9 Equipotential grounding terminal, if the monitor or other
processing unit are used in internal examinations on the heart,
ensure that the room incorporates an equipotential grounding
system to which the monitor and other processing unit have
separate connection.
10 Power Supply Inlet
11 Security lock, used to prevent the power supply cord from falling.

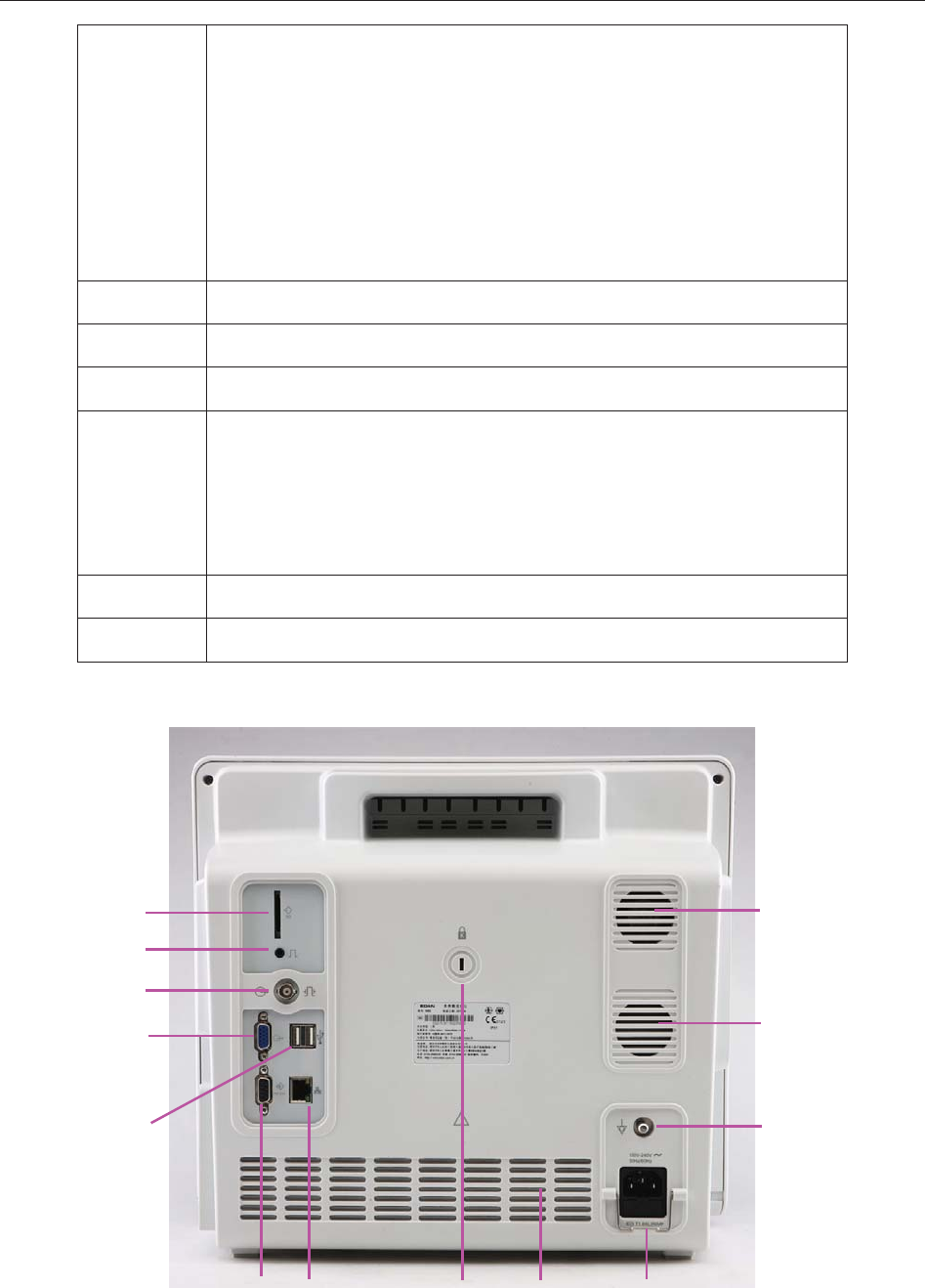

iM80
1
2
3
4
5
6
7
8
9
10
11
12
13
