Series 8700 / 8800 Unitized Curtain Wall Installation Instructions

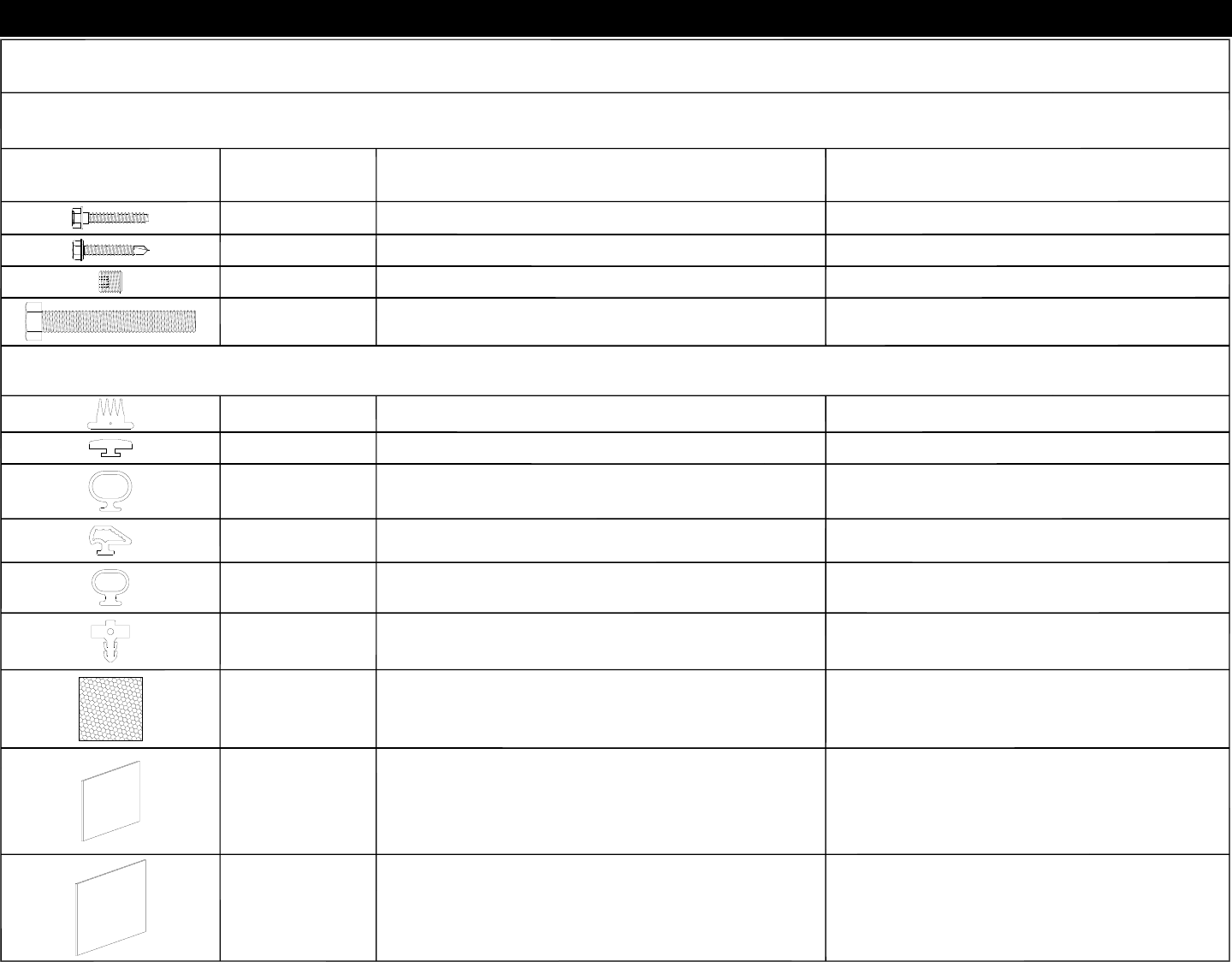

Section 2 - Parts Identification
FASTENERS
Profile
Part #
Description
SFQ5
1/4"-14 X 1 1/2" HX- SMS 18-8 B
M171
1/4"-14 X 1 1/2" HWH #3 UC TEK 3 SG
M170 1/2"-13 X 1/2" SHSS W/ CP - STEEL
M169
1/2"-13 X 3 1/2" HX-MS 18-8 (FULL THREAD)
WC19
HORIZONTAL STACK JOINT SEAL GASKET
Material
60 SHORE "A" DURO BLACK EPDM
LC23
HORIZONTAL STACK SPACER GASKET BLACK RIGID PVC
WC20
FIN BAR BULB GASKET 70 SHORE "A" DURO BLACK EPDM
WC21
VERTICAL STACK JOINT SEAL GASKET 60 SHORE "A" DURO BLACK SILICONE
WVD2
90° CORNER AIR SEAL GASKET 70 SHORE "A" DURO BLACK EPDM
WC16
FIN BAR PRESET ISOLATOR GASKET 85 SHORE "A" DURO BLACK SILICONE
HC07
FOAM CAULK BACKER 3/4” X 3/4” X 8” L-200 MINICELL FOAM CAULK BACKER
HC08
SSG STACK JOINT GUTTER SPLICE
GUTTER SPLICE 4 13/16” X 4 13/16” X 1/16”
50 SHORE "A" DURO BLACK SILICONE
HC09
CAPTURED STACK JOINT GUTTER SPLICE
GUTTER SPLICE 5 1/4” X 5 1/4” X 1/16”
50 SHORE "A" DURO BLACK SILICONE
ACCESSORIES
