Dimensions

Model
Number
Diag.
Size
Aspect
Ratio
Case Length
(A)
View Width
(A1)
Screen
Width (A2)
A3
Overall
Height (B)
View Height
(B1)
Screen
Height (B2)
B3
End Cap
Width (C)
C1 C2
End Cap
Height (D)
Minimum
Height (E)
F G
F60NWV 60" 4:3 1410 1219 1295 1380 1944 914 1849 915 118 400 180 95 1290 198 80
F72NWV 72" 4:3 1661 1463 1539 1631 2127 1097 2032 915 118 400 180 95 1290 324 80
F84NWV 84" 4:3 1891 1707 1783 1861 2310 1280 2215 915 118 400 180 95 1590 246 80
F100NWV 100" 4:3 2224 2032 2108 2194 2594 1524 2459 915 118 500 180 95 1620 1087 50
F120NWV 120" 4:3 2629 2438 2514 2599 3077 1829 2937 1093 126 500 190 100 1980 1290 50
F135NWV 135" 4:3 2925 2743 2819 2895 3305 2057 3165 1093 126 500 190 100 1980 408 50
F150NWV 150" 4:3 3235 3048 3124 3205 3407 2286 3267 966 126 500 190 100 1980 720 50
F80NWH 80" 16:9 1958 1771 1847 1928 2026 996 1931 915 118 400 180 95 1290 285 80
F84NWH 84" 16:9 2041 1860 1936 2011 2076 1046 1981 915 118 400 180 95 1290 230 80
F100NWH 100" 16:9 2401 2214 2290 2371 2315 1245 2180 915 118 500 180 95 1620 1176 50
F120NWH 120" 16:9 2845 2657 2733 2815 2742 1494 2602 1093 126 500 190 100 1980 1398 50
F135NWH 135" 16:9 3177 2989 3065 3147 2929 1681 2789 1093 126 500 190 100 1980 464 50
F150NWH 150" 16:9 3510 3321 3397 3480 3115 1867 2975 1093 126 500 190 100 1980 722 50
F56NWX 56" 16:10 1410 1206 1295 1380 1792 754 1697 915 118 400 180 95 1290 198 80
F68NWX 68" 16:10 1661 1465 1539 1631 1944 915 1849 915 118 400 180 95 1290 324 80
F80NWX 80" 16:10 1891 1723 1783 1861 2097 1077 2002 915 118 400 180 95 1290 246 50
F95NWX 95" 16:10 2224 2046 2108 2194 2340 1278 2205 915 118 500 180 95 1620 1087 50
F60NWV 60" 4:3 55.5 48.0 51.0 54.3 76.6 36.0 72.8 36.0 4.6 15.7 7.1 3.7 50.8 7.8 3.1
F72NWV 72" 4:3 65.4 57.6 60.6 64.2 83.8 43.2 80.0 36.0 4.6 15.7 7.1 3.7 50.8 12.7 3.1
F84NWV 84" 4:3 74.4 67.2 70.2 73.3 91.0 50.4 87.2 36.0 4.6 15.7 7.1 3.7 62.6 9.7 3.1
F100NWV 100" 4:3 87.6 80.0 83.0 86.4 102.1 60.0 96.8 36.0 4.6 19.7 7.1 3.7 63.8 42.8 2.0
F120NWV 120" 4:3 103.5 96.0 99.0 102.3 121.1 72.0 115.6 43.0 5.0 19.7 7.5 3.9 78.0 50.8 2.0
F135NWV 135" 4:3 115.2 108.0 111.0 114.0 130.1 81.0 124.6 43.0 5.0 19.7 7.5 3.9 78.0 16.0 2.0
F150NWV 150" 4:3 127.4 120.0 123.0 126.2 134.1 90.0 128.6 38.0 5.0 19.7 7.5 3.9 78.0 28.3 2.0
F80NWH 80" 16:9 77.1 69.7 72.7 75.9 79.8 39.2 76.0 36.0 4.6 15.7 7.1 3.7 50.8 11.2 3.1
F84NWH 84" 16:9 80.4 73.2 76.2 79.2 81.8 41.2 78.0 36.0 4.6 15.7 7.1 3.7 50.8 9.1 3.1
F100NWH
100"
16:9
94.5
87.2
90.2
93.3
91.1
49.0
85.8
36.0
4.6
19.7
7.1
3.7
63.8
46.3
2.0

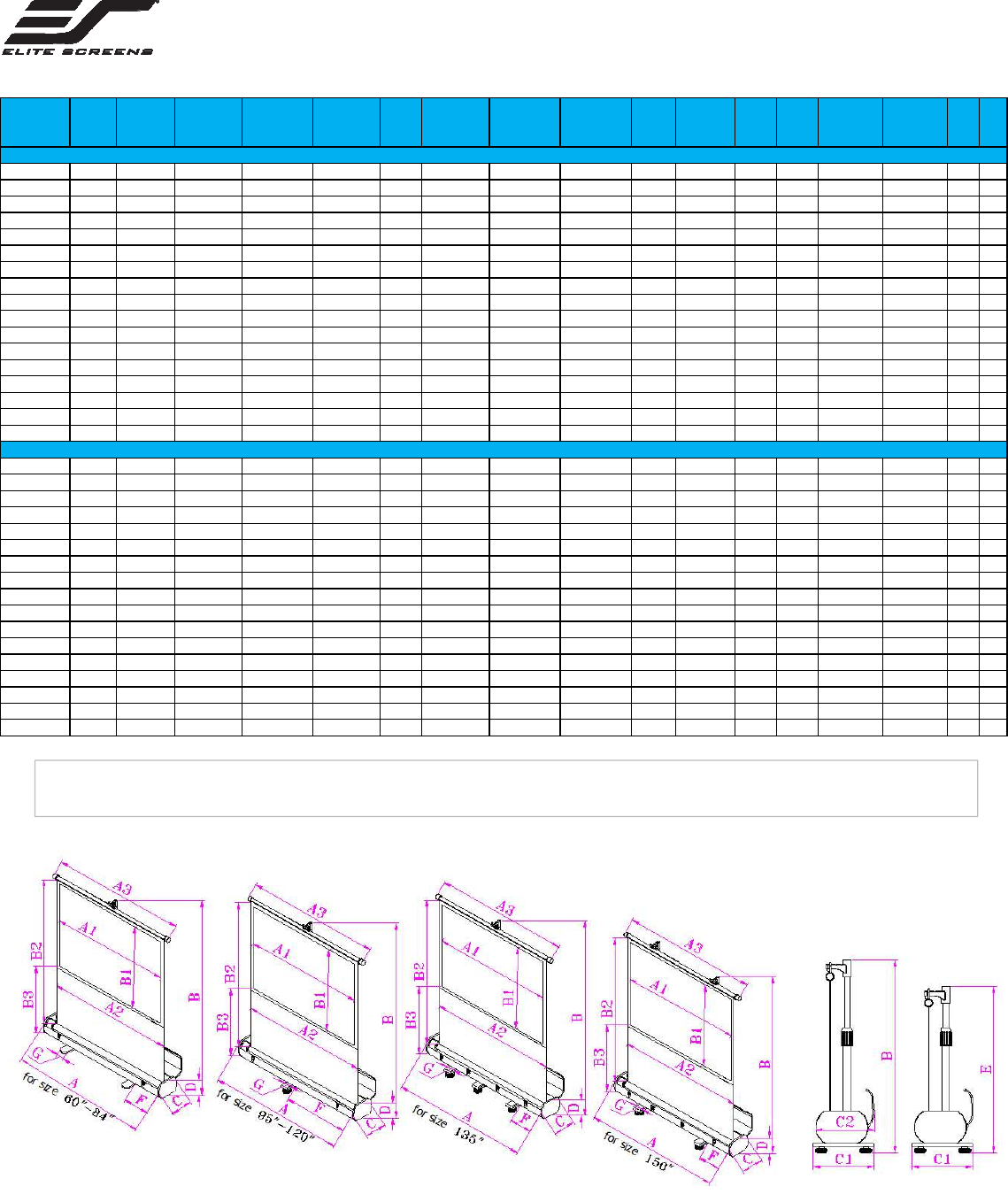

ezCinema Series Dimensions Table
Unit: mm
Unit: Inches
Updated 11/15/16 - DR www.elitescreens.com
F100NWH
100"
16:9
94.5
87.2
90.2
93.3
91.1
49.0
85.8
36.0
4.6
19.7
7.1
3.7
63.8
46.3
2.0
F120NWH 120" 16:9 112.0 104.6 107.6 110.8 107.9 58.8 102.4 43.0 5.0 19.7 7.5 3.9 78.0 55.0 2.0
F135NWH 135" 16:9 125.1 117.7 120.7 123.9 115.3 66.2 109.8 43.0 5.0 19.7 7.5 3.9 78.0 18.2 2.0
F150NWH 150" 16:9 138.2 130.7 133.7 137.0 122.6 73.5 117.1 43.0 5.0 19.7 7.5 3.9 78.0 28.4 2.0
F56NWX 56" 16:10 55.5 47.5 51.0 54.3 70.6 29.7 66.8 36.0 4.6 15.7 7.1 3.7 50.8 7.8 3.1
F68NWX 68" 16:10 65.4 57.7 60.6 64.2 76.5 36.0 72.8 36.0 4.6 15.7 7.1 3.7 50.8 12.7 3.1
F80NWX 80" 16:10 74.4 67.8 70.2 73.3 82.6 42.4 78.8 36.0 4.6 15.7 7.1 3.7 50.8 9.7 2.0
F95NWX 95" 16:10 87.6 80.6 83.0 86.4 92.1 50.3 86.8 36.0 4.6 19.7 7.1 3.7 63.8 42.8 2.0
Note: Data error ±1"
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any
structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held
responsible or be otherwise liable for faulty installations.
