Model
Screen Diag. &
Aspect Ratio
Length of LED
Strip (A)
Width of
LED Strip
(A1)
Height of
LED Lights
(A2)
Distance
Between LED
Lights (A3)
Length of
Power Cord
(A4)
N.W
(KGS)
G.W
(KGS)
ZLED92H 92"(16:9) 7500 10 2 33 1250 0.49 0.71 215 205 67
ZLED100H 100"(16:9) 7500 10 2 33 1250 0.49 0.71 215 205 67
ZLED110H 110"(16:9) 8500 10 2 33 1250 0.5 0.72 215 205 67
ZLED120H 120"(16:9) 8500 10 2 33 1250 0.5 0.72 215 205 67
ZLED135H 135"(16:9) 10000 10 2 33 1250 0.52 0.74 215 205 67
ZLED150H 150"(16:9) 11000 10 2 33 1250 0.53 0.75 215 205 67
Model
Screen Diag. &
Aspect Ratio
Length of LED
Strip (A)
Width of
LED Strip
(A1)
Height of
LED Lights
(A2)
Distance
Between LED
Lights (A3)
Length of
Power Cord
(A4)
N.W
(lbs)
G.W
(lbs)
ZLED92H 92"(16:9) 295.3 0.4 0.1 1.3 49.2 1.1 1.6 8.5 8.1 2.6
ZLED100H 100"(16:9) 295.3 0.4 0.1 1.3 49.2 1.1 1.6 8.5 8.1 2.6
ZLED110H 110"(16:9) 334.6 0.4 0.1 1.3 49.2 1.1 1.6 8.5 8.1 2.6
ZLED120H 120"(16:9) 334.6 0.4 0.1 1.3 49.2 1.1 1.6 8.5 8.1 2.6
ZLED135H 135"(16:9) 393.7 0.4 0.1 1.3 49.2 1.1 1.6 8.5 8.1 2.6
ZLED150H 150"(16:9) 433.1 0.4 0.1 1.3 49.2 1.2 1.7 8.5 8.1 2.6
Note: Data Error be ±1"
*The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with
any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be
held responsible or be otherwise liable for faulty installations.

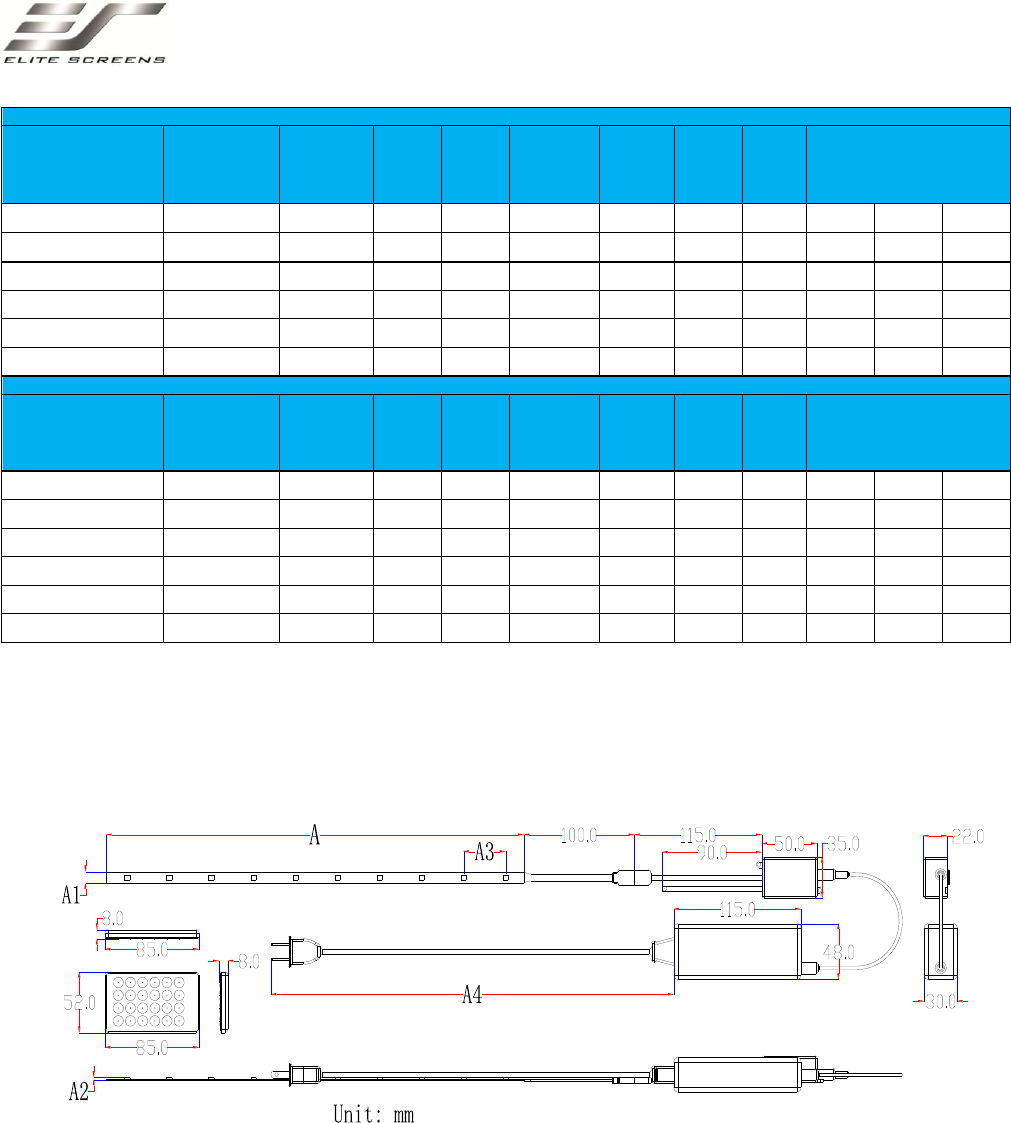

LED Kit Dimensions Table
Packing Dimension
( L x W x H)
Packing Dimension
( L x W x H)
Unit: mm
Unit: inch
Updated 10/7/2015 www.elitescreens.com
