Technical Specifications

© 2019 Eljer
B-E13
BY AMERICAN STANDARD
spec_0910160N/ST-XXB Diplomat rf compl Rev 7/19

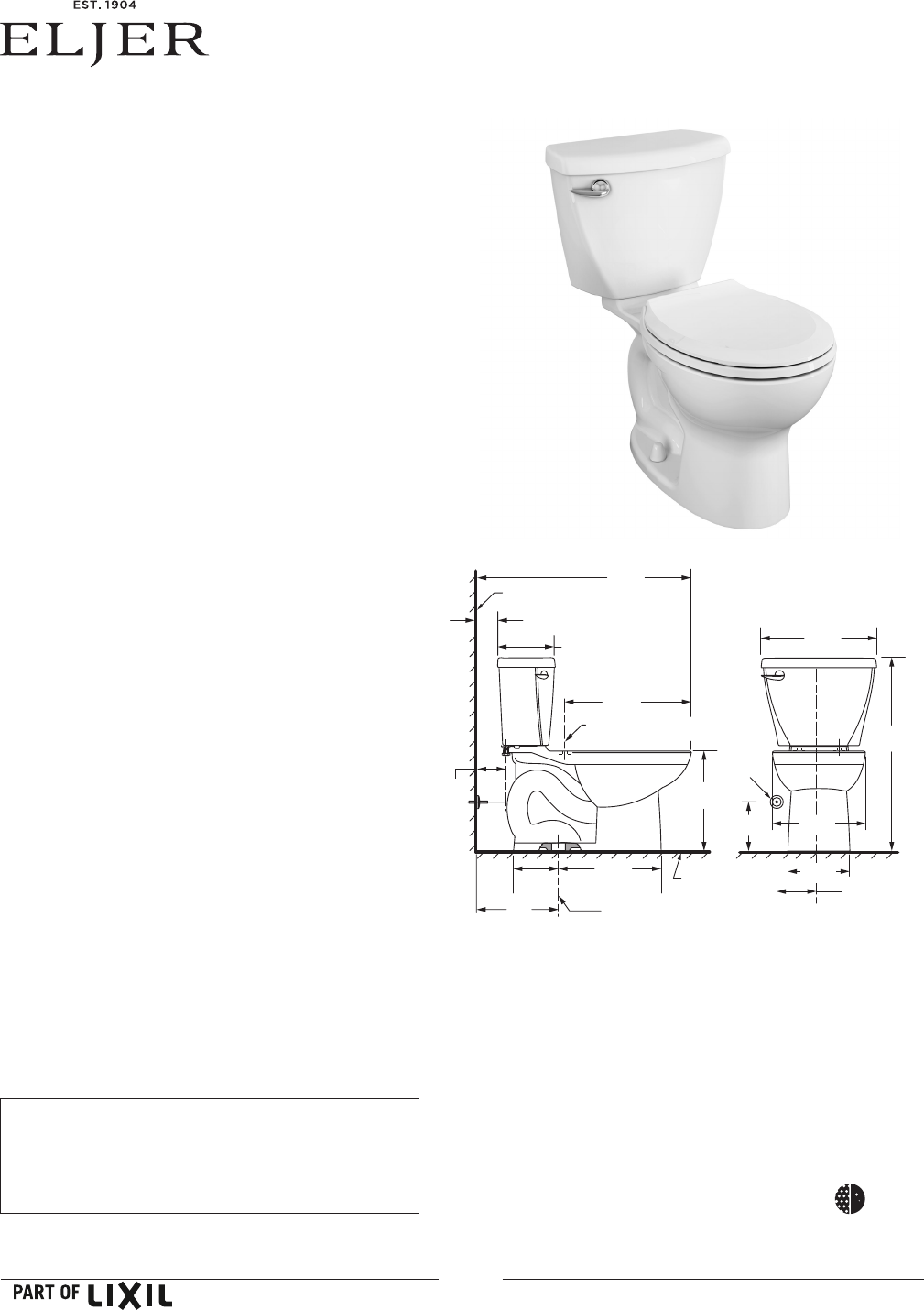

Diplomat
™
Round Front Complete Toilet
VITREOUS CHINA WITH EVERCLEAN®
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM
DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF
OUTLET.
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE
SUGGESTED.SUPPLY NOT INCLUDED WITH FIXTURE AND
MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
Diplomat™ Round Front
Complete Toilet With Everclean
®
❑ 0910160N/ST-XXB
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• 12" (305mm) rough-in
• Space saving round front siphon action
jetted bowl
• Fully-glazed 2-1/8" trapway with 2" ball pass
• Generous 9" x 8" water surface area
• Oversized 3" flush valve with chemical
resistant flapper
• EverClean® surface inhibits the growth
of stain and odor-causing bacteria, mold,
and mildew on the surface
• Chrome-plated handle
• Speed Connect® tank-to-bowl coupling system
• PowerWash® Rinse powerfully rinses the bowl
with pressurized water with each flush
• Sanitary dam on bowl with four point
tank stabilization
• Includes everything you need, including
easy step-by-step manual for simple
do-it-yourself installation
• Includes a plastic, color-matched,
slow-close toilet seat
• 100% factory flush tested
• Limited Lifetime Warranty on chinaware,
5-year warranty on mechanical parts,
1-year warranty on seats
Nominal Dimensions:
28-1/4" x 17-1/4" x 28-7/8"
(718 x 438 x 733mm)
Compliance Certifications -
Meets or Exceeds the Following
Specifications:
• ASME A112.19.2/CSA B45.1
for Vitreous China Fixtures
12"
(305mm)
FINISHED WALL
FINISHED
FLOOR
C/L OF OUTLET
SUPPLY
AS
REQ'D.
28-1/4"
(718mm)
16-3/8"
(416mm)
28-7/ 8"
(733mm)
*15"
(381mm)
13-1/8"
(333mm)8-1/2"
(216mm)
13-7/ 8"
(352mm)
9-1/4"
(235mm)
8-1/2"
(216mm)
1"
±
1/4"
(25mm
± 6mm)
4"
(102mm)
17-1/4 "
(438mm)
*8"
(203mm)
C/L OF SEAT POST HOLES
5-1/2" (140mm CENTERS)
*6"
(152mm)
To Be Specified:
❏ Color:
❏ White ❏ Biscuit
❏ Supply with stop:
EVERCLEAN®
