Gold Tuba Installation Guide
MAN-G-TUBIG-EC (Ver. 1.201)
|www.elmomc.com
36
Table of Contents
7.5.1. Incremental Encoder

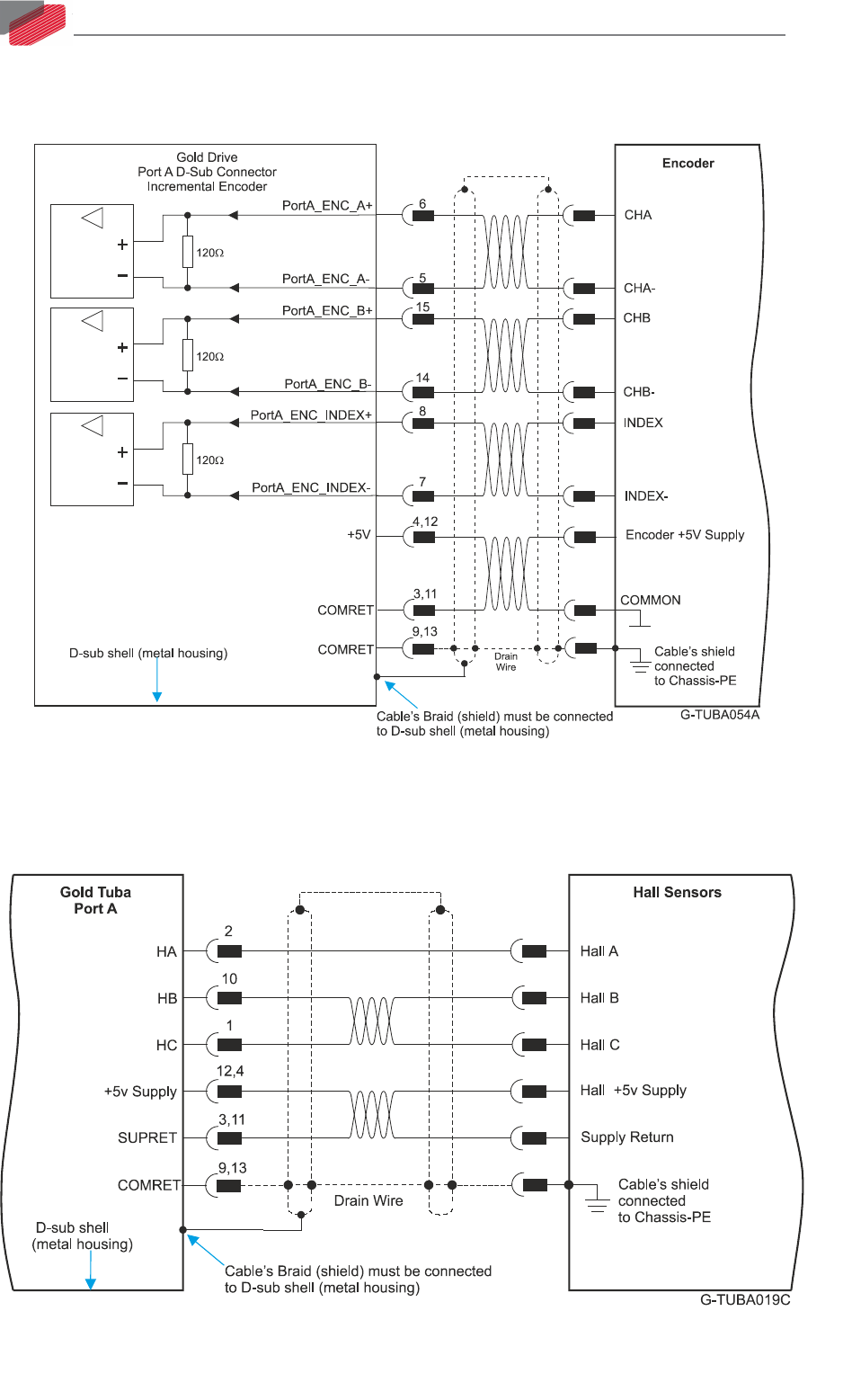

The following figure describes the connections at Port A for the Incremental encoder.
Figure 15: Port A D-Type Incremental Encoder Input – Recommended Connection Diagram
7.5.2. Hall Sensor
The following figure describes the connections at Port A for the Hall Sensor.
Figure 16: Hall Sensor Connection Diagram
