Gold Tuba Installation Guide
MAN-G-TUBIG-EC (Ver. 1.201)
|www.elmomc.com
41
Table of Contents
7.6.1. Incremental Encoder

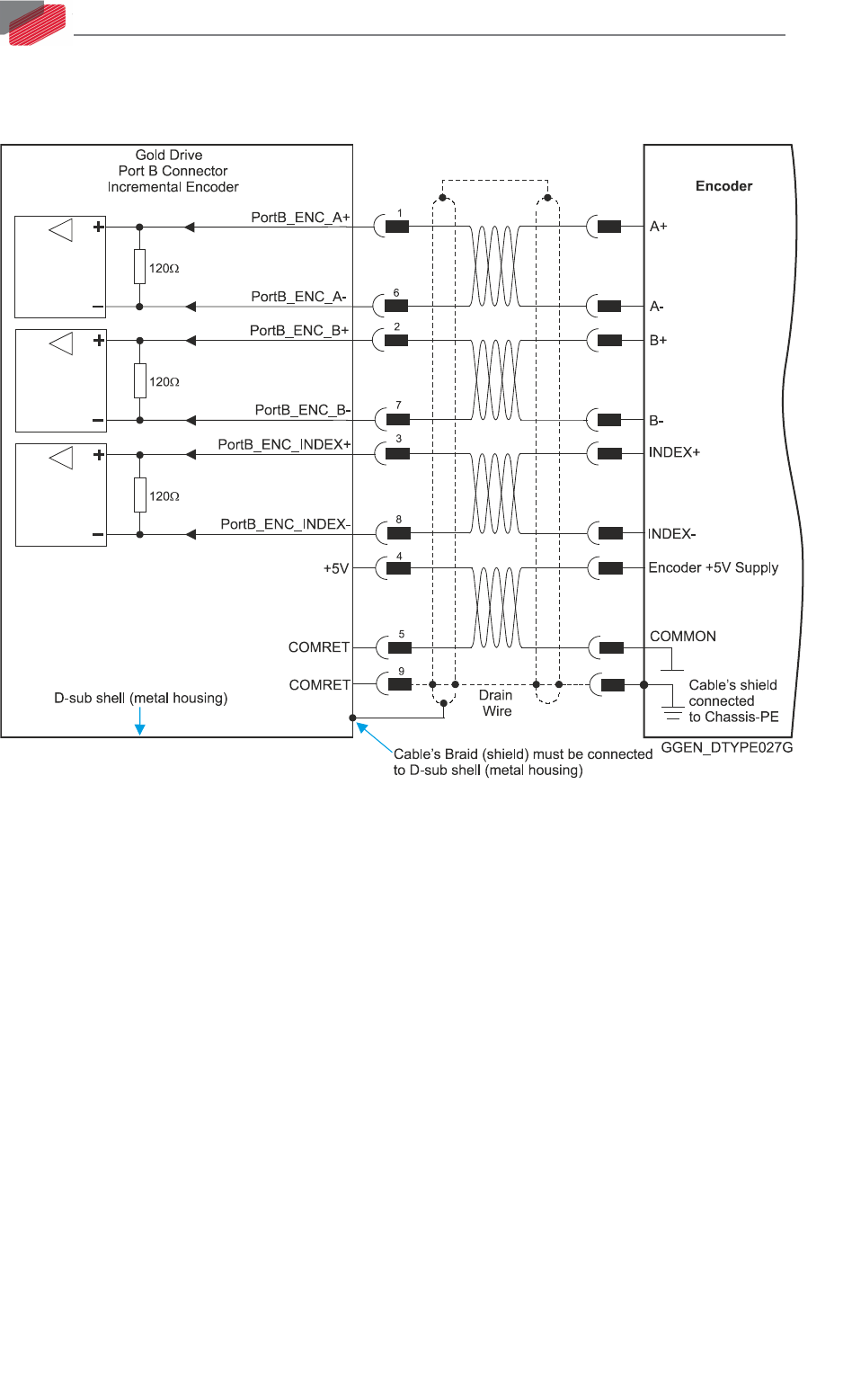

The following figure describes the connections at Port B for the Incremental encoder.
Figure 20: Port B Incremental Encoder Input Recommended D-Type Connection Diagram
