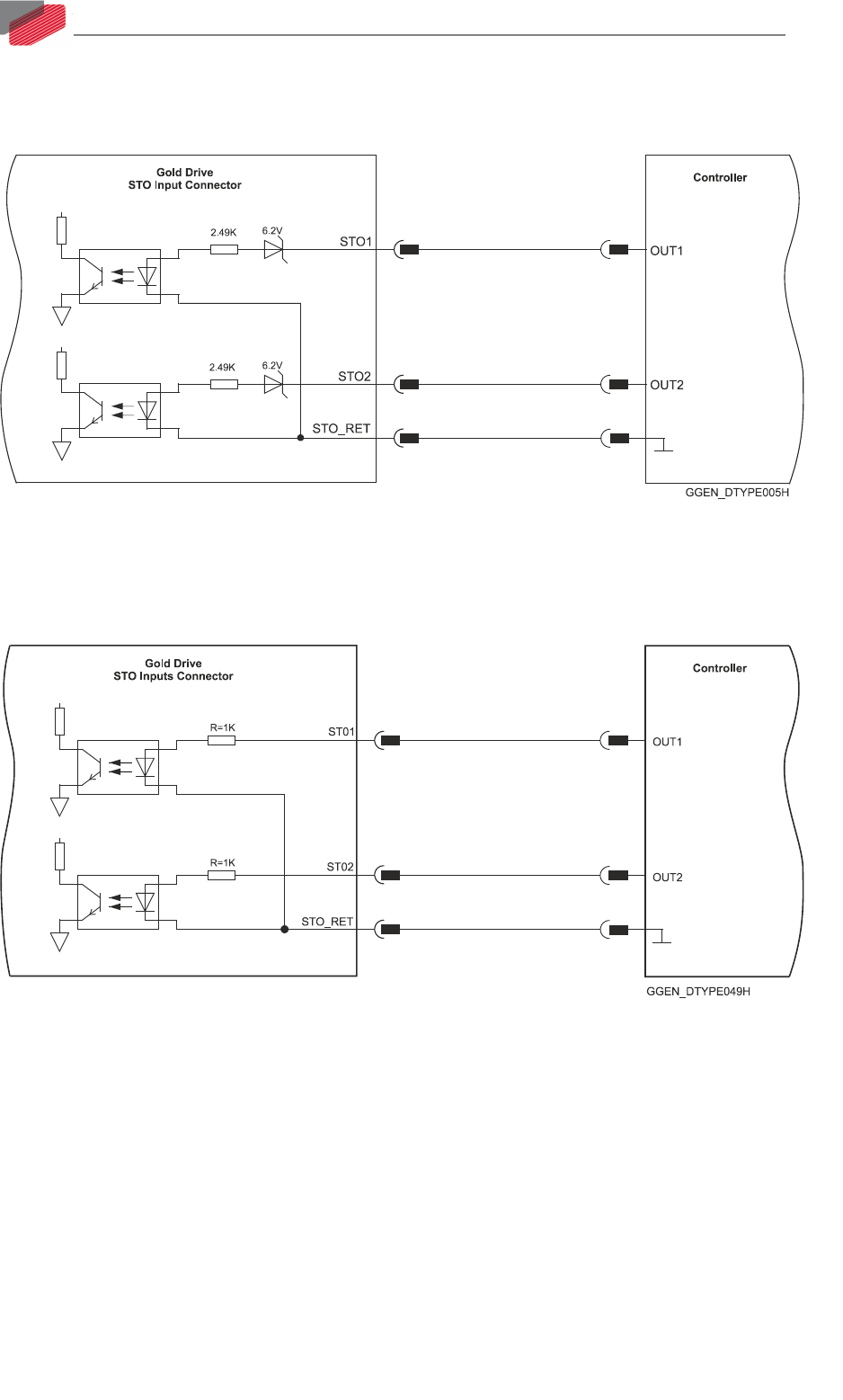

The following circuits describe the STO wiring options.
7.8.1. Source Mode PLC Voltage Level Input
Figure 25: STO Input Connection – PLC Source Option
Both STO_RET are internally shorted.
7.8.2. TTL Mode TTL Voltage Level Input
Figure 26: STO Input Connection TTL Option
