Gold Tuba Installation Guide
MAN-G-TUBIG-EC (Ver. 1.201)
|www.elmomc.com
52
Table of Contents
7.9.1. Digital Input and Output TTL Mode

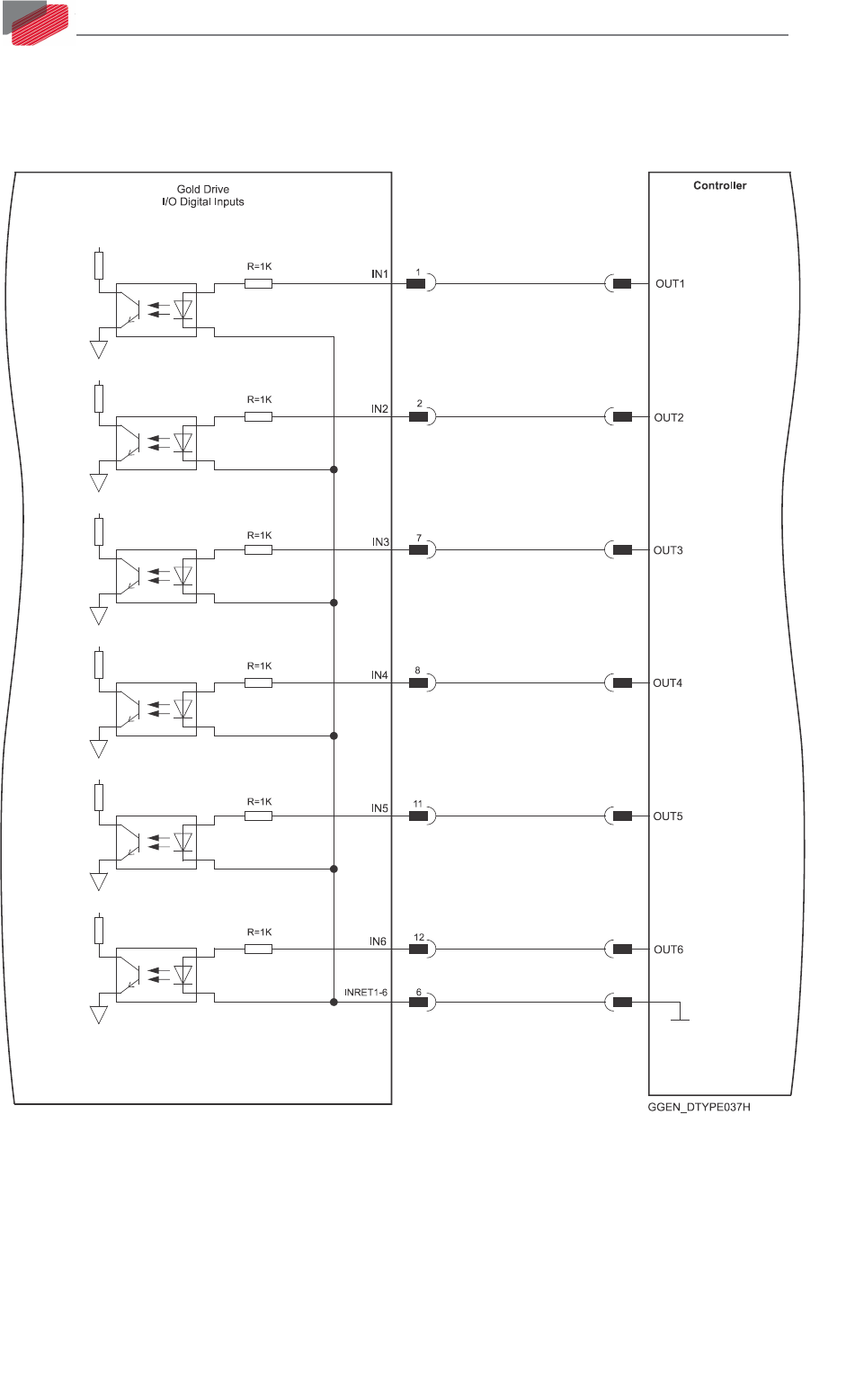

The following figure describes the connections at the I/O Port for the Digital Input and Output TTL
Mode.
Figure 28: Digital Input TTL Mode D-Type Connection Diagram
