7.9.2. Digital Input and Output PLC Source Mode
The following figure describes the connections at the I/O Port for the Digital Input and Output PLC
Mode.

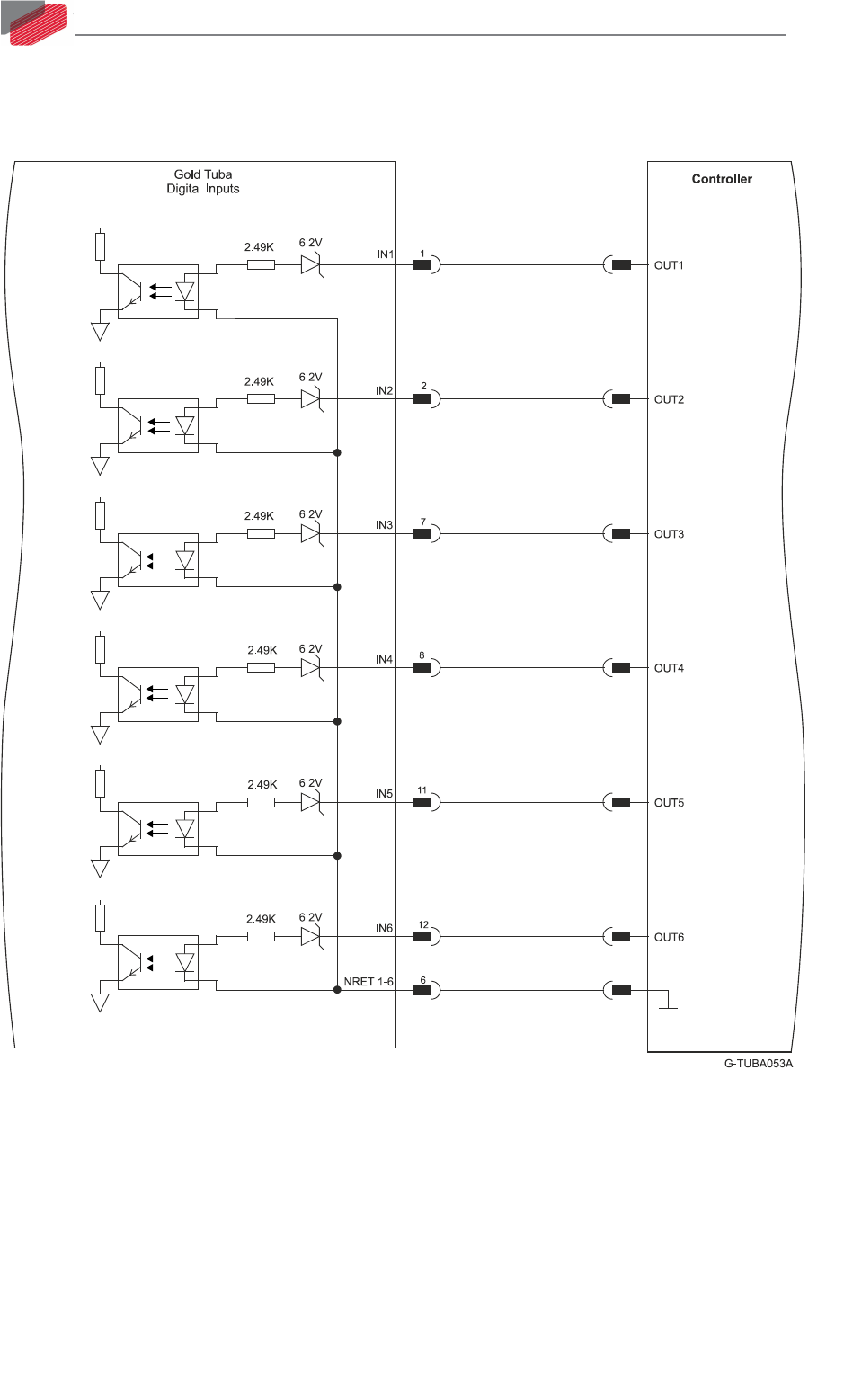

Figure 30: Digital Input D-Type Connection Diagram – Source PLC Option
