LP/NATURAL GAS SAFETY PILOT KIT

MODEL: CVS-303

Supplemental Installation Instructions for use on

Emberglow Natural Gas Vented Log Sets

FOR INFRARED BURNER SYSTEMS ONLY

NOTE: This kit is for Natural Gas and L.P. Gas applications. For L.P. or Propane Gas installation see separate

instructions packaged with necessary hardware. (Do not use the Natural Gas orice supplied with this kit on

L.P. or Propane Gas Installations as improper combustion will occur.

IMPORTANT

Read and follow all instructions carefully as these supplemental Pilot Assembly instructions are to be used in

conjunction with the General Installation Instructions supplied with all Emberglow Natural Gas log sets.

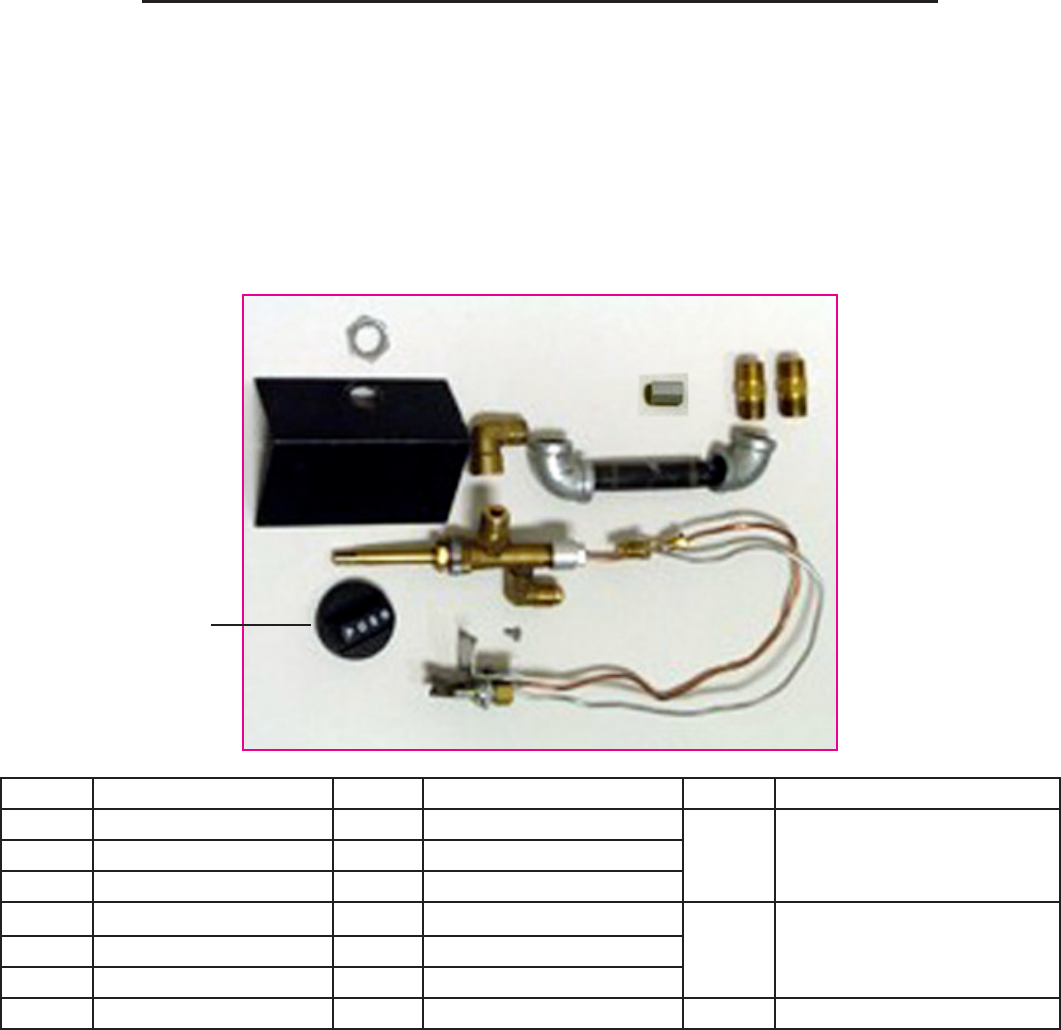

PARTS LIST & ILLUSTRATION

Part No. Description Part No. Description Part No. Description

1 Control Knob 12 Pilot Orice - Natural Gas

20a

3/8” Natural Gas Orice -

18” Small Center Hole

3 Gas Control Valve 14 Pilot Supply Line Nut

5 Thermocouple Lead 15 Heat Shield

6 Pilot Gas Supply Line 16 Lock Nut

20b

3/8” Natural Gas Orice -

24” & 30” Large Center Hole

7 Pilot Burner 17 90 Degree Street Elbow

8 Pilot Bracket 18 3” Pipe Nipple

9 Sheet Metal Screw (1) 19 3/8” Female Elbow (2) 21 3/8 Flare to 3/8 NPT

National Code requirements mandate the use of a Pilot Safety Valve on all L.P. or Propane gas

applications. These regulations must be followed on all installations of this type.

Summary of content (8 pages)

PAGE 1
LP/NATURAL GAS SAFETY PILOT KIT MODEL: CVS-303 Supplemental Installation Instructions for use on Emberglow Natural Gas Vented Log Sets FOR INFRARED BURNER SYSTEMS ONLY NOTE: This kit is for Natural Gas and L.P. Gas applications. For L.P. or Propane Gas installation see separate instructions packaged with necessary hardware. (Do not use the Natural Gas orifice supplied with this kit on L.P. or Propane Gas Installations as improper combustion will occur.
PAGE 2
SINGLE, DUAL & TOPSIDE SYSTEMS (For Infrared Systems See Page 3) STOP BEFORE proceeding with these instructions verify the type of log set you have. Is it a DUAL BURNER Set (Models MO18NG, MO24NG, SH18NG, SH24NG, CSO30NG) OR an INFRARED Set (Models GO18TIR or GO24TIR)? 1. If a DUAL BURNER Set proceed with the instructions beginning below through page 3. 2. If an INFRARED Set proceed with instructions starting on page 4 continuing through page 5.
PAGE 3
Installation of Natural Gas Pilot Valve (cont.) F. Figure 6 Connect the 90 degree street elbow (Part #17) to the 3/8” female elbow. (See Figure 6) G. Slide the hole in the heat shield (Part #15) over the 3/8” NPT threads on the Gas Control Valve (Part # 3). (See Figure 7) H. Then secure the heat shield in place with the lock nut (Part # 16). (See Figure 8) I. Attach the control valve & heat shield assembly to the 90 degree street Elbow. (See Figures 9 & 10) J.
PAGE 4
Installation of Natural Gas Pilot Valve (cont.) M. Carefully bend the supply line in a smooth 90 degree angle to prevent the line from being kinked. (See Figure 14) Figure 14 N. Connect control knob (Part # 1) to gas control valve stem. (See Figures 15 & 16) O. Place the assembled Burner Pan with the Gas Control Valve in the center of the fireplace. P.
PAGE 5
Installation for infrared burner systems Valve Body Assembly 1. Slide the hole in the heat shield over the 3/8” NPT threads on the Gas Control valve (Part # 3). (See Figure 17) Figure 17 2. Then secure the heat shield in place with the lock nut (Part # 16). (See Figure 18) 3.. Attach the 3/8” Flare to 3/8” NPT Connector (Part # 21) to the Gas Control Valve. (See Figure 19) NOTE: This connector fitting has two (2) different thread patterns and will only install one way. 4.
PAGE 6
Valve Body Assembly (cont.) 7. Attach pilot gas supply line (Part # 6) to the bottom of the gas control Figure 23 valve. Care should be taken not to kink the tubing which would restrict gas flow to the Pilot Burner. (See Figure 23) 8. Carefully bend the supply line in a smooth 90 degree angle to prevent the line from being kinked. (See Figure 24) 9. Connect control knob (Part # 1) to gas control valve stem. (See Figures 25 & 26) Figure 24 NOTE: Tighten all fittings securely with a wrench. 10.
PAGE 7
LIGHTING YOUR GAS LOGS WITH THE SAFETY PILOT KIT 1. Light Pilot Turn Control Knob to Pilot Position (Figure 17), push knob fully in and hold a long lighted match at the Pilot Burner Assembly. After lighting the Pilot, hold the Control Knob in the ignition position Figure 27-Rotate control valve to Pilot Position for approximately 45 seconds. This is an adequate time for the Thermocouple to reach an operational temperature in order to keep the Pilot lit once the Control Knob is released.
PAGE 8
LIMITED WARRANTY Limited Warranty shall apply to the original purchaser at the original installation point only. Pilot, valves and thermocouples are guaranteed for a period of one (1) year under the original manufacturers warranty. General Warranty: This warranty does not apply in the case of improper installation, neglect, accident, misuse or as a result of modifications of the original product. All costs for removal and re-installation are the expressed responsibility of the purchaser.
