1.3 Appearance and Components
1.3.1 Front Panel and Controls
The Liebert
®
GXT3
™
rack/tower and minitower models in various power ratings have the same
general appearance, controls and features (see Figure 1). The various rack/tower and minitower
models differ largely in the type of receptacles each has.

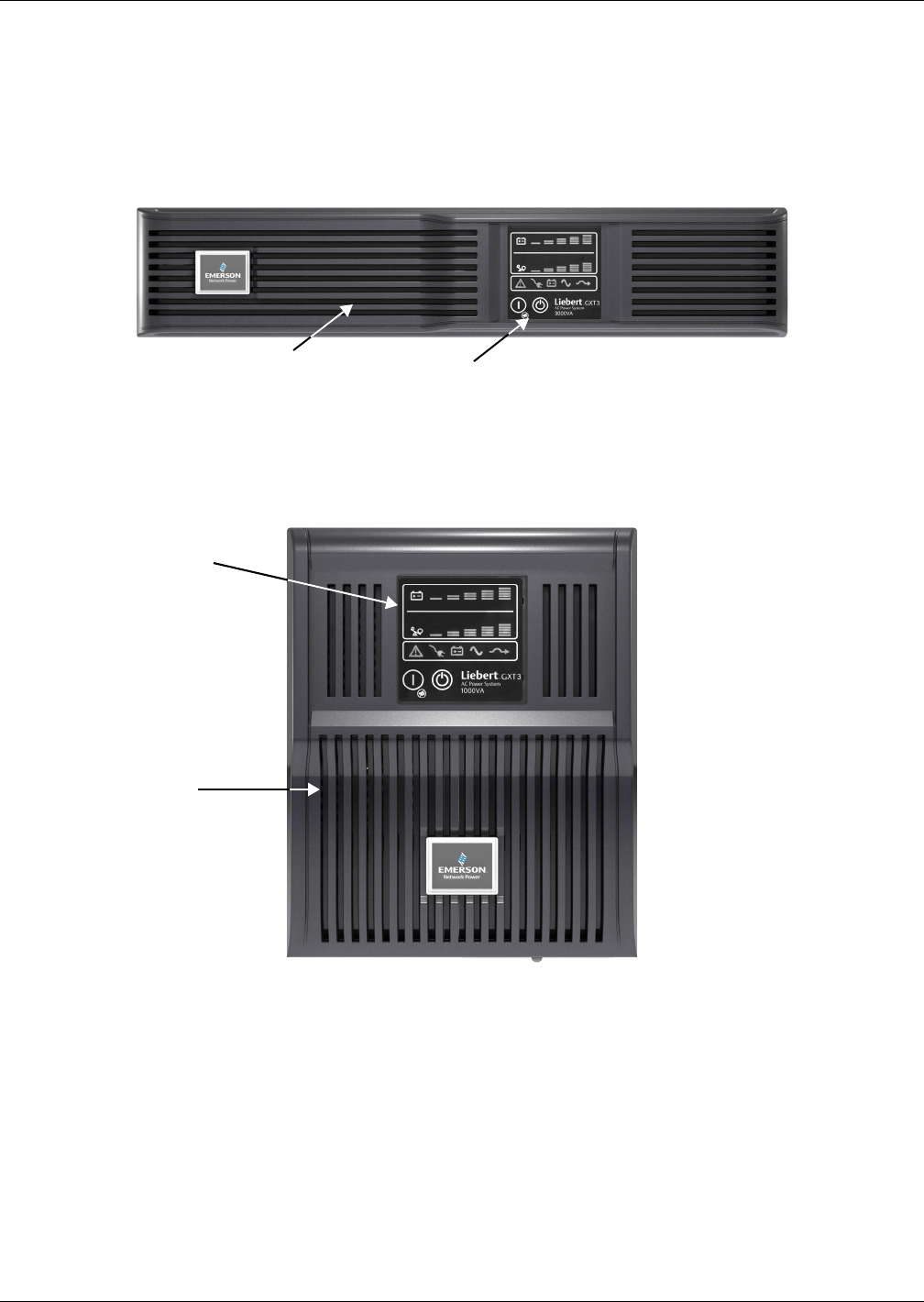

Figure 1 Liebert GXT3 rack/tower models—front view
The Liebert GXT3-1000MT120
™
has the same controls and features in a minitower arrangement (see
Figure 2).
Figure 2 Liebert GXT3 minitower—front view
1.3.2 Rear Panel Features
The rear panel of the Liebert GXT3 has these features:
•USB port
• Cooling fan
• Power output receptacles
• Input circuit breaker
• Liebert IntelliSlot
®
port
• Communication terminal block
• Input power cable
Operation and
Display Panel
Ventilation Slots
Operation and
Display Panel
Ventilation Slots
