CWGFC Product Data Sheet

D301293X012 June 2012

Remote Automation Solutions

ControlWave

GFC Gas Flow Computer

Featuring the “Express” Electronics

Platform

When requirements call for an integrated “all in one box”

chart replacement or flow computer, ControlWave

GFC,

from Emerson Process Management, is a cost effective,

competitive solution.

Unlike chart replacements, ControlWave GFC is also able to

meet your automation needs and easily supervises a two-

run metering and regulating station or plunger lift

operations at a well site.

Hardware/Packaging Features



32-bit ARM9 platform is capable of multiple flow

computing and process automation operations.



Gauge pressure or DP/P sensor assembly can be

removed and replaced independently of the “top end”

electronics.



Precision RTD interface provides very accurate

measurement.



Very low power consumption minimizes costs of

solar/battery power systems, which are also integrated

in the package.



Three serial communication ports are standard.



Standard I/O includes 2 DI/PI.



Optional I/O expansion includes 2 DI/DO, 4 DI, 2 DO, 2

High-Speed Counter Inputs, 3 AI and 1 AO.



Integral LCD with optional 25-key keypad allows you to

view and change configurable parameters on site,

without packing a PC.

 Broad selection of modem and wireless

communications options are available.

Firmware/Software Features



ControlWave GFC is pre-programmed to meet API 21.1

requirements for a two-run metering station with

networking via BSAP or Modbus.



Web-style menu pages are pre-configured for all user

operations.



Using our ControlWave Designer, IEC 61131-3

programming environment, any user or third party can

modify the standard application or create a completely

customized program and the full support from

Emerson is available every step of the way.

 Additional standard application programs will be

introduced on a continual basis.

ControlWave GFC

Application Areas

ControlWave GFC is appropriate to all applications for

“chart replacements” and flow computers, particularly

including those that require process control or extension to

two meter runs. For example:



Production wells



Injection wells



Production optimization applications



Off-shore platforms



Separation plants



Compressor stations



Storage facilities



Transmission metering stations

 Distribution/LDC metering/gate stations

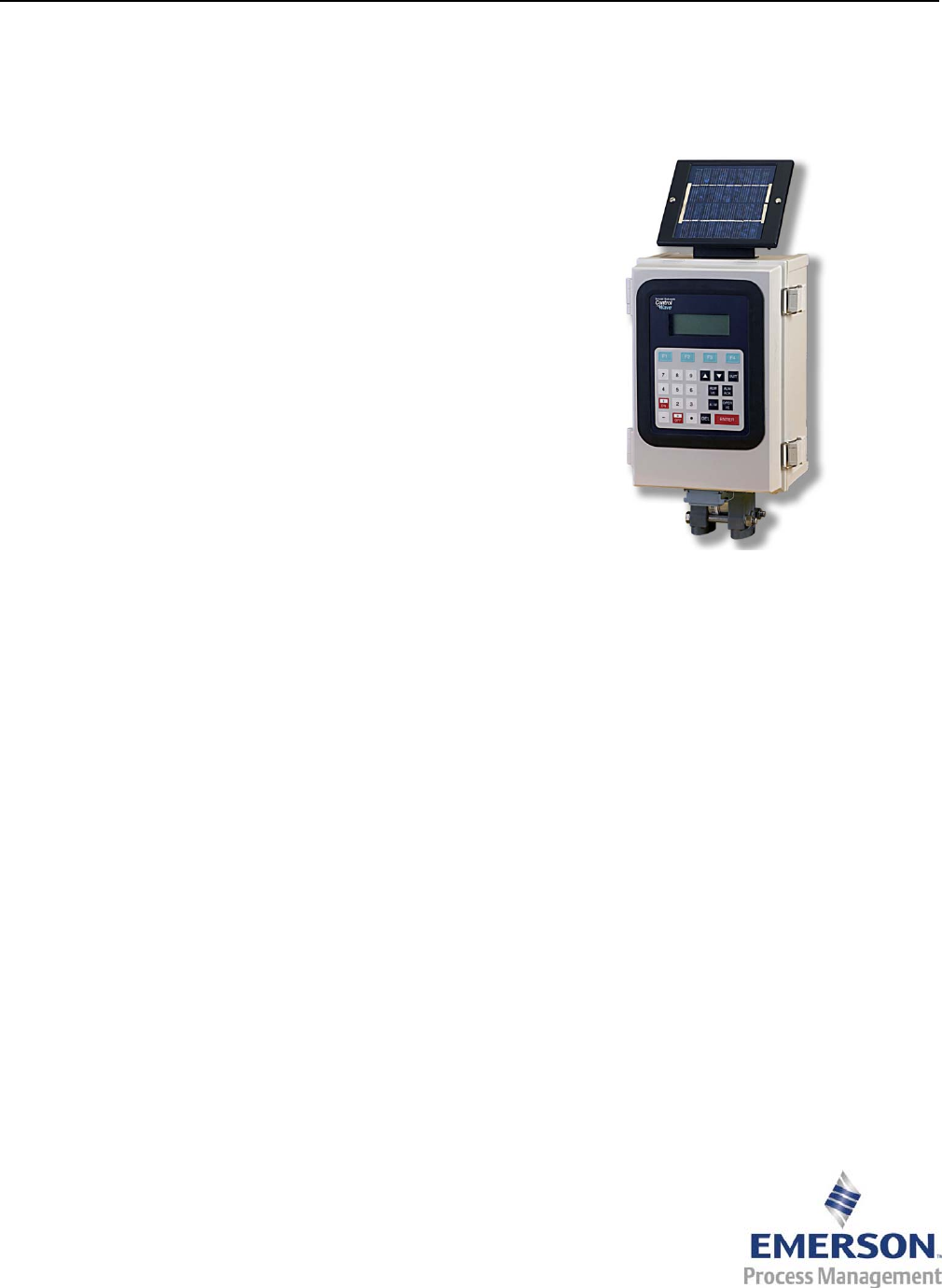

ControlWave GFC Package

Overview

ControlWave GFC is delivered in a compact Lexan enclosure

that has provisions for not only the electronics but also a

display/keypad, DP/P/T transducer assembly, battery/solar

power system, and a broad selection of modem and radio

communications options.

Summary of content (16 pages)

PAGE 1
CWGFC Product Data Sheet D301293X012 June 2012 ControlWave® GFC Gas Flow Computer Featuring the “Express” Electronics Platform When requirements call for an integrated “all in one box” chart replacement or flow computer, ControlWave® GFC, from Emerson Process Management, is a cost effective, competitive solution. Unlike chart replacements, ControlWave GFC is also able to meet your automation needs and easily supervises a tworun metering and regulating station or plunger lift operations at a well site.
PAGE 2
CWGFC June 2012 Item Descriptions and Specifications Standard equipment includes Lexan housing with 2-line LCD, single board electronics assembly, and the standard API 21.1 flow measurement application program. Standard I/O count is 2 DI/PI (Pulse Inputs). Also included in the base product are interfaces to Emerson’s gauge pressure or multivariable, DP/P sensor assembly, an RTD interface, AUX power output (e.g.
PAGE 3
CWGFC June 2012 MVT Assembly Static Pressure Orientation can be defined. The ControlWave GFC can be set to automatically sequence through this list. For a multivariable sensor assembly, you can specify whether the static pressure sensor is oriented to the right or to the left from the point-of-view of a user looking at the front of the ControlWave GFC. Following the AGA3-1992 convention, we refer to the static pressure sensor location as the “upstream” (a.k.a. “high side”) location.
PAGE 4
CWGFC June 2012 The Hourly Data Log holds one record for every contract hour. Hourly logs hold 840 entries or 35 days; this ensures that the previous period of hourly data is always resident in ControlWave GFC FLASH memory. The following items are stored in the Hourly Data Log: Overview of the Standard Application Program: Uses pre-configured web-style menu pages for user readings, configuration, and maintenance.
PAGE 5
CWGFC  Audit Trail Alarm and Event Storage ControlWave GFC keeps an Audit Trail Buffer capable of storing the most recent 500 Alarms and the most recent 500 Events. Internally, these buffers are maintained separately to prevent recurring alarms from overwriting configuration audit data. Externally, they are reported to the user as a single entity. Both operate in a circular fashion with new entries overwriting the oldest entry when the buffer is full.
PAGE 6
CWGFC June 2012 In addition, you may enter the Ro, A, and B coefficients of a custom calibrated RTD, another platinum standard or a different material (Nickel, Balco, or Copper). During the RTD calibration, you are able to set the coefficients, restore the factory default for these coefficients, and calibrate the internal reference resistor. Thermowell Options for RTD For new installations, or those lacking a thermowell, you can choose one of three lengths of thermowell for the RTD.
PAGE 7
CWGFC MDS TransNet 900 Spread Spectrum Radio Figures at 13.8 Vdc:  Receive: 115 mA  Transmit: 510 mA MDS models 4710 and 9710 Licensed, UHF Radios with figures at 13.8 Vdc:  Receive: 125 mA  Transmit: 2000 mA MDS entraNet 900 IP Radio Figures at 13.8 Vdc:  Receive: 100 mA  Transmit: 510 mA MDS iNet 900 Ethernet/IP Radio Figures at 13.
PAGE 8
CWGFC June 2012 ControlWave GFC Gas Flow Computer CPU Module ControlWave GFC Clock Backup Battery Type 32-bit ARM9TDMI RISC Core Processor, 14 MHz or 33 MHz Memory Boot 512 KB Flash 8 MB SRAM 2 MB, battery backed Battery backed Serial Real Time Clock Accuracy 1 second/day at 25ºC Speed 14 MHz or 33 MHz 300 mA-Hour Lithium Coin Cell, 9000 Hour Expected Backup Time Communications Module Communication ports COM1 (RS 232) COM2 (RS 232) COM3 (RS 232 or RS 485, 2-wire or 4-wire) Quantity 1
PAGE 9
CWGFC Pulse Counter/Discrete Inputs (on CPU Module) Discrete Inputs (optional) Discrete Outputs (optional) www.EmersonProcess.com/Remote June 2012 Quantity 2 non-interrupting inputs Type Internally sourced dry contact single ended inputs Scan Rate 1/s Input filter 20 μs Voltage range Internally sourced dry contact input - 3.3 Vdc On State <1.21 V Off State >2.07 V Input current 200 μA nominal at 3.3 V per input Surge Suppression meets ANSI/IEEE C37.
PAGE 10
CWGFC June 2012 High Speed Counter/Discrete Inputs 5,6 Analog Inputs (optional) Maximum load current 400 mA at 16 V and 400 mA at 30 V Maximum update rate Once per 250 ms Electrical isolation None Surge Suppression meets ANSI/IEEE C37.
PAGE 11
CWGFC Analog Outputs (optional) June 2012 Quantity 1 Resolution 12 bit Output configuration Selectable externally sourced 4-20 mA or 1-5 Vdc 250 Ω with 12 V external source 650 Ω with 24 V external source 1-5 Vdc at 5mA max, 11 to 30 Vdc external source Maximum update rate Once per 250 ms Accuracy 0.1% of span at 25ºC for current output, 0.1% + 3% of span at 25ºC for voltage 0.3% of span at -40 to 70ºC for current, 0.
PAGE 12
CWGFC June 2012 Clearance At least 2.5-inch space underneath for cabling Weight Minimum 4.53 kg (10 lbs.) Battery + MVT Assembly 8.39 kg (18.5 lbs.) Maximum with Radio 9.07 kg (20 lbs.) Mounting This product can be pipe-mounted, wall-mounted or direct-mounted (in the last case, Emerson recommends PGI Direct Mount manifold products); a kit for affixing to a 2 inches (5.08 cm) pipe or mast is available.
PAGE 13
CWGFC June 2012 Dimensions Integral DP/P MVT assembly and optional Pole Mount hardware are shown. www.EmersonProcess.
PAGE 14
June 2012 CWGFC Dimensions, continued Integral gauge pressure sensor and optional Pole Mount hardware are shown. 14 www.EmersonProcess.
PAGE 15
CWGFC www.EmersonProcess.
PAGE 16
CWGFC June 2012 Headquarters: Emerson Process Management Remote Automation Solutions 6005 Rogerdale Road Houston, TX 77072 U.S.A. T +1 281 879 2699 | F +1 281 988 4445 www.EmersonProcess.com/Remote Europe: Emerson Process Management Remote Automation Solutions Emerson House Kirkhill Drive Kirkhill Industrial Estate Aberdeen UK AB21 OEU T +44 1224 215700 | F +44 1224 215799 www.EmersonProcess.
