Installation Manual

Features
■ Plug-in module
■ LED indication
■ Filtering
■ Remote-sensing circuitry
■ 5 year warranty

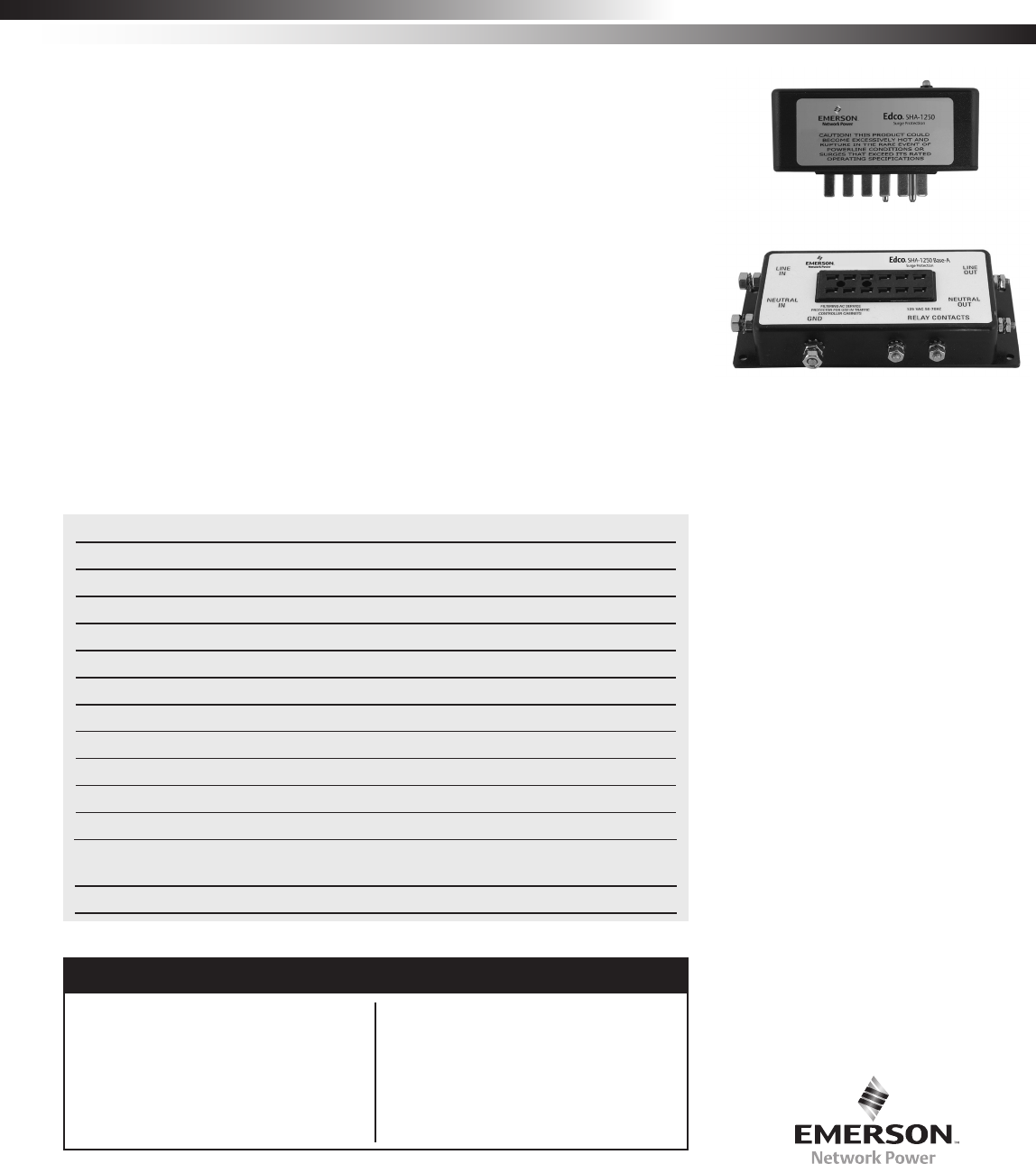

Edco SHA 1250/SHA-1250-BASE-A
120 VAC Single Phase Modular Filter with Base
The Edco SHA-1250 is an upgraded version of the Edco SHA-1210IRS. The two
models are equal in surge protection performance. The Edco SHA-1250 also
incorporates two LEDs for failure indicator in a modular package (utilizes 12-pin
Beau connector). The hardwire terminal base (Edco SHA-1250-BASE-A, ordered
separately) accommodates all wiring and the protection module is designed for
easy replacement.
The footprint of the Edco SHA-1250-BASE-A is the same as the Edco ACP-340 and
Edco SHA-1210. This makes retrotting older cabinets easy because internal wire
lengths do not have to be adjusted.
The Edco SHA-1250 offers remote sensing circuitry output that is a dry relay
contact closure suitable to interface with a modem or computer port for polling
remotely. With this feature, a central computer could detect a failed Edco
SHA-1250 at the intersection.
The Edco SHA-1250 provides excellent noise suppression over a large frequency
range. Typical noise attenuation is 10db at 10kHz, 50db at 100kHz and 90db at 1MHz.
General Technical Specifications
Operating Voltage 120 VAC
Clamping Voltage 340 VAC
Operating Current 15 A
INRUSH Current Rating 25 A for 1 hour
Peak Surge Current 45kA/Phase, 60kA/Total
Operating Frequency 47 - 63Hz
EMI Attenuation 50 dB typ
SPD Technology TMOVs w/ L-C Filter
Modes of Protection L-N, L-G, N-G
Status Indication Power On & MOVs functional
Connection Type 1/4-20 SS Stud base, plug-in module operating
Operation Temperature -40°C to +85°C
Dimensions (Inches, Module + Base)
(in / mm)
3.5˝ H x 3.125˝ W x 7.125˝ L
[88.9 x 79.4 x 181 mm]
Weight (lb / kg) 1.7 lb [0.8 kg]
(Edco SHA-1250-BASE-A, ordered separately)
Seulement le personnel qualié doit installer
ou maintenir ce systéme. Des précautions
de sécurité en électricité doivent être suivis
lors de l’installation ou de la maintenance
de cet equipement. Pour eviter tout risque
de choc électrique, débranchez et verouiller
toutes les sources d’alimentation de cet
equipement avant de.
Only qualied personnel should install or
service this system. Electrical safety pre-
cautions must be followed when installing
or servicing this equipment. To prevent risk
of electrical shock, turn off and lock out all
power sources to the unit before making
electrical connections or servicing.
V
DANGER!
