INSTRUCTION MANUAL

ProSet

2500 Series

Pneumatic Blind Rivet Tool

Summary of content (20 pages)

PAGE 1

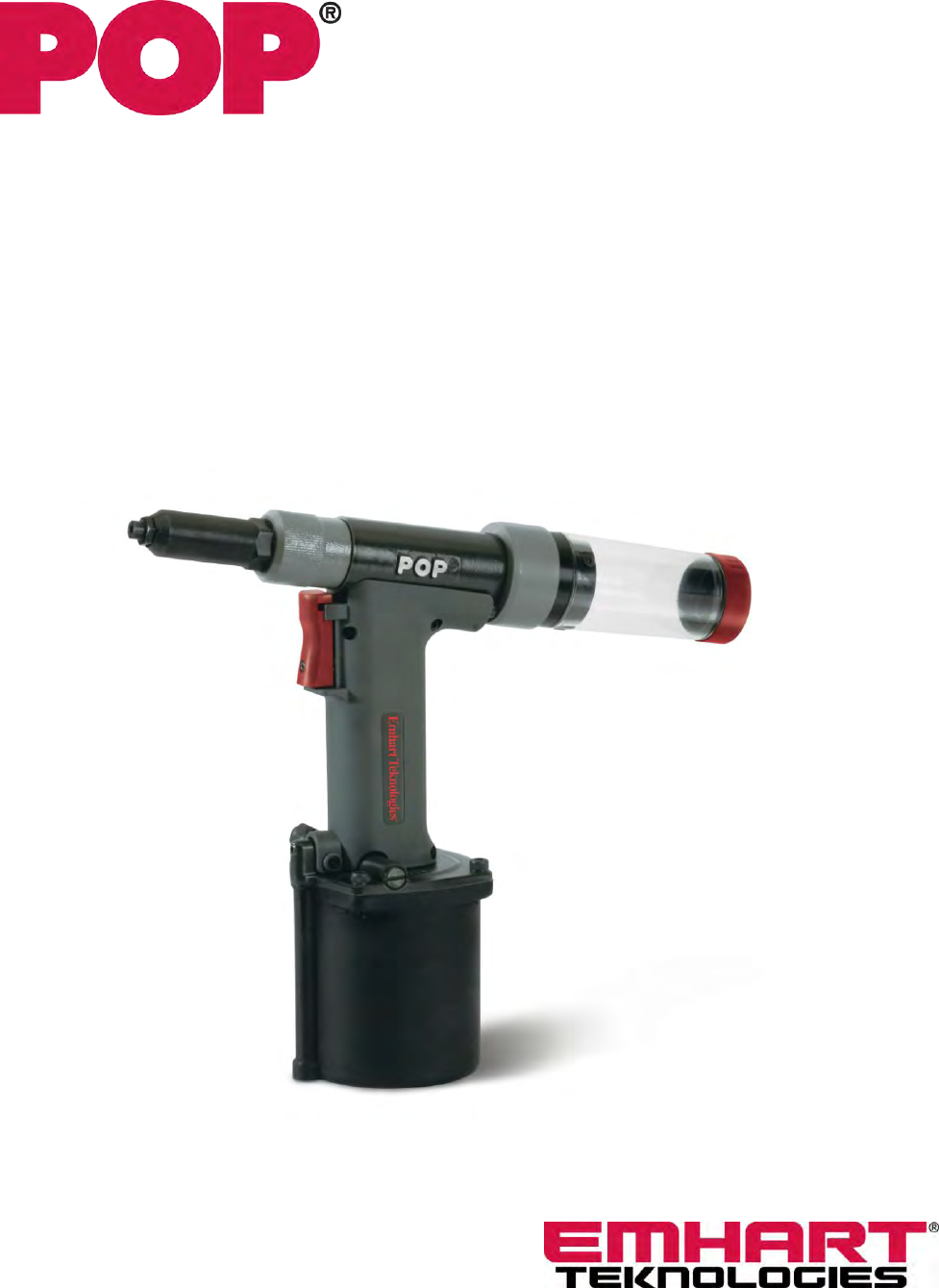

INSTRUCTION MANUAL ® ProSet 2500 Series Pneumatic Blind Rivet Tool
PAGE 2
Contents Introduction...............................................................................................................................................2 Safety Instructions....................................................................................................................................3 Specifications ...........................................................................................................................................4 Packaged Accessories.................
PAGE 3
Safety Instructions TO INSURE PROPER FUNCTIONING AND SAFE OPERATION READ THIS MANUAL CAREFULLY BEFORE SETTING UP OR OPERATING THE POP® ProSet™ 2500 SERIES TOOLS 1. DO NOT use this tool in a manner other than that recommended by Emhart Teknologies. 2. Always wear eye protection when using or when near a tool that is in use. 3. This tool is NOT designed for use in explosive atmospheres. 4. Inspect tool for damage before connecting to air supply including all air connections. 5.
PAGE 4
Specifications ProSet® 2500 ProSet® 2500MCS Weight 2.65 lbs. (1.20 kg) 2.89 lbs. (1.31 kg) Length 11.42” (290 mm) 11.97” (304 mm) Height 10.20” (259 mm) 10.20” (259 mm) 0.71” (18 mm) 0.71” (18 mm) 2110 lbs @ 90 PSI (9400 N @ 6.2 bar) 2110 lbs @ 90 PSI (9400 N @ 6.2 bar) 0.076 cu. ft. per rivet 2.47 scfm (MAX) (2.15 liters per rivet) (70 ℓ/min (MAX)) Tool stroke Pulling force Air consumption Packaged Accessories Qty Item PROSET 2500 PROSET 2500MCS Part No.
PAGE 5
ProSet® 2500 Tool Dimensions 11.42” (290 mm) 3.54” (90 mm) .811” (20.6 mm) 2.15” (54.5 mm) 1.85” (47 mm) 10.20” (259 mm) ProSet® 2500 3.11” (79 mm) 3.46” (88 mm) 11.97” (304 mm) 3.54” (90 mm) .811” (20.6 mm) 2.15” (54.5 mm) 1.85” (47 mm) 10.20” (259 mm) ProSet® 2500 MCS 3.11” (79 mm) 3.46” (88 mm) Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel.
PAGE 6
Common Nosepieces Closed End Rivet Diameter Open End 1/8” (3.2 mm) or 7/64” (2.8 mm) PRN414* HR Rivets Steel Mandrel Aluminum Mandrel Aluminum Body Steel Body PRN424 PRN434 PRN414* PRN4K Jaw Pusher FAN275-028* PRN514* PRN524 PRN534 PRN514* - - - - - PRN5K 5/32” (4.0 mm) DPN275-027* 3/16” (4.8 mm) PRN614* PRN624 PRN634 PRN614* PRN6K * Included with the tool Use FAN275-028 instead of DPN275-027 (installed) when using 7/64” (2.8mm) - 5/32” (4.0mm).
PAGE 7
ProSet® 2500 Front End Service Jaw Guide Nose Housing Nut Pulling Head Nose Housing Jaw Guide Lock Housing Adapter Wrench Flat Jaw Guide Lock motion O-Ring Pulling Head Locking Teeth. Jaw Guide teeth For optimum tool performance, Front-End maintenance should be performed regularly as per the “Preventative Maintenance Schedule”. ! Note: UNPLUG AIR SUPPLY while servicing front-end to avoid INJURY. 1. REMOVE NOSE HOUSING: 4.
PAGE 8
Mandrel Collection System (MCS) – ProSet® 2500 MCS For safety purposes, removing the Collector from the tool automatically turns the MCS suction OFF. Refitting the Collector turns the MCS suction ON. MCS suction ON MCS suction OFF Cleaning the Collector Silencer For optimum performance, the Collector Silencer should be cleaned at regular intervals as per the “Preventative Maintenance Schedule”. ! Note: UNPLUG AIR SUPPLY while servicing Collector to avoid INJURY. 1.
PAGE 9
2. RE-ASSEMBLE THE COLLECTOR : Secure Collector End (104) to Collector Body (101). Use a screwdriver or similar tool to hold the Collector End in place during re-assembly (see picture below). Place the Collector Silencer (103) onto the Collector End (104). Place Collector End Cap (105) on Collector Body End (104). Install and tighten Collector End Nut (106) on Collector End (104). Screwdriver Tool Assembly Torque Requirements Item Part No.
PAGE 10
ProSet® 2500/2500MCS Diagram Use with 4 or 5 size rivets (*) These items require Loctite® 242 adhesive. (†) These items have a specific tightening torque as indicated in the “Tool Assembly Torque Requirements” table. Page 10 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel.
PAGE 11
(*) These items require Loctite® 242 adhesive. (†) These items have a specific tightening torque as indicated in the “Tool Assembly Torque Requirements” table. Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel.
PAGE 12
ProSet® 2500 Parts List Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 44 45 46 47 48 49 50 51 54 57 60 61 62 63 64 65 66 67 68 69 70 71 72 75 Part No.
PAGE 13
Optional Parts and Kits are also available separately. Part No. Description DPN239-110 17mm Hex. Socket screw key for End Cap Adapter (DPN275-032) FAN275-132 ProSet™ 2500 Font End Extension Kit – 5.
PAGE 14
Hydraulic Oil Charging Procedure ! IMPORTANT. TOOL MUST BE DISCONNECTED FROM THE AIR SUPPLY. USE ONLY APPROVED HYDRAULIC OIL SPECIFIED IN THIS MANUAL. Fig. 1 1. Disconnect from air supply. 2. Remove Nose Housing (6) and Collector (96). 3. Remove four Socket Head Cap Screws (88) using 4mm Hex-Key wrench (accessory). (Fig. 1) 4. Turn tool upside down and remove Chamber (89). Then pull out Air Piston Assembly (57). (Fig. 2) 5. Drain the oil from the tool into a waste oil container. 6.
PAGE 15
12. When there are no more bubbles in the oil, top off the hydraulic oil in the Sleeve Lower (51) to the level of the Backup Ring (19). 13. Make sure the Jaw Guide (3) is loose (see No.7). Push the Air Piston Assembly (57) into the Sleeve Lower (51) to the half-way point. While holding the Air Piston at the half-way point, replace the Nose Housing and hand tighten. 14. With a clean rag, wipe off any oil on the Air Piston Assembly (57), Handle Lower Assembly (54), and Sleeve Lower (51).
PAGE 16
Safety Data SEAL LUBE (P/N: PSA075508P) JAW LUBE (P/N: PRG510-130) HYDRAULIC OIL (P/N: PRG540-130) LUBRIPLATE® 130-AA SUNPAR 107 MOBIL DTE 26 Manufactured by: Fiske Brothers Refining Co. Phone: (419) 691-2491 Emergency: (800) 255-3924 ® ALVANIA EP Grease 1 Prod Code: 71124 Manufactured by: Shell Oil Products Phone: (877) 276-7285 MSDS#: 57072E-5 First Aid: SKIN: Remove any contaminated clothing and wash with soap and warm water.
PAGE 17
Troubleshooting Symptom TOOL FAILS TO OPERATE TOOL NOT RETURNING TOOL LOSING STROKE JAWS SLIPPING ON MANDRELS JAWS FAIL TO OPEN MANDREL STICKING IN JAWS RIVET FAILS TO INSERT INTO Probable Cause Remedy Tool not connected to air supply. Connect to recommended air supply source. OS Valve is in “OFF” position. Slide OS Valve to ON position. Insufficient air pressure. Adjust air supply pressure. Air pressure is too high. Adjust air supply pressure. Tool is low on hydraulic fluid.
PAGE 18
EC Declaration of Conformity We, Emhart Teknologies Tucker Fasteners Limited Birmingham B42 1BP United Kingdom. Declare that: ProSet® 2500 / 2501 ProSet® 2500 / 2501 MCS Conforms to the following standards: EN 292 part 1 and part 2 ISO 3744 ISO prEN 792 part 1 EN ISO 4871 ISO prEN 15744 EN 28662 - 1 EN 12096 Following the provisions of the Machine Directive 98/37/EEC which replaces Directive 89/392/EEC and its amending Directives 91/368/EEC, 93/44/EEC and 93/68/EEC.
PAGE 19
Notes Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel.
