Instruction manual

®
Mandrel Collection System (MCS) – ProSet 2500 MCS

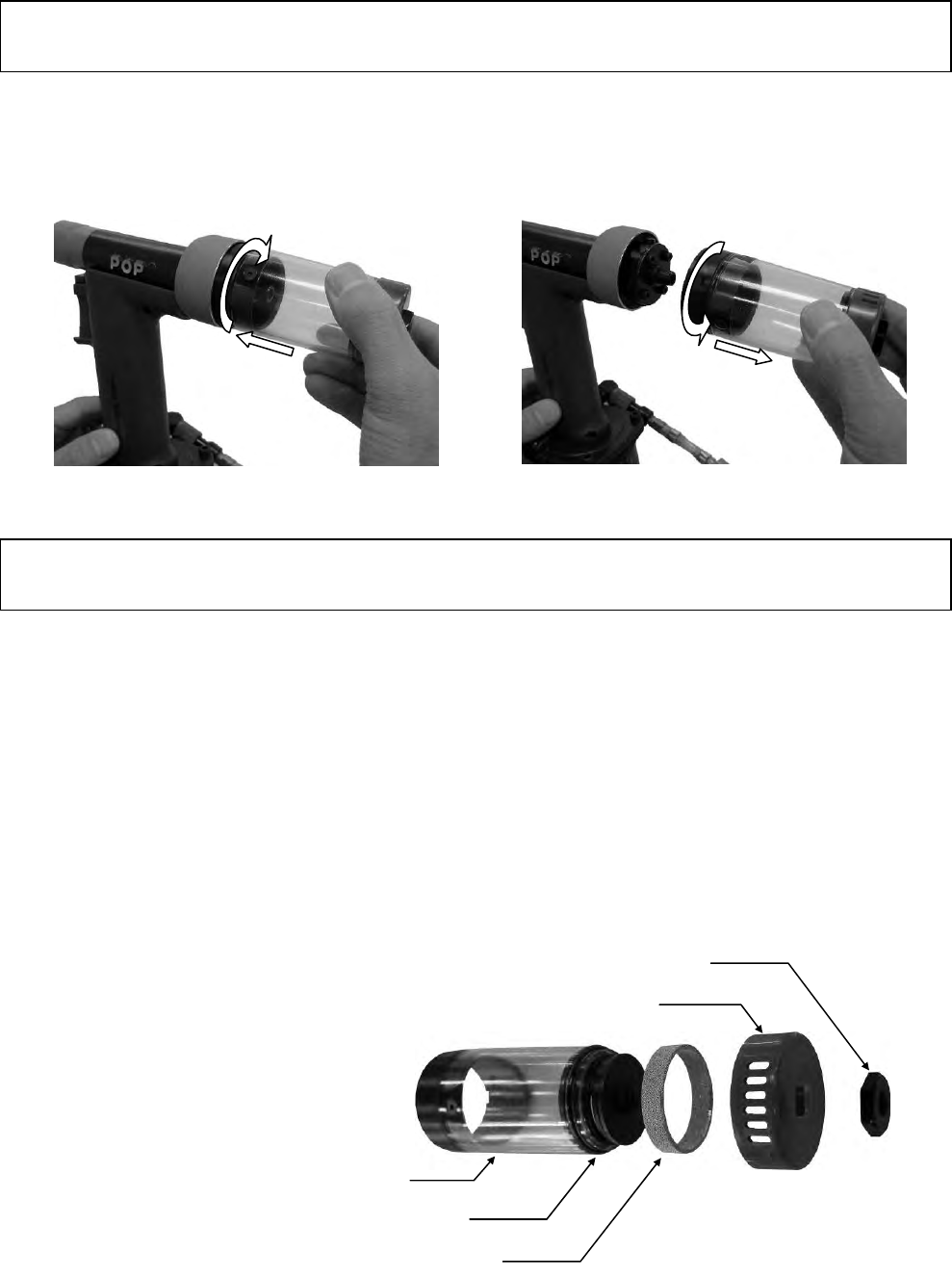

For safety purposes, removing the Collector from the tool automatically turns the MCS suction OFF. Refitting
the Colle
ctor turns the MCS suction ON.
MCS suction ON
MCS suction OFF
Cleaning the Collector Silencer
For optimum performance, the Collector Silencer sho
uld be cleaned at regular intervals as per the
“Preventative Maintenance Schedule”.
! Note: UNPLUG AIR SUPPLY while servicing Collector to avoid INJURY.
1. CLEAN THE COLLECTOR :
Remove and empty the Collector (96) by turning counterclockwise.
Remove the Collector End Nut (106) (17mm wrench) and remove the Collector End Cap (105).
Remove the Collector Silencer (103).
Clean and remove debris from all components.
Collector Silencer (103)
Collector End (104)
Collector End Cap (105)
Collector End Nut (106)
Collector Body (101)
