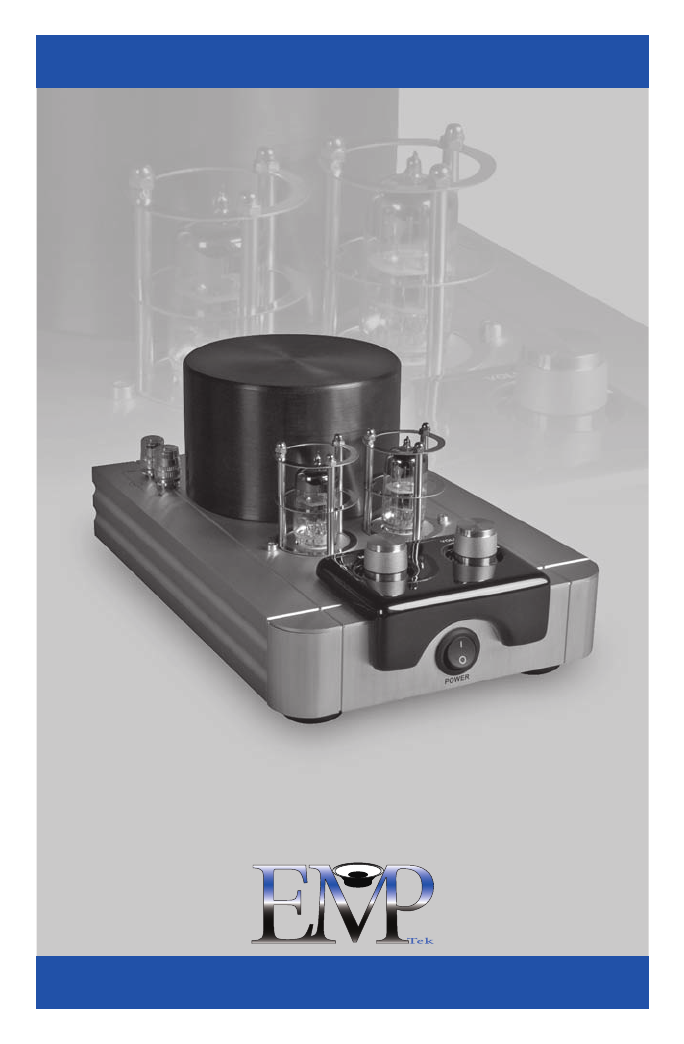

INTEGRATED HYBRID TUBE AMPLIFIER Model VT-40.
Safety Instructions The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
VT-40.2 Integrated Tube Amplifier Front View Back View Maintenance and Cleaning To maintain the amplifier's appearance, it is recommended use of a dry or slightlydamp soft cloth to keep the exterior of the amplifier free from dust, lint or dirt. When cleaning the amplifier, make sure the amplifier is turned off. WARNING: DO NOT apply a damp cloth to the vacuum tubes when they are warm or hot. Damage to the vacuum tubes will result.
Vacuum Tubes Most of the maintenance on your amplifier will involve the vacuum tubes. The tubes used in the VT40.2 are type 6N3. The tubes have a lifespan up to approximately 5 years of outstanding performance depending on usage. Tube wear is gradual and usually goes unnoticed until new replacements are installed. Worn tubes tend to sound flat with reduced punch, clarity and high end.
Amplifier Location Choose a location where air can circulate freely around the amplifier. Do not cover the amplifier. Attaching Speaker Wires When using a banana jack to attach speaker wires to the binding post terminals, loosen the top as shown in step 1, and then insert the speaker wire into the banana jack as shown in step 2.
Using the Amplifier FRONT AND TOP PANELS Power: The power on/off switch is located on the front face of the amplifier. Volume: The volume can be adjusted using the knob on the top of the amplifier. Make sure the volume is set at a low setting when initially setting up the amplifier. Mode: Using the Mode knob on the top of the amplifier you can select from either AUX, MP3 or CD/DVD inputs.
Using the Amplifier (continued) BACK PANEL Variable Line Out: Headphones or to another amplifier or powered subwoofer AUX: Stereo input for any device with line out iPod/MP3: Stereo input for an iPod or MP3 player Input: Stereo input for a CD/DVD or any device with a low-level stereo line out BACK VIEW 6
Specifications Model VT-40.2 Amplifier Type: Integrated Tube Hybrid AC Input: 110V±10%/60Hz Power Output: 40 Watts Per Channel @ 8 Ohms 60 Watts Per Channel @ 4 Ohms Frequency Response: 20Hz–20kHz Distortion (THD): <2% S/N Ratio >80dB Pass Band: 10Hz–100kHz Signal Input (Analog): – AUX (1/8-inch jack) – iPod*/MP3 (1/8-inch jack) – R/L (CD/DVD) (RCA jacks) Line Level Input Sensitivity: 450mV Dimensions: 6-5/8" W x 4-1/2" H x 10-1/4" D (168mm W x 114mm H x 260mm D) Weight: 8 lbs. (3.
Troubleshooting The following chart should help isolate some common problems you may encounter with your amplifier. Some are obvious problems you can remedy, but remember, THERE ARE NO USER SERVICEABLE PARTS INSIDE THE AMPLIFIER. If you cannot identify the cause of the problem using the chart, and are in need of repair, return the amplifier to an EMP Tek authorized service facility. Situation Amplifier does not come on when power switch is on. Probable Cause Power is not connected.
Warranty Engineered Music Products “EMP Tek” warrants the VT-40.2 integrated tube amplifier (the "Product") to be free from original manufacturing defects in materials and workmanship for one (1) year from date of purchase from an authorized EMP Tek reseller. This warranty extends only to the original consumer purchaser. EMP Tek does not warrant goods used in industrial applications. This warranty does not cover any expenses incurred in any removal or re-installation of the product.
382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (801) 991-1308 • Fax: (801) 543-3300 www.emptek.com It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2010 EMP Tek. All Rights Reserved.
