Installation Guide

ManualsBrandsEmtek ManualsHandlesetsEmtek Logan Dummy Set Rustic Modern Bronze Grip by Grip Handleset

Optional Dead

Bolt Collar

For Brass Only

Optional Dead

Bolt Collar

For Brass Only

2-1/8" Dia.

Bores

2-3/8"

or

2-3/4"

5-1/2"*

2-1/8" Dia.

Bores

2-3/8"

or

2-3/4"

No less

than

4-1/2"

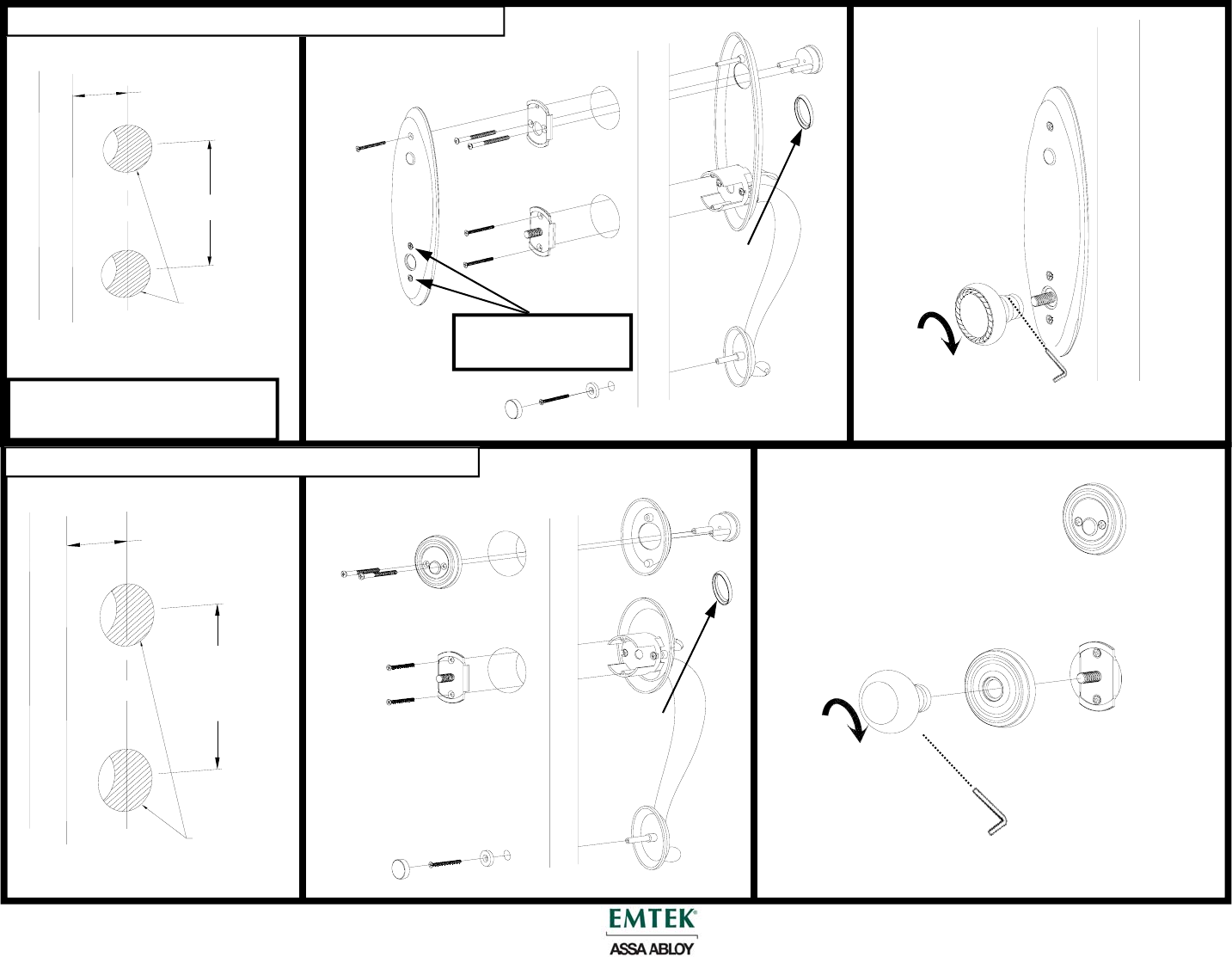

Installation Instructions-Tubular Monolithic Entry Set - Dummy

*Marietta 6 style locks have 6” center

to center bore spacing.

Installation Instructions-Tubular Sectional Entry Set - Dummy

IN4-ENTSETDUMY

REV. 03/26/08

IMPORTANT:

Do not remove screws

AFTER LOCK HAS BEEN INSTALLED

Tighten Set Screws with Allen Wrench

AFTER LOCK HAS BEEN INSTALLED

Tighten Set Screws with Allen Wrench
