Specification Sheet
Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com
Standard Door Thickness: 1¾”
Standard Components:
• 1 3⁄8” Threaded Cylinder
• 2” Long Spindle
• 2” Top Rosette Screw
• 1 ½” Bottom Rosette Screw
• Thumbpress
• Strikeplate
Extended Door Thickness: 1 ⅞”- 2 ¼”
Extended Components:
• 1 ½” Threaded Cylinder
• 2” Long Spindle
• 2 ½” Top Rosette Screw
• 2” Bottom Rosette Screw
• Thumbpress
• Strikeplate
Extended Door Thickness: 2 ⅜”- 2 ¾”
Extended Components:
• 1 ¾” Threaded Cylinder
• 2 ¼” Long Spindle
• 2 ½” Top Rosette Screw
• 2” Bottom Rosette Screw
• Extended Thumbpress
• Extended Strikeplate
Door Thickness Specifications
1

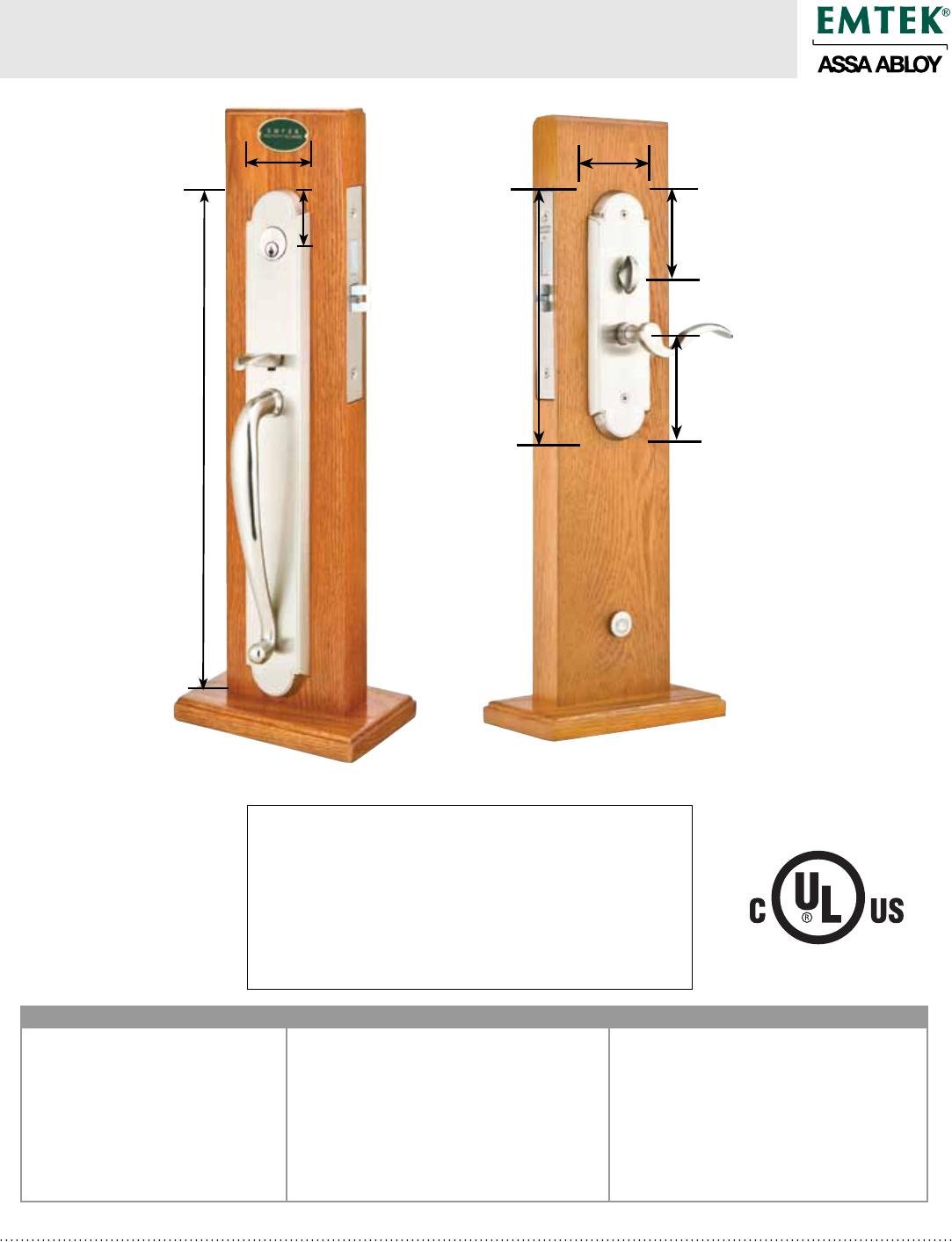

Albany Trim Style
Part # UL 3350
19
5
⁄16”
2
1
⁄8”
2
13
⁄16”
9
3
⁄4”
2
13
⁄16”
3
5
⁄16”
4
3
⁄16”
Additional Dimensions: (Part# UL 3350)
• Exterior Projection is 2 ¾”
• Interior Projection Depends on Handle Style
• Overall Grip thickness: 1¼”
• Clearance between door & grip is 2”
• Plates thickness: ½”
Same dimensions for dummy function
Entrance Handlesets - Brass Albany UL Mortise
