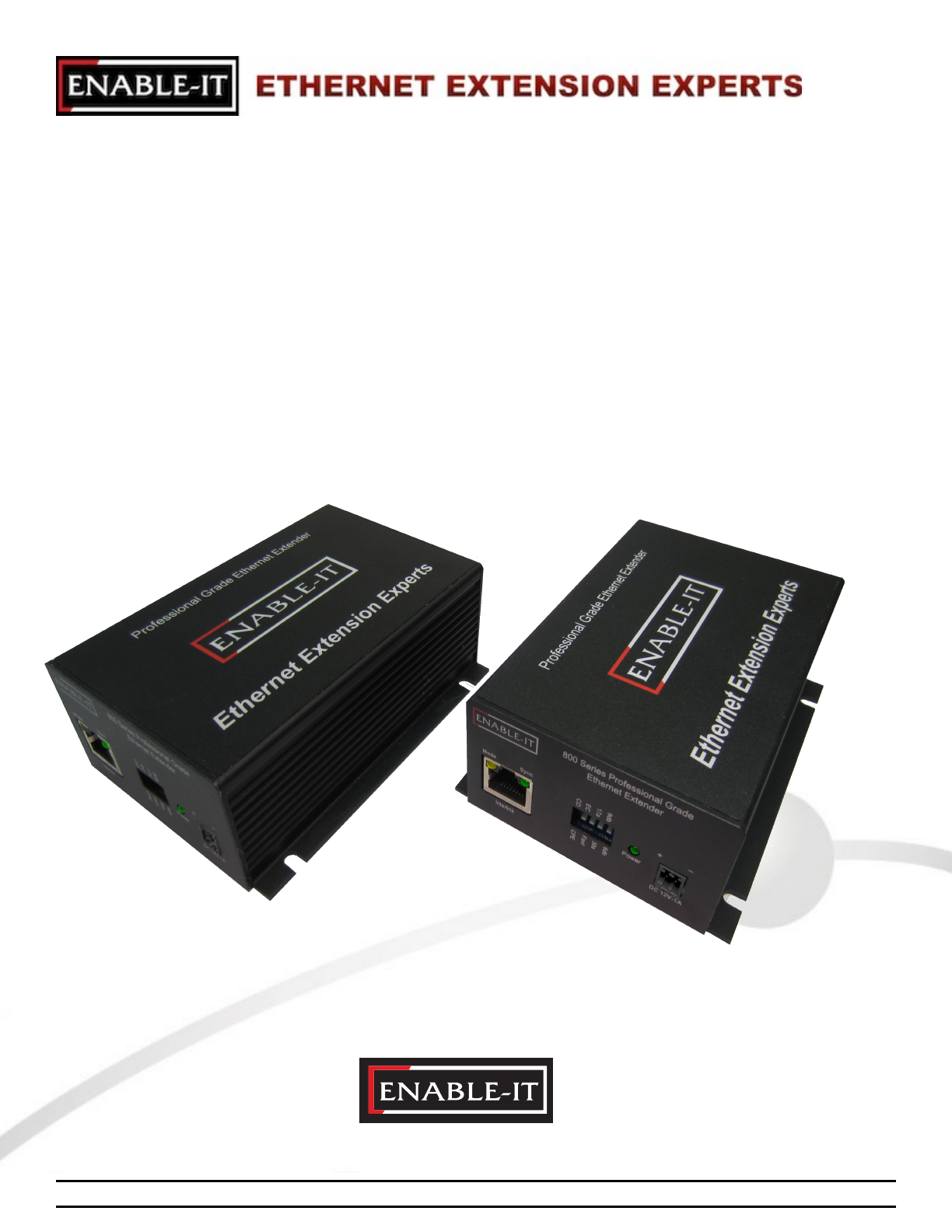

! Enable-IT 860 PRO Rev C Gigabit Professional Grade Ethernet Extender Kit Quickstart Guide All Rights Reserved © 1997 - 2015 Enable-IT™, Inc.
INSTALLING THE 860 PRO ETHERNET EXTENDER KIT The Enable-IT 860 PRO Ethernet Extenders have a distance restriction of 6,000ft (1,829m) over 1-pair of Category 2, up to 4-pair CAT5e / CAT7, wiring from device extension to device extension. Therefore a site survey of the wiring and installation planning are highly recommended. For highest performance use CAT5e rated or higher spec for interlink wiring.
Performing the On-Site Installation After removing the Enable-IT 860 PRO Ethernet Extender Kit from the box, and performing the Out Of The Box Testing (OOTBT), all that remains to install the unit on-site is to mount the unit, build the interconnect wiring, add voice lines if needed, and attach the LAN device cabling with the provided Ethernet Patch cords. Mounting the Enable-IT 860 PRO Ethernet Extender Units The Enable-IT 860 PRO extended Ethernet solution is designed for quick wall mounting.
Troubleshooting First examine the backbone wiring pair and make sure you have solid connections. The Interlink Sync LED will be lit solid Green with rapid pulsing on each 860 PRO unit to show proper connection and pairing. If the Interlink Sync LED Link is flashing slow to fast and never goes solid…. Then follow the steps below: 1) Make sure your wiring is straight through and not connected to any Telco punch down blocks; If so remove from the block and use Telco butt clips to bridge wire.
Performance Settings (DIP Switch) If you are experiencing performance issues with your Ethernet connection you may use the following DIP switch settings to adjust your application. For DIP switch 2-4 you must toggle both symmetrically, in other words the CO and CPE must match. If you turn DIP switch 3 Up (Off) on the CO, then you must do so for the CPE and vice-versa.
TECHNICAL SUPPORT Enable-IT, Inc.’s Customer Care Team support is available directly to customers and distributors. All support requests are processed through the online support portal. This allows us to provide assigned support ticket numbers in order to bring closure to any technical issues. Online Technical Services The Enable-IT Support Portal is available 24/7 to open a ticket or check the status of one.
ENABLE-IT, INC. LIMITED WARRANTY Enable-IT, Inc. warrants the conditions. Enable-IT 860 PRO kit solely pursuant to the following terms and 1.ENABLE-IT PRODUCT WARRANTY. a. Express Warranty. Enable-IT warrants to the original purchaser of the Product ("you" or the "End User") that, for the four (4) year period commencing on the date the Product was purchased (the “Warranty Period"), the Product will be substantially free from defects in materials and workmanship under normal use and conditions.
e. Warranty Disclaimers. THE EXPRESS WARRANTY SET FORTH ABOVE IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED. ENABLE-IT DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS. NO PERSON (INCLUDING WITHOUT LIMITATION, ENABLE-IT’S EMPLOYEES, AGENTS, RESELLERS, OEMS OR DISTRIBUTORS) IS AUTHORIZED TO MAKE ANY OTHER WARRANTY OR REPRESENTATION CONCERNING THE PRODUCT.
CONTACT US Sales and Customer Care: Toll Free US and Canada 888 309-0910 866 389-8605 Fax Other International +1 702 924-0402 +1 702 800-2711 Fax E Mail sales@enableit.com support@enableit.com RMA Support: All Rights Reserved © 1997 - 2015 Enable-IT™, Inc. http://support.enableit.
