Ordering information: Class 1 Sub-D Connector Kits (500 inserts min.)
Ordering information: Class 3 Sub-D Connector Kits (100 inserts min.)

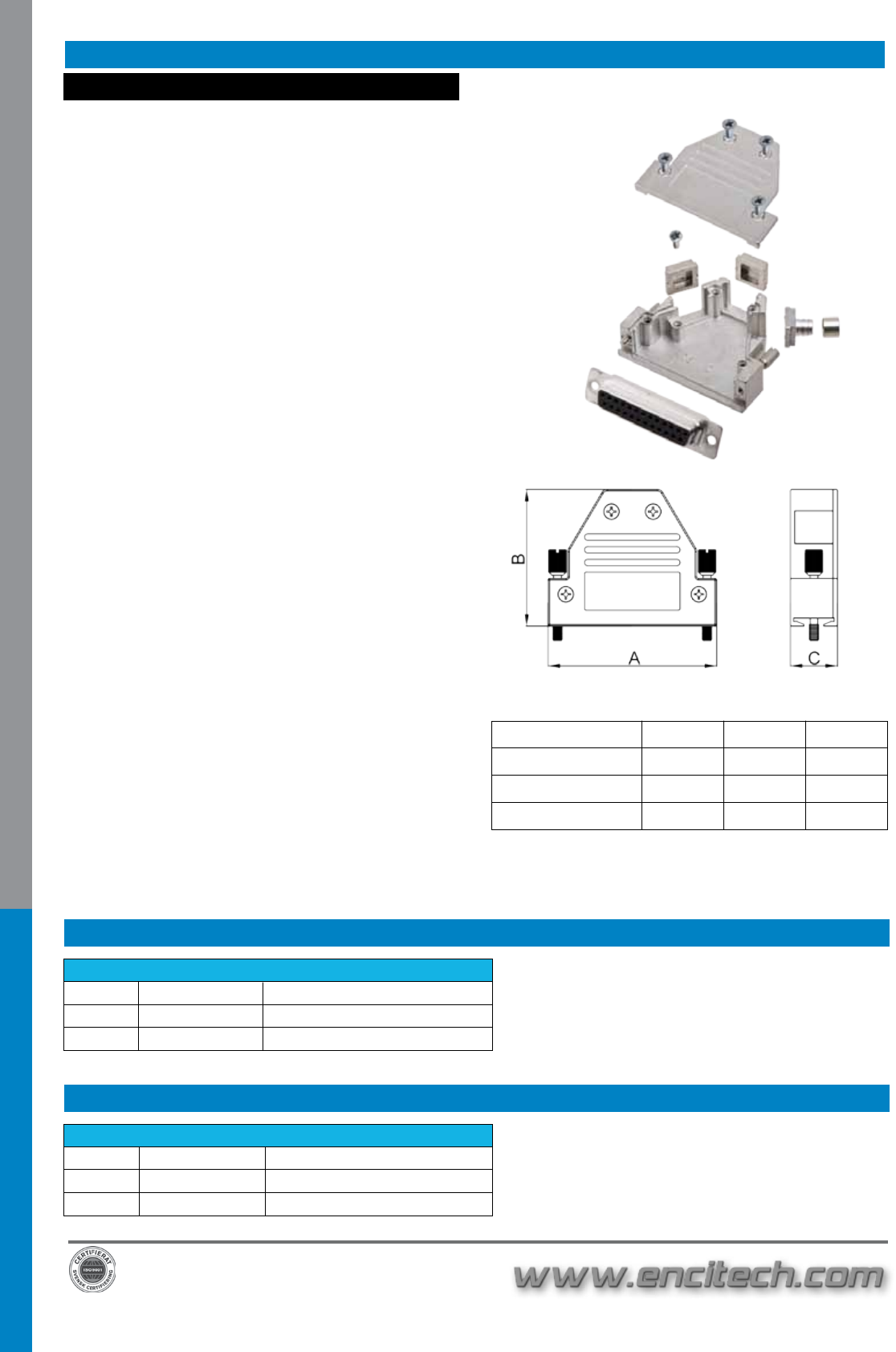

Full Metal Hoods DCRP + D-Sub Solder Cup Female
D-Sub Hood:
Material: Zink, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry: 9 way Top Entry Only
15 way Top Entry Only
25 way Side - Top - Side
Strain relief: Crimping Flange 6,5 - 7,5 mm
Crimping Sleeve 8,0 - 9,0 mm
- Other options on crimping
flange and sleeve on request
Thumbscrews: UNC 4-40
D-Sub-Hood
TECHNICAL SPECIFICATIONS
Features:
● 360° EMI shielding
● CrimpingFlenge
● Supportsalltypesofcables
● SupportsalltypesofD-Sub
● Availableinsizes9-15-25
● CrimpingFlange3,0-10,0mm
● CrimpingSleeve5,0-17,0mm
SizeDCRP DimA DimB DimC
 9-way 32,2 42,0 15,0
 15-way 40,8 42,3 15,0
 25-way 54,0 42,3 15,0
Female D-Sub Solder Cup:
Insulator: PBT,Black,UL94V-0
Shell: Steel, Tin Plated
Contact pins: Copper Alloy
Stamped&FormedPins Class3,100insertsmin.
MachinedContactPins: Class1,500insertsmin.
Contact Plating: Selective Gold over Nickel
Operating Temperature: -55°C to +105°C
Withstandingvoltage: 1000Vfor1minute
Insulatorresistance: 1000MΩmin.
Size: P/N-Kitted: ProductCode-FEMALEConn.Kit
9-way  6355-0881-11 DCRP09-DBS-CF65-CS80-K
15-way 6355-0881-12 DCRP15-DBS-CF65-CS80-K
25-way 6355-0881-13 DCRP25-DBS-CF65-CS80-K
Size: P/N-Kitted: ProductCode-FEMALEConn.Kit
9-way  6355-0881-31 DCRP09-DMS-CF65-CS80-K
15-way 6355-0881-32 DCRP15-DMS-CF65-CS80-K
25-way 6355-0881-33 DCRP25-DMS-CF65-CS80-K
