Enclume DR4 Classic Oval w/Grid

Enclume Décor racks are the ultimate in

quality, design, strength and function.

Congratulations for owning one of the finest

storage racks made.

WARNING:

READ ALL OF THE INSTRUCTIONS BEFORE ASSEMBLING

AND USING YOUR RACK.

Enclosed you willfind everythingneed ed forthe assembly

and u se ofyou rpotrack.Two people make assembly

and installationeasier.The parts and hard ware inclu ded are:

Hardware included:

2 –SmallC eilingH ooks

2 –'S'H ooks 2"

2 -6”C hain

2 –5/16”x 7 /8 ”B u tton head Screws

4 –5/16”x 1/2”B u tton H ead Screws

2 –5/16”H ex N u ts

1 -3/16" H ex Key

Toggle Kit

Components included:

4 –UprightA rms

1 –TopB ar

1 –O valRackB od y

6 -Grid brackets -EGB

12 -P othooks -EP H S

1 -Grid

ASSEMBLY AND INSTALLATION INSTRUCTIONS

1) L ayrackbod y(oval)on firm su rface.P rotectsu rface withcorru gated box if necessary.

2) Id entifythe fou r" UprightA rms." Usingthe 5/16" x 1/2" bu ttonhead screws attachthe u prights to the ovalas shown.D onotfu lly

tighten screws atthistime.

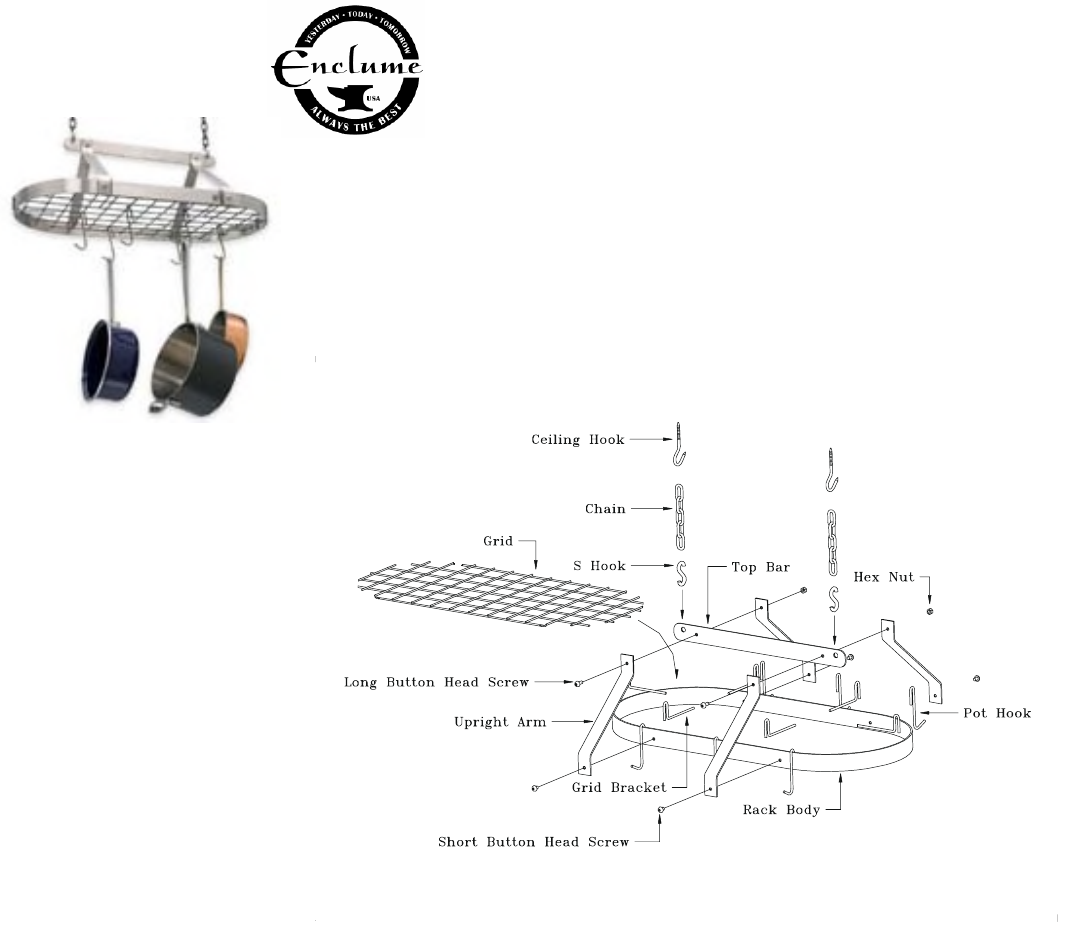

3) L ocate the " TopB ar" and attachto the fou r" UprightA rms" as shownind rawingu singthe two 5/16" x 7 /8 " bu tton head screws

and the two 5/16" hex nu ts.Tighten allscrews atthis time

4) Y ou rRackmaybe carefu llyanchored into solid wood of the ceilingjoistorbeams.C arefu llymeasu re the areawhere the rackis

to be hu ngand installthe ceilingscrew hooks (approximately16" apart).If you are mou ntinginplasterboard ,u se the Toggles and

follow the instru ction provid ed inthe kit.

5) P lace the six grid brackets overthe sid es ofthe rack,twooneachend ofthe ovaland fou rju stinsid e eachofthe u prightarms

withthe straightend of the brackets facingtoward sthe insid e ofthe rack.N extplace the grid ontopof the grid brackets.(See

note and d rawingnextpage).

6) Insertthe " S" hooks into eachofthe remainingholes in the topbarand the otherend throu ghone end of the chain.C arefu llylift

you rrackinto place and attachthe otherend of the chain onto the ceilinghooks.

7 ) H angyou rheavieritems on the straightportionofthe rackbod yorthe centerof the grid area.

8 ) A llofou rhammered steelracks are finished withanind u strialwax d esigned to give yearsofprotectionto the rack.C leaningis

easilyd one withad ampcloth.D rythorou ghlyaftercleaning.Ifatou ch-u pis everneed ed we recommend a"P led ge" like wax

prod u ct

C ontinu ed

5/16" x 7 /8 "

5/16" x 1/2"
