Clean Printer Job Queue
The Clean Printer Job Queue allows users to
clean the
pending print jobs that w
ait
for printing.
T

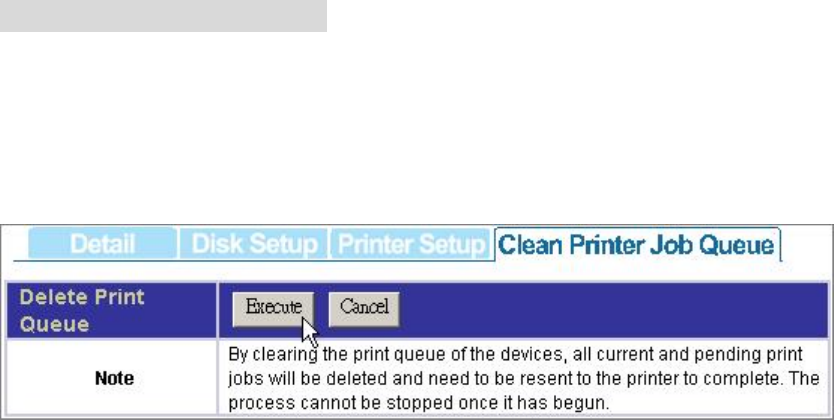

o perform cleaning printer job queue, click the “
Exec
ute
” button and click “
Yes
” to
confirm.
