VLAN Configuration

13-12 VLAN Operation and Network Applications

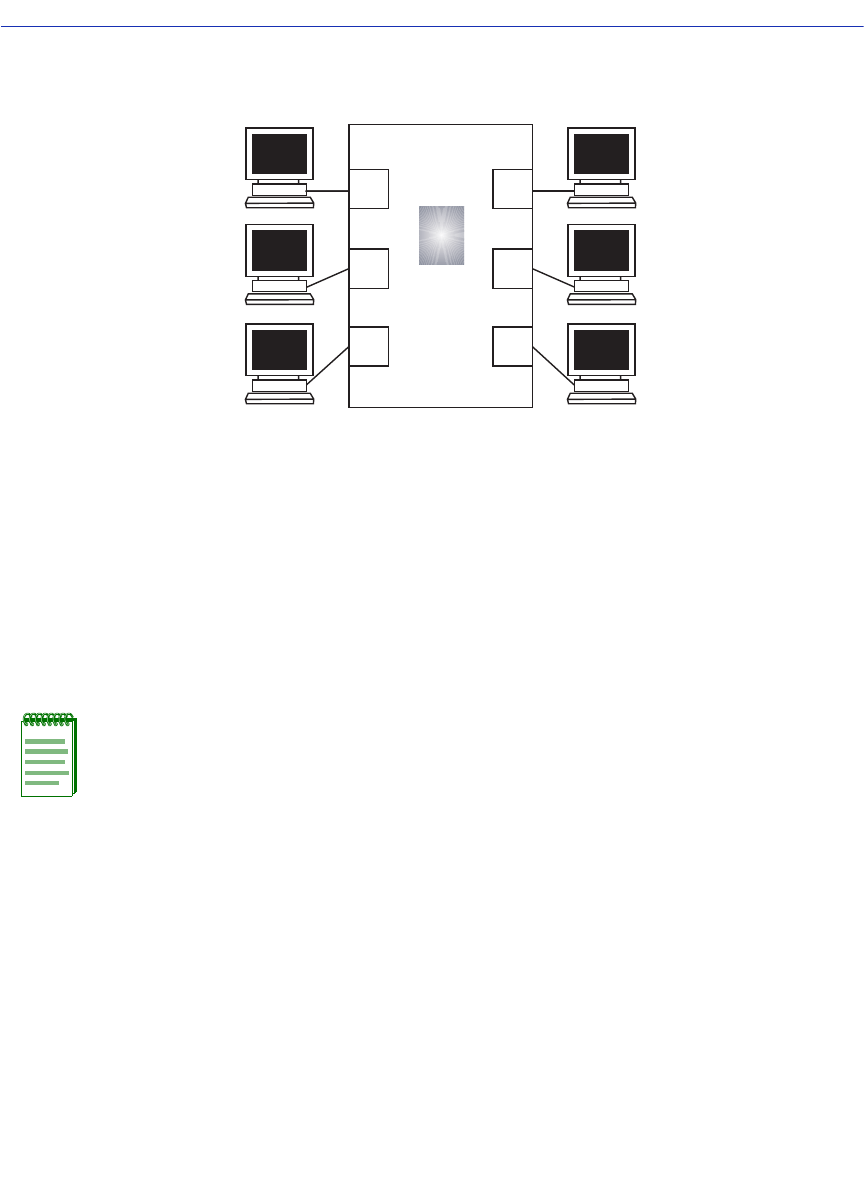

Figure 13-3 Switch Management with Only Default VLAN

13.8.3 Switch with VLANs

If the switch is to be configured for multiple VLANs, it may be desirable to configure a

management-only VLAN. This allows a management station connected to the management VLAN

to manage all ports on the switch and make management secure by preventing management via

ports assigned to other VLANs.

Figure 13-4 shows an example of a switch configured with port 1 on the Management VLAN port

and the other users belonging to VLANs A, B, and C.

NOTE: The switch’s virtual Host Data Port, like any other port, has VLAN membership

that may be configured. For manageability of the device to be maintained, this port must

be a member of the same VLAN as the port to which the management station is

connected.

3 6

802.1Q Switch

2599_14

NOTE: All ports, including the virtual Host Data Port, are

members of the default VLAN. Therefore, any station

shown may be used as the management station.

Host

Data

Port
