Data Sheet

EnzyTek Technology, Inc.
7F, No. 35, Hsueh Fu Rd., Hsinchu 300,
Taiwan , R.O.C.
TEL：[phone] FAX： [phone]
2/25
EnzyTek Bluetooth
®
Class II Module – BTA-QC3034-3M
Product Description

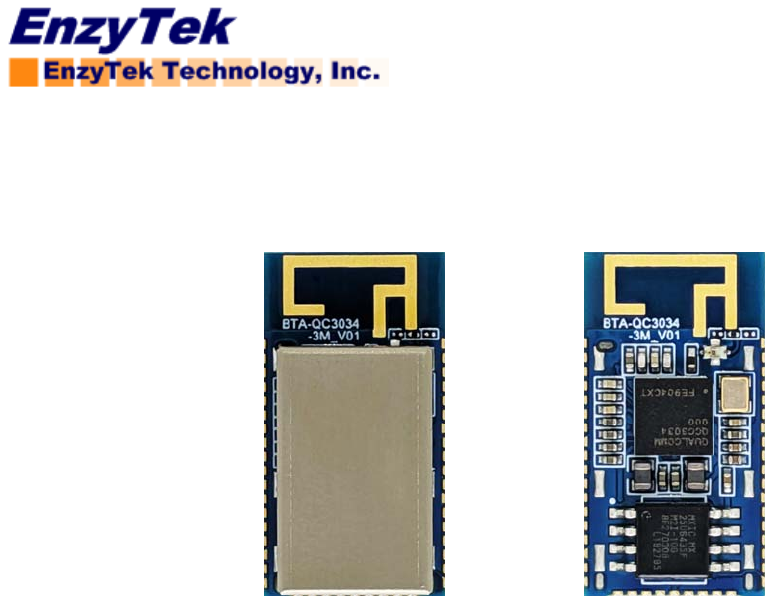

BTA-QC3034-3M is a highly integrated small form factor (24.5x13 mm
2
) Bluetooth class II module which adopts
Qualcomm QCC3034 as core chip for Bluetooth operation.
QCC3034 VFBGA is a system on-chip (SoC) with on-chip Bluetooth, audio and programmable application
processor. It includes high-performance, analog, and digital audio codecs, Class-AB and Class-D headphone
drivers, advanced power management, Li-ion battery charger, light-emitting diode (LED) drivers, and flexible
interfaces including inter- integrated circuit sound (I²S), inter-integrated circuit interface (I²C), universal
asynchronous receiver transmitter (UART), and programmable input/output (PIO).
